In industrial projects, procurement and maintenance teams often face challenges with valve sealing failures or improper installations. A poorly installed ball valve can lead to leakage, downtime, and increased maintenance costs. This guide provides engineers and project managers with a professional, step-by-step approach on how to correctly install a ball valve, ensuring long-term performance and reliability in demanding applications.

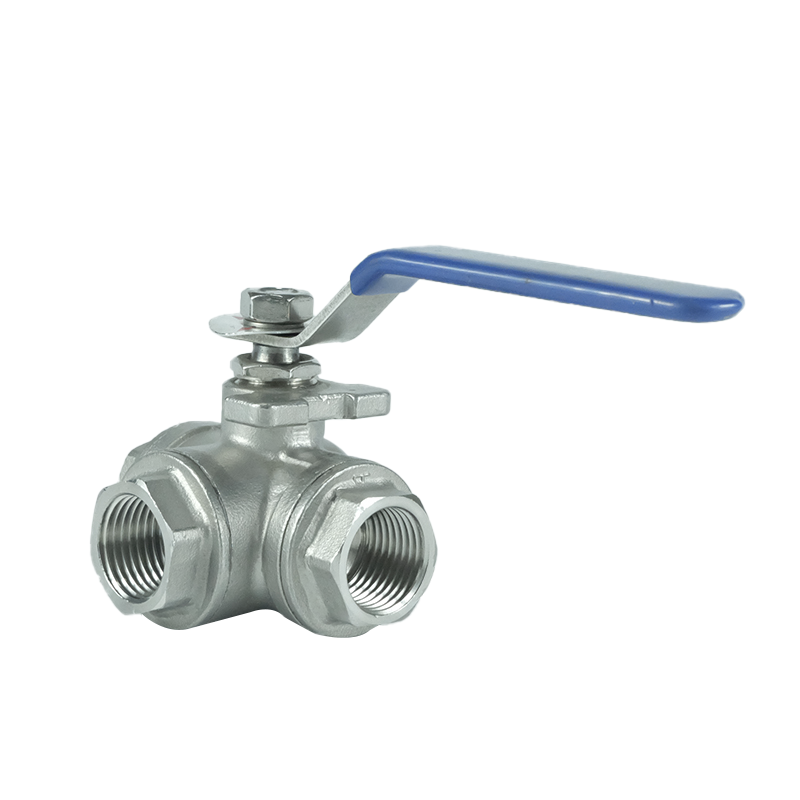

A ball valve is a quarter-turn shut-off valve that uses a perforated, hollow ball to control the flow of liquids or gases. Its compact structure, fast operation, and tight sealing performance make it one of the most widely used valve types in industries such as oil & gas, petrochemicals, and water treatment. According to ISO 17292:2015, ball valves are designed with specific pressure ratings, sealing materials, and testing standards to ensure operational safety. Understanding its construction — including stem, ball, seats, seals, and end connections — is the first step to a successful installation.
Tip for engineers: Always verify that the selected valve complies with CE or ISO certifications before installation, as this ensures compatibility with international project requirements.
Before starting installation, engineers should prepare all necessary tools and components. Typically, the required tools include two pipe wrenches, PTFE thread seal tape, torque wrench, gasket sets, and appropriate pipe fittings. For flanged connections, ensure proper gaskets and bolting sets that meet ASME B16.5 standards. Additionally, engineers should confirm the valve’s pressure class (PN16, Class 150, etc.) matches the system specification. Preparing these items in advance not only reduces downtime but also prevents incorrect assembly during the installation process.
Common mistake to avoid: Using incorrect gaskets or bolts can compromise the sealing integrity, leading to costly system leaks.
Shut down the pipeline, release pressure, and drain residual fluids before installation. This step is crucial for ensuring workplace safety and preventing contamination. For steam or chemical pipelines, engineers should conduct purging or flushing operations. Always wear appropriate PPE during this stage.
Check the ball valve for manufacturing defects, debris, or shipping damage. Inspect the ball, seals, and stem for proper alignment. Ensure the valve bore is free from dirt or metal shavings that could impair sealing performance.
For threaded ball valves, apply PTFE tape or pipe sealant evenly on the male threads. Tighten carefully with pipe wrenches, avoiding over-torque that could crack the housing. For flanged ball valves, insert the correct gasket, align the flange faces, and tighten bolts in a star-pattern sequence using a torque wrench. This ensures uniform sealing pressure.
Once installed, operate the valve through multiple open/close cycles to verify smooth rotation of the ball and effective sealing. Conduct a hydrostatic test at 1.5x the rated pressure in line with API 598 requirements. Ensure there are no leaks around stem, body, or end connections.
Engineer’s Note: Always follow the torque values recommended by the valve manufacturer to avoid premature wear or leakage.
Ball valves are extensively used across sectors including oil refineries, natural gas distribution, power plants, and water treatment. For instance, a petrochemical facility in the Middle East replaced old gate valves with stainless steel ball valves in a high-temperature pipeline, reducing maintenance frequency by 25% and improving safety compliance. Their quick shut-off capability makes them particularly suitable for emergency systems where reliability is critical.
Procurement reminder: Consider long-term maintenance efficiency when selecting valve types, not only the initial cost.
Best practices include verifying valve orientation, ensuring correct sealing materials (PTFE, graphite, or metal seats depending on media), and conducting proper torque sequencing. Common mistakes to avoid are: misalignment during flange connection, mixing incompatible materials, and neglecting hydrostatic testing. According to U.S. Department of Energy, improper valve installations are among the top causes of industrial fluid system inefficiencies.
Tip for project managers: Always include installation guidelines in procurement contracts to avoid disputes with contractors during commissioning.
When sourcing ball valves for large-scale projects, procurement managers should evaluate certifications (CE, API, ISO 9001), delivery schedules, and warranty periods. At DKV Valve, our products are backed by a 24-month warranty and manufactured under ISO-certified quality systems. With over 40 years of experience and supply to 62+ countries, we understand the challenges procurement engineers face — from strict delivery deadlines to documentation requirements (EN10204 3.1 material certificates, pressure testing reports, country of origin certificates).
Checklist: Ensure the supplier provides datasheets, test reports, and spare part availability before finalizing purchase orders.
