Introduction
Pneumatic angle seat valves are widely used in modern industrial automation due to their durability, fast switching speed, and ability to handle aggressive media.
Designed for both liquid and gaseous applications, these valves provide reliable shut-off and flow control, even under challenging conditions such as high temperature or high pressure.
In this article, we explain the working principle of pneumatic angle seat valves, their key benefits, and common applications in industrial systems.
How a Pneumatic Angle Seat Valve Works

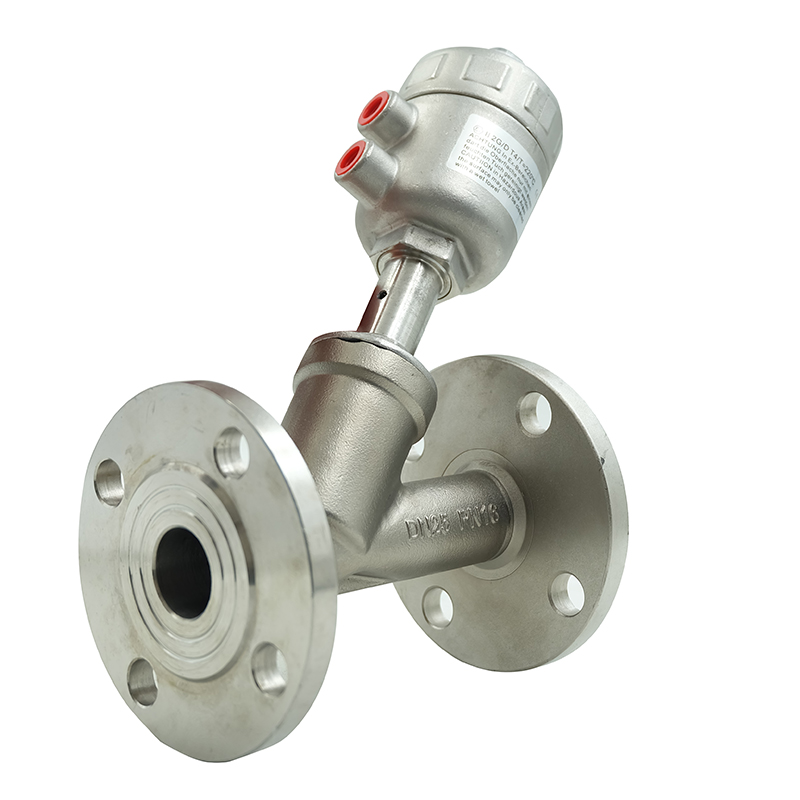

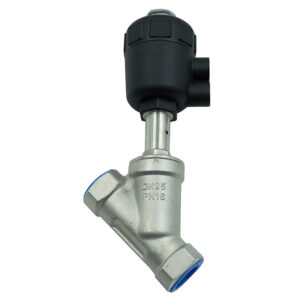

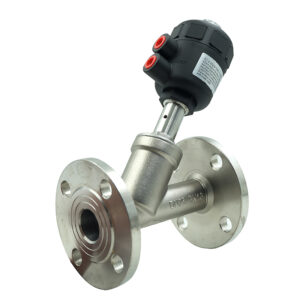

A pneumatic angle seat valve consists of a valve body with a seat positioned at an angle, and an actuator controlled by compressed air. When compressed air enters the actuator, the piston moves, lifting the valve stem and opening the flow path.
When air pressure is released, a spring pushes the stem back, closing the valve.
This simple mechanism ensures:
- Fast response times for opening and closing.
- High durability with a long service life.
- Reliable sealing even in demanding applications.
Advantages of Pneumatic Angle Seat Valves
- High flow rates: Angle seat design minimizes pressure loss.
- Wide temperature range: Suitable for hot water, steam, and aggressive fluids.
- Long cycle life: Engineered for millions of switching cycles.
- Versatility: Available in stainless steel and other materials for various industries.
- Automation-friendly: Easily integrated into automated control systems.
Applications of Pneumatic Angle Seat Valves
Due to their robust design, pneumatic angle seat valves are applied in a wide range of industries:
- Food and Beverage: For clean and hygienic processing systems.
- Chemical Processing: To handle aggressive or corrosive fluids safely.
- Pharmaceutical: For sterile and high-precision fluid control.
- Water Treatment: In filtration and fluid distribution systems.
- Steam Applications: Reliable in boiler and heating systems.
Internal Linking Suggestions
External References
Conclusion & Call to Action
Pneumatic angle seat valves are an excellent choice for engineers looking for fast,
reliable, and long-lasting valve solutions in automated systems. Their ability to handle
high pressure, temperature, and aggressive media makes them a top choice for industries
worldwide.
📩 Contact DKV Valve today to request datasheets, pricing, or a custom solution for your project.
