Description

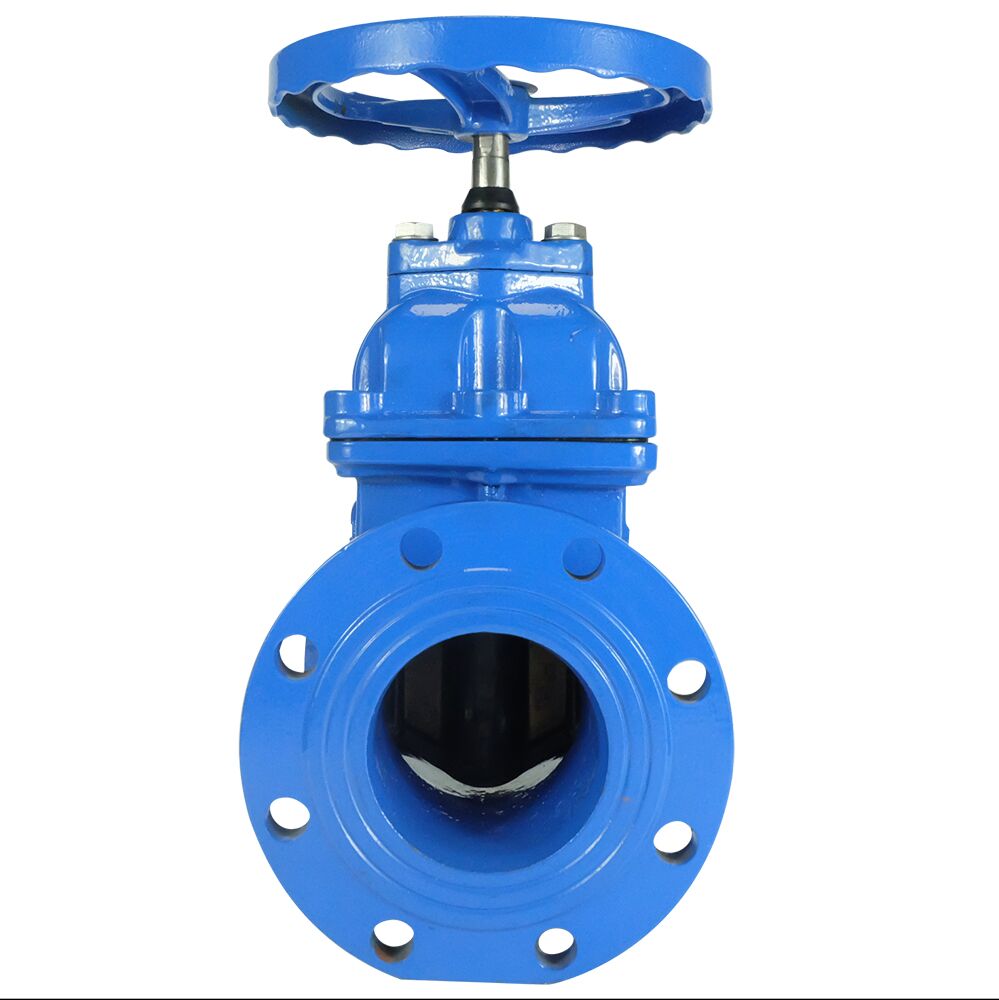

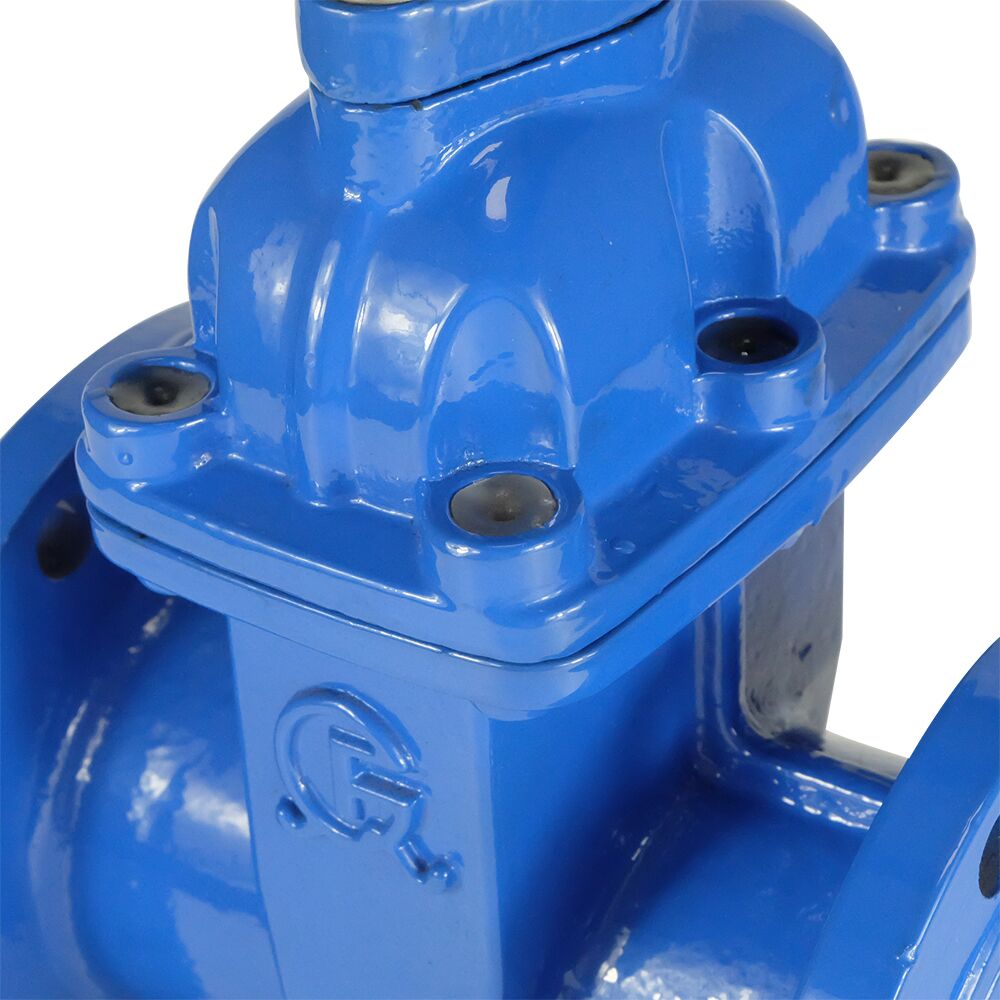

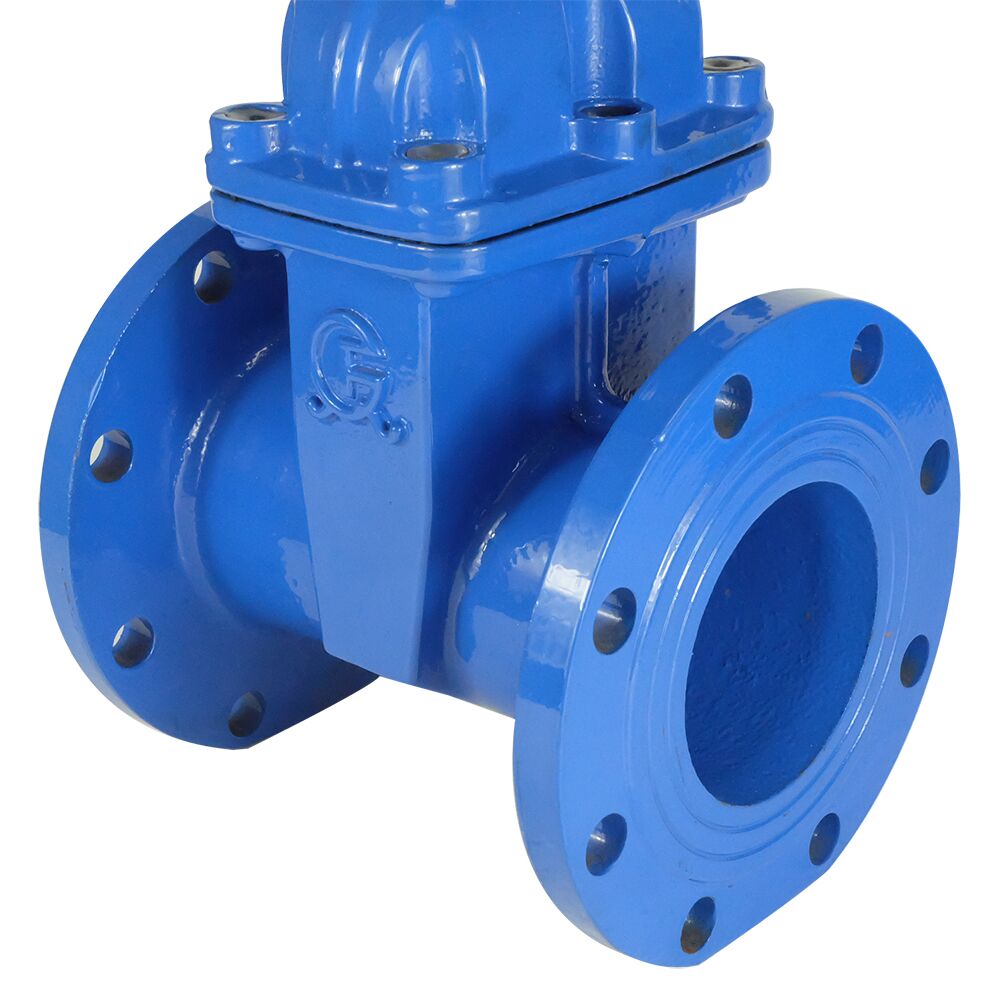

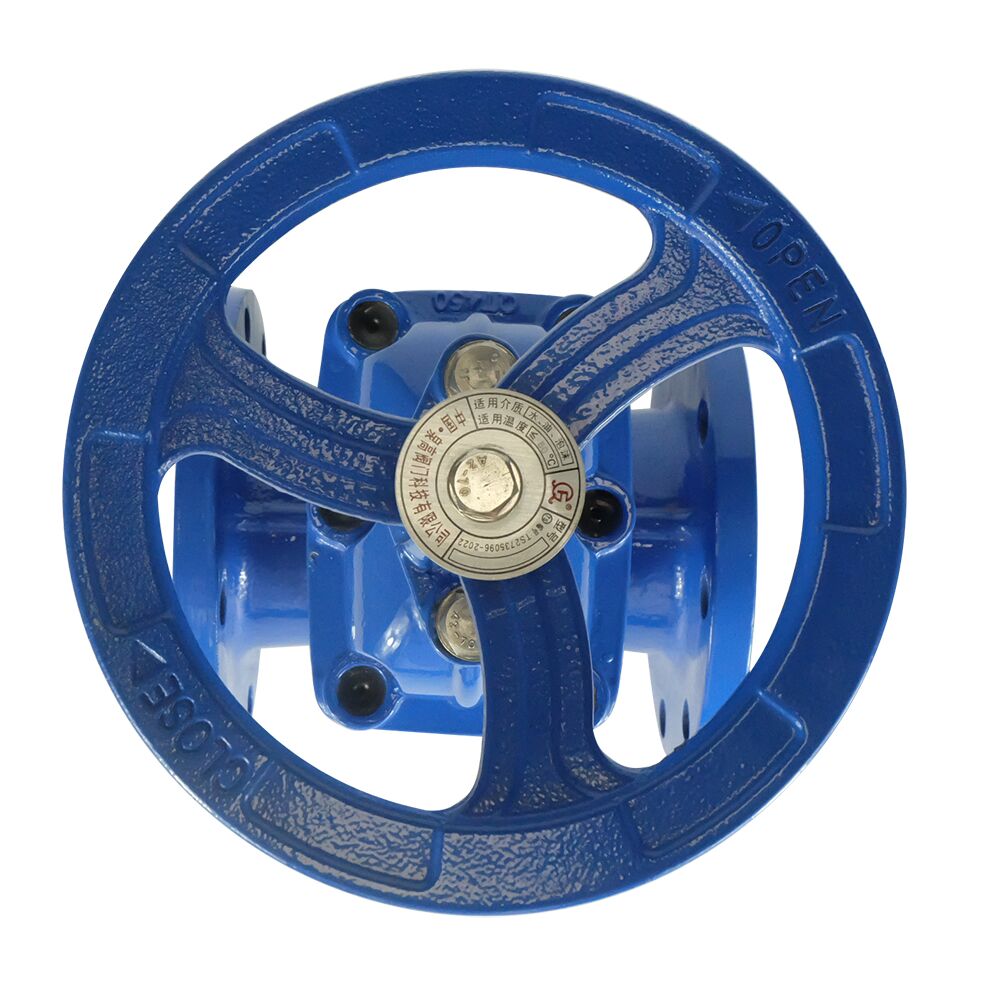

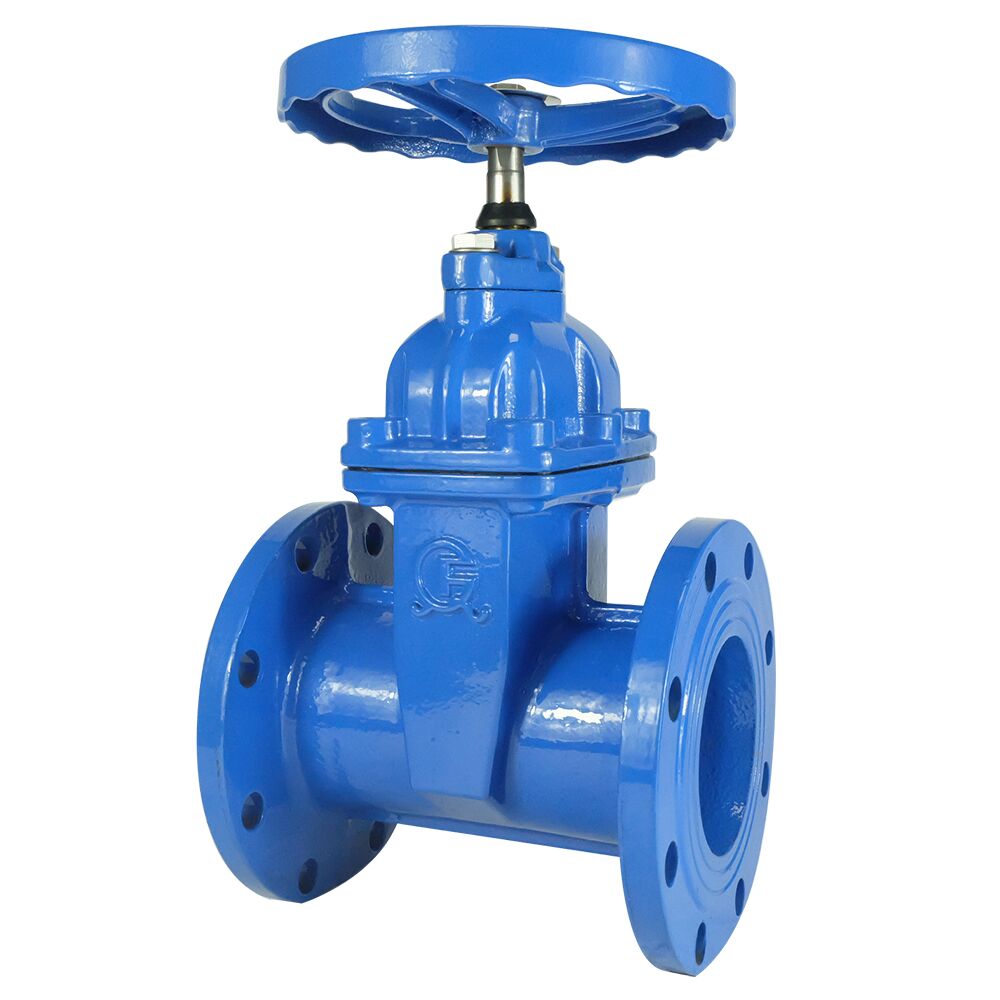

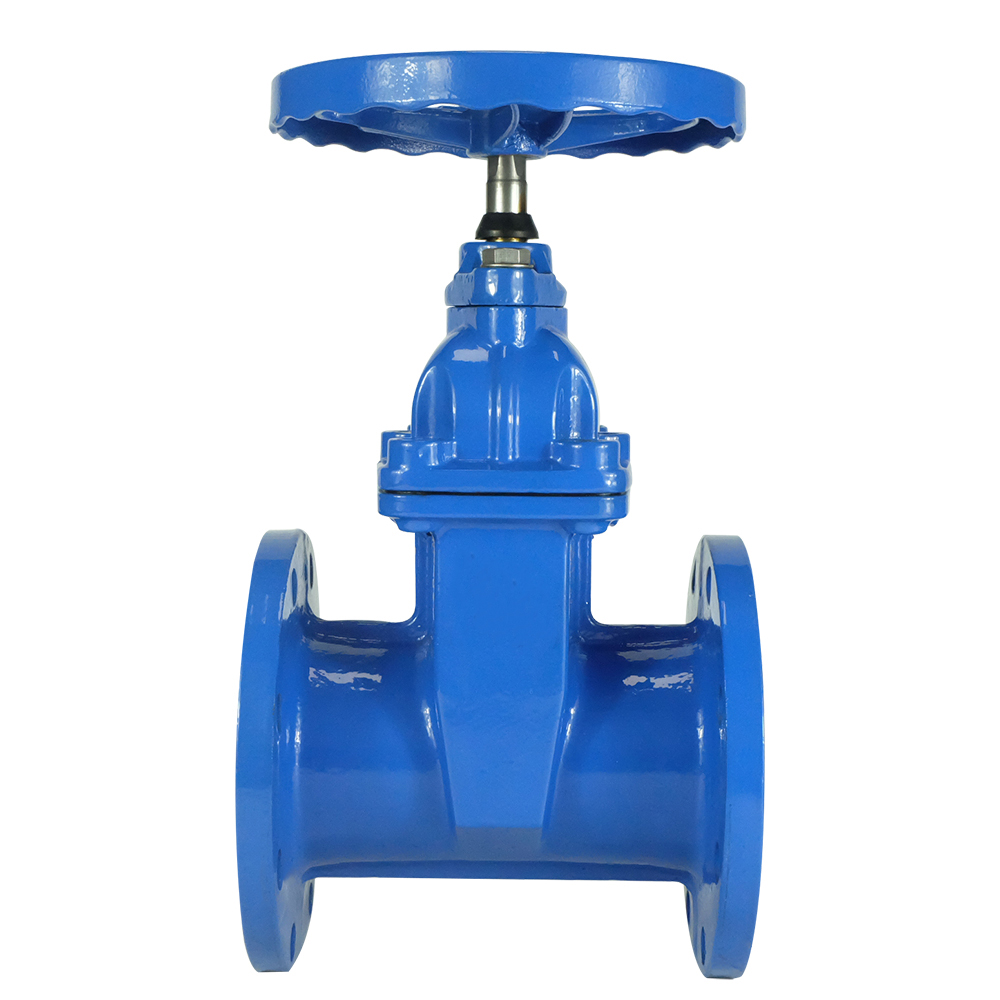

DKV Gate Valves
DKV gate valves provide reliable on/off control with a straight-through flow path that minimizes pressure loss. Their robust construction and flexible installation make them an excellent choice for demanding applications in oil & gas, industrial gases, and equipment manufacturing.
To achieve the best results, gate valve selection should take into account pipeline diameter, construction material, pressure class, and end connection type.
item | value |
structure | Gate |
application | General |
place of origin | China |
power | Manual |
customized support | OEM, ODM |
port size | DN50-DN800 |
warranty | 1 year |
temperature of media | Normal Temperature |
brand name | DKV |
media | Water |
Body material | Ductile iron，WCB, SS |
Medium | Water |
Working Temperature | ≤200℃ |
Pressure | PN1.0-1.6MPa |
Size | DN50-DN800 |
Type | Gate Valves |
Body material: Ductile lron
Stem: Non-Rising Stem
Size: DN50-DN900
Connection : Flange
Pressure range: PN16
Temperature range: -10 to 110’C
Application: Water,Sewage
