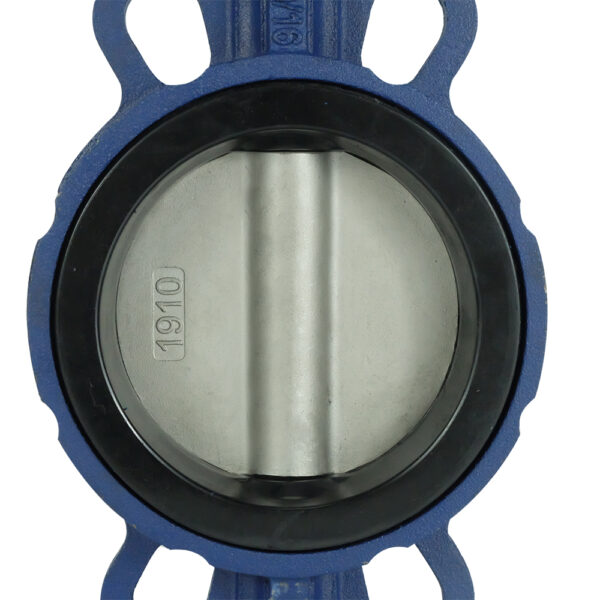

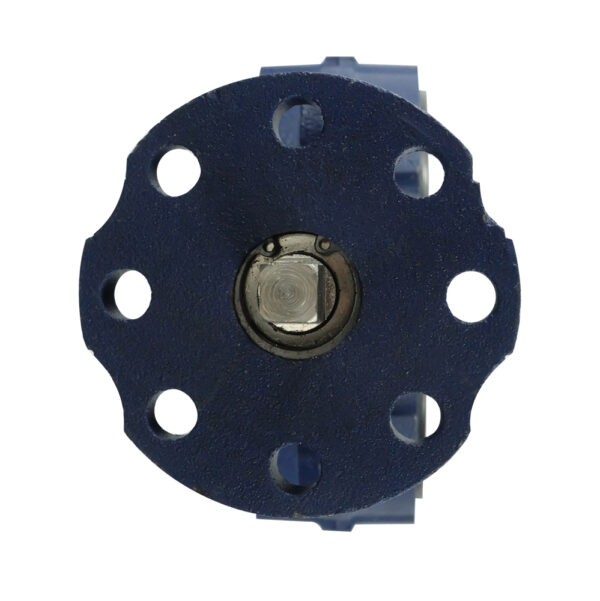

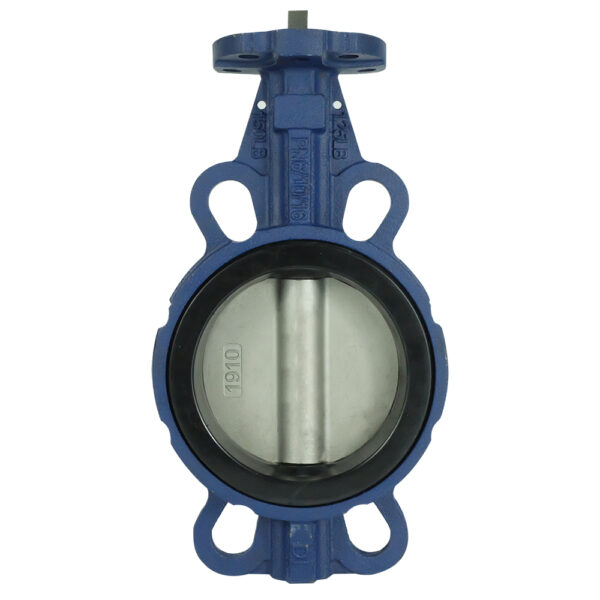

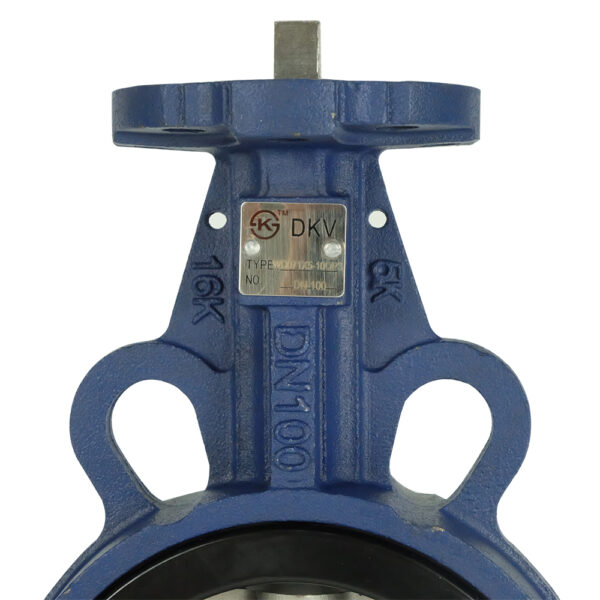

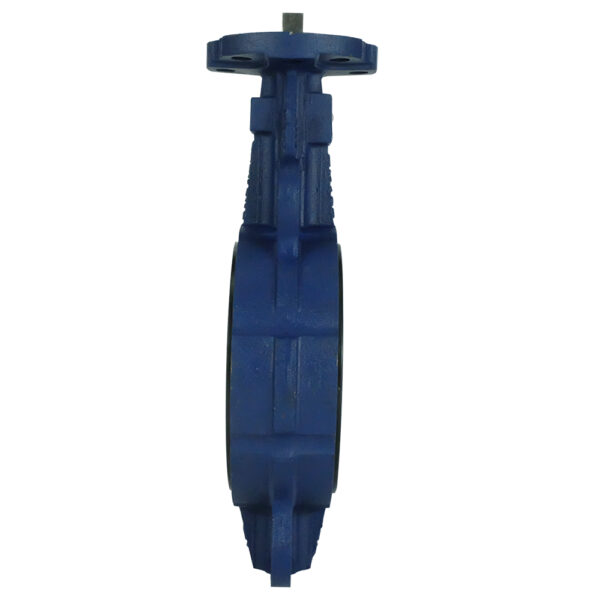

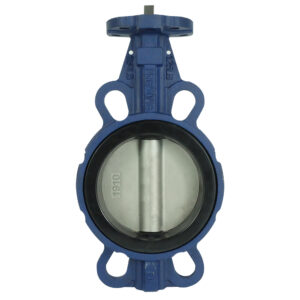

Description
DKV WD071X ensures exceptional strength and corrosion resistance, making it ideal for demanding environments. It is available with multiple actuation options, including manual handle, handwheel, pneumatic actuator, and electric actuator, providing flexibility to meet diverse operational needs. Whether you require simple manual control or automated operation, this valve delivers precise performance and long-lasting service.
Performance Specifications
| Nominal pressure | PN10/PN16 |
| Shell strength test pressure | 1.0 MPa |
| High pressure seal test pressure | / |
| Gas seal test pressure | 0.6 MPa |
| Electric spark test | 15KV AC |
| Applicable temperature | -29°C~150°C |
| Applicable medium: strong acid and strong alkali medium | |

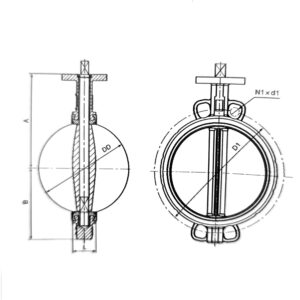

Outline and connecting measurememt
| DN | L | D1 | N1 | d1 | A | B | |||||||||||||||||
| PN6 | PN10 | PN16 | 5K | 10K | 150LB | PN6 | PN10 | PN16 | 5K | 10K | 150LB | PN6 | PN10 | PN16 | 5K | 10K | 150LB | ||||||
| 50 | 43 | 110 | 125 | 125 | 105 | 120 | 120.7 | 4 | 4 | 4 | 4 | 4 | 4 | 14 | 19 | 19 | 15 | 19 | 19.1 | 128 | 72 | ||
