Description
Thread Connection Trap Valve

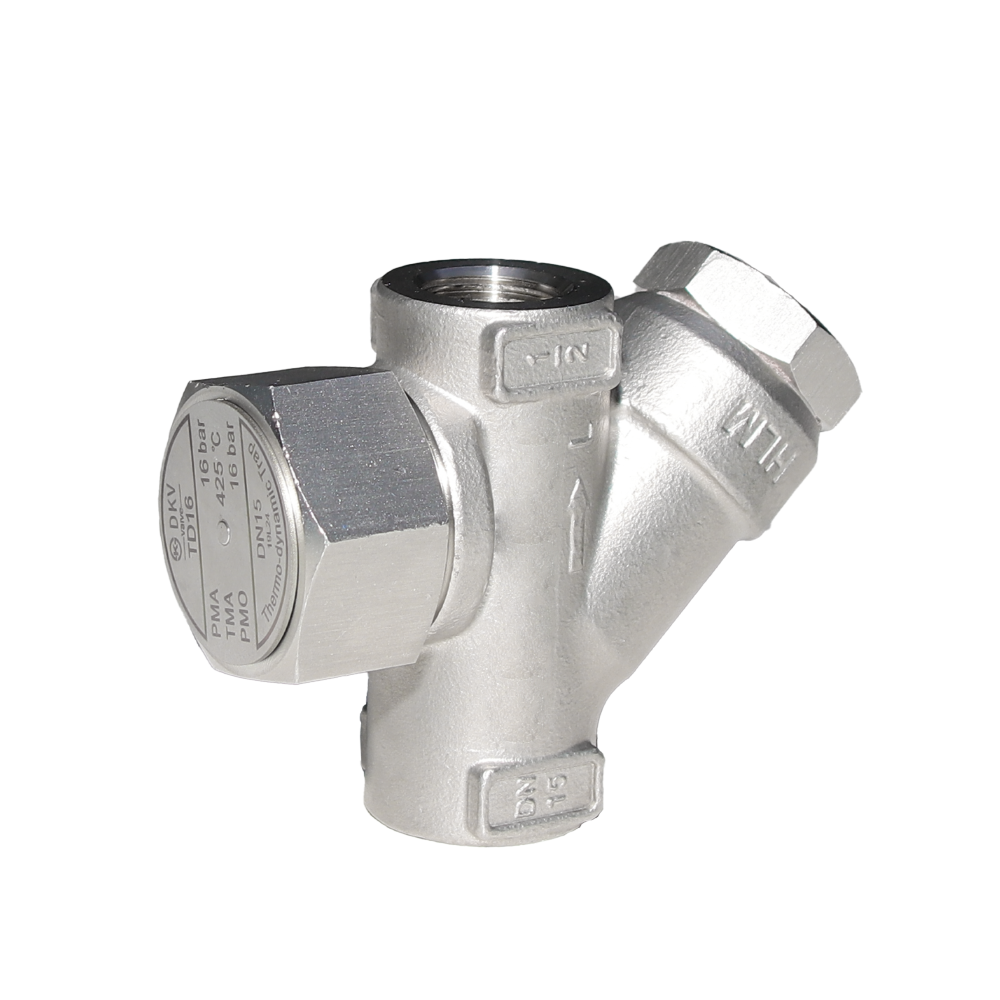

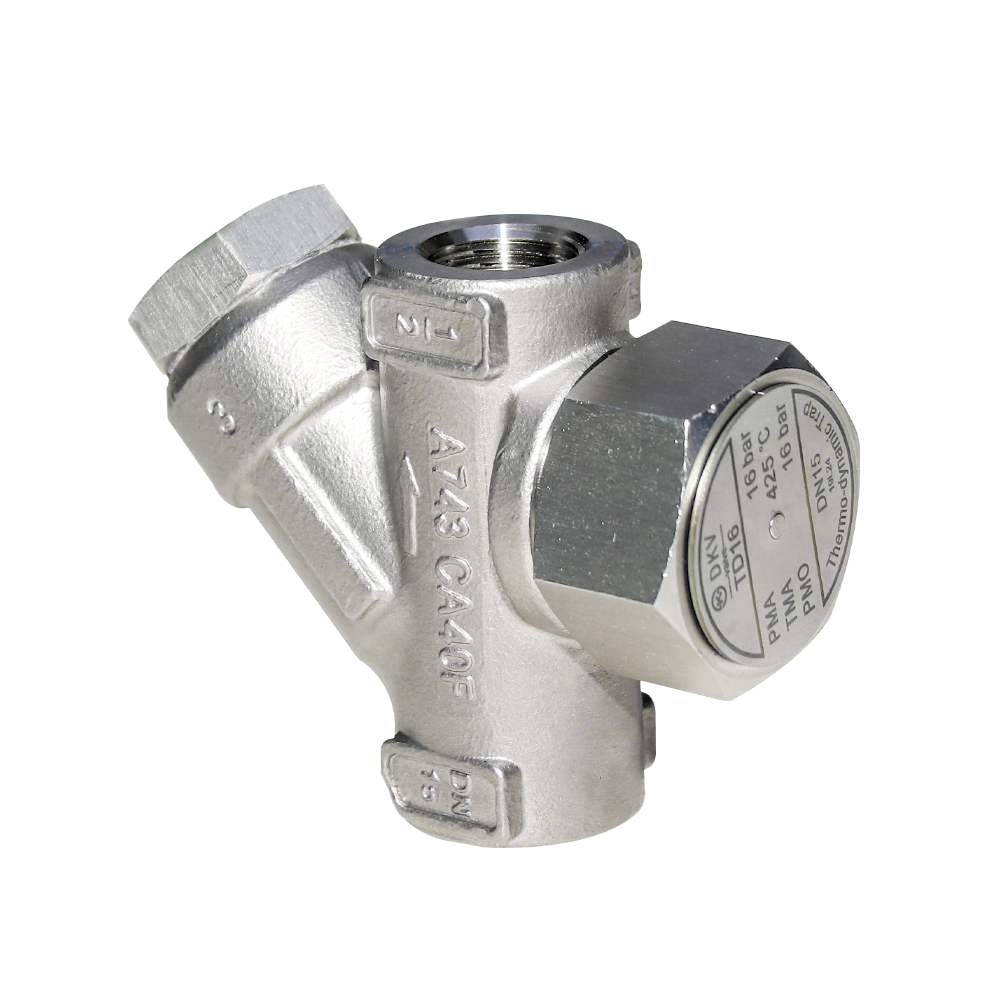

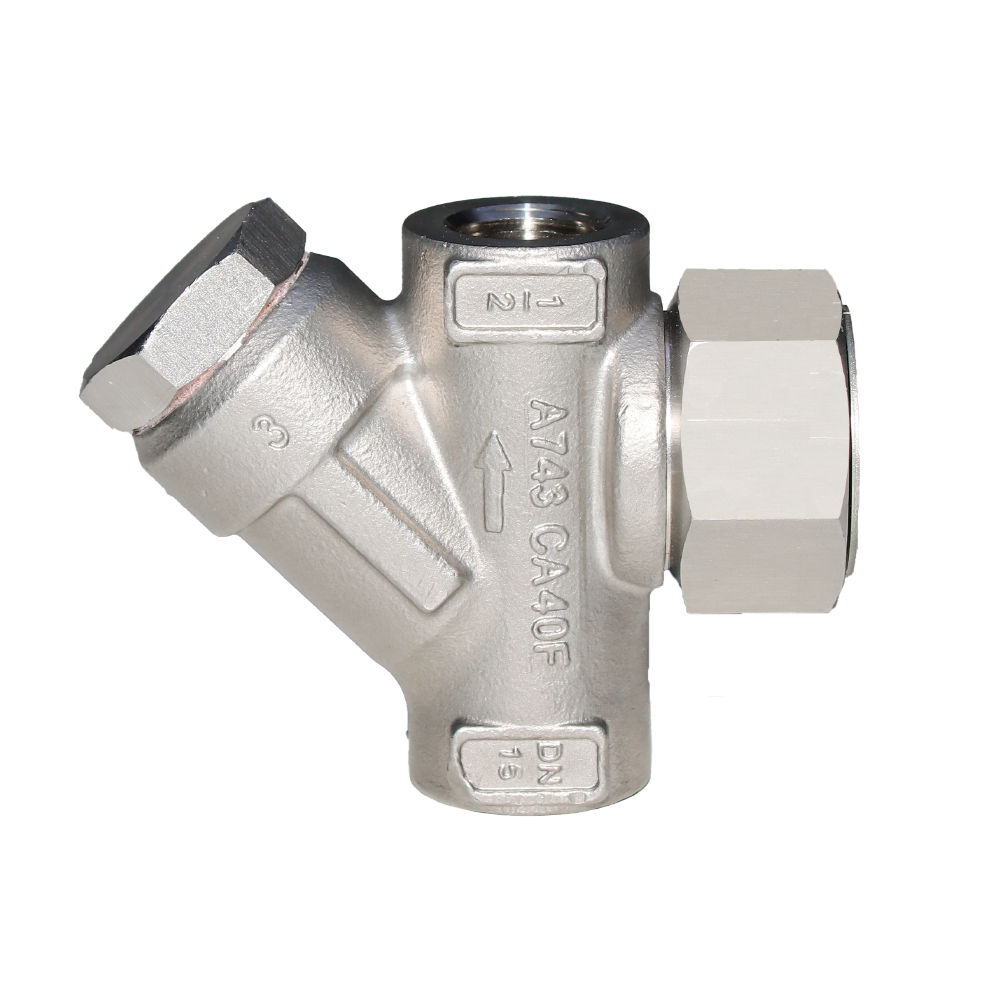

DKV TD16 thermodynamic steam trap is simple, reliableand efficient, featuring a movable stainless steel valve discthat ensures clean and airtight discharge.
lt is resistant tosuperheated steam,water hammer, corrosive condensate, freezing, and vibration.
This steam trap is ideal fordischarging condensatein steam distribution systems.
item | value |
type | Thermodynamic Steam Trap |
structure | Control |
application | General |
place of origin | China |
power | Manual |
customized support | OEM, ODM |
port size | DN15~DN25 |
warranty | 1 year |
model number | TD16 |
temperature of media | Medium Temperature |
brand name | DKV |
media | STEAM |
Body material | Stainless Steel 304 |
Connection | BSP NPT Threaded |
Medium | Steam |
Working pressure | PN16 |
Working Temperature | up to 400°C |
Size | DN15~DN25 |

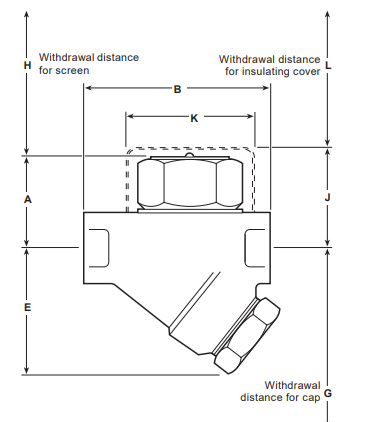

| Size | A | B | E | G | H | J | K | L | Weight |
| ½” | 41 | 78 | 55 | 85 | 20 | 52 | 57 | 38 | 0.75 |
| ¾” | 44 | 85 | 57 | 100 | 20 | 54 | 57 | 38 | 0.95 |
| 1″ | 48 | 95 | 60 | 100 | 20 | 58 | 57 | 38 | 1.50 |
