Description
Y-strainer
DKV Y-strainer is a vital pipeline filter installed at the inlet ofvalves or equipment to remove impurities and protect systemcomponents.
Compact and efficient, it offers low flowresistance and easy cleaning.
DKV Y-strainer is suitable forwater, oil, and gas applications.
Standard mesh sizes include18~30 mesh for water,10~100 mesh for air, and 100~480 mesh for oil.
Model: SY41/GL41W
Body Material: Stainless Steel 304/316
Screen Material: Stainless Steel 304
Connection: Flanged
Size: DN15-DN300
Pressure Range: 1.6-4.0Mpa(150-600LB)
Temperature Range : -80’C to 450°C
Seat Material: NBR, PTFE
FilterScreen: 10-120 Mesh
Medium : Water,Oil,Air And Some Corrosive liquid

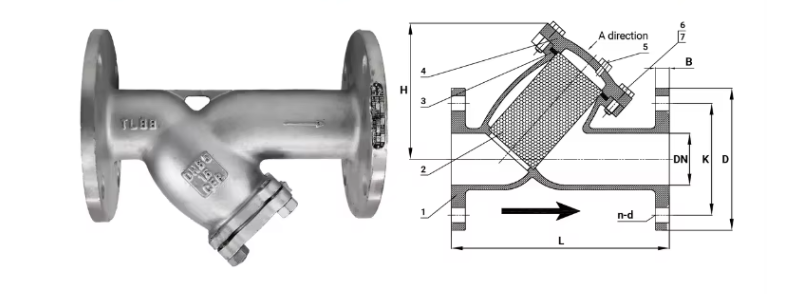

L | D | D1 | D2 | b-f | Z-φd | H1 | |
DN15 | 130 | 95 | 65 | 45 | 14-2 | 4-14 | 56 |
DN20 | 140 | 105 | 75 | 55 | 14-2 | 4-14 | 65 |
DN25 | 150 | 115 | 85 | 65 | 14-2 | 4-14 | 80 |
DN32 | 180 | 135 | 100 | 78 | 16-2 | 4-18 | 87 |
DN40 | 200 | 145 | 110 | 85 | 16-2 | 4-18 | 103 |
DN50 | 220 | 160 | 125 | 100 | 16-2 | 4-18 | 112 |
DN65 | 250 | 180 | 145 | 120 | 18-3 | 4-18 | 163 |
DN80 | 280 | 195 | 160 | 135 | 20-3 | 8-18 | 189 |
DN100 | 300 | 215 | 180 | 155 | 20-3 | 8-18 | 212 |
DN125 | 340 | 245 | 210 | 185 | 22-3 | 8-18 | 238 |
DN150 | 380 | 280 | 240 | 210 | 24-3 | 8-23 | 272 |
DN200 | 460 | 340 | 295 | 266 | 24-2 | 12-22 | 332 |
item | value |
type | Strainer |
structure | Other |
application | General |
place of origin | China |
power | Manual |
customized support | OEM, ODM |
port size | DN15-DN300 |
warranty | 1 year |
model number | GL41W-16P |
temperature of media | Normal Temperature |
brand name | DKV |
media | Water |
Body material | SS316 / CF8M |
Connection | Flanged |
Pressure | 1.6MPa / 150# |
Working Temperature | -20°C ~` 230°C |
Working medium | General Oil, Gas & Water Applications |
Seal Material | PTFE |

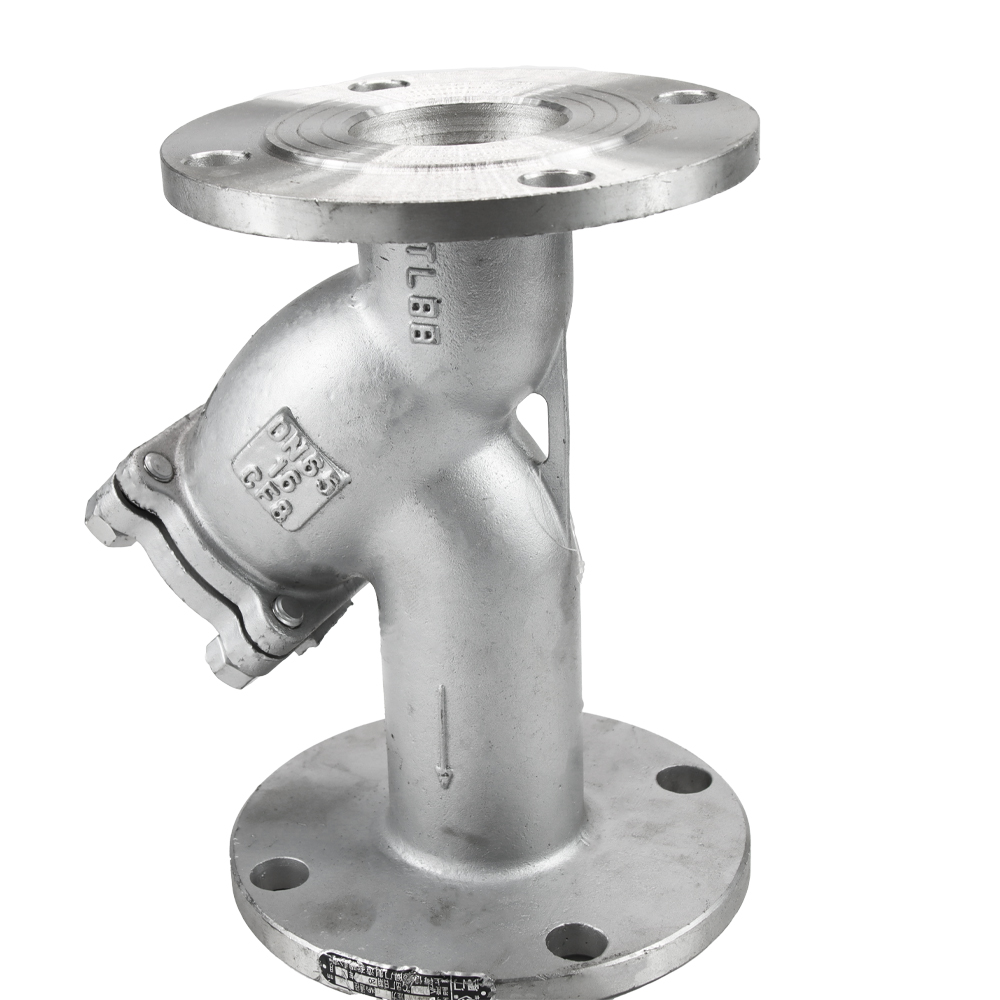

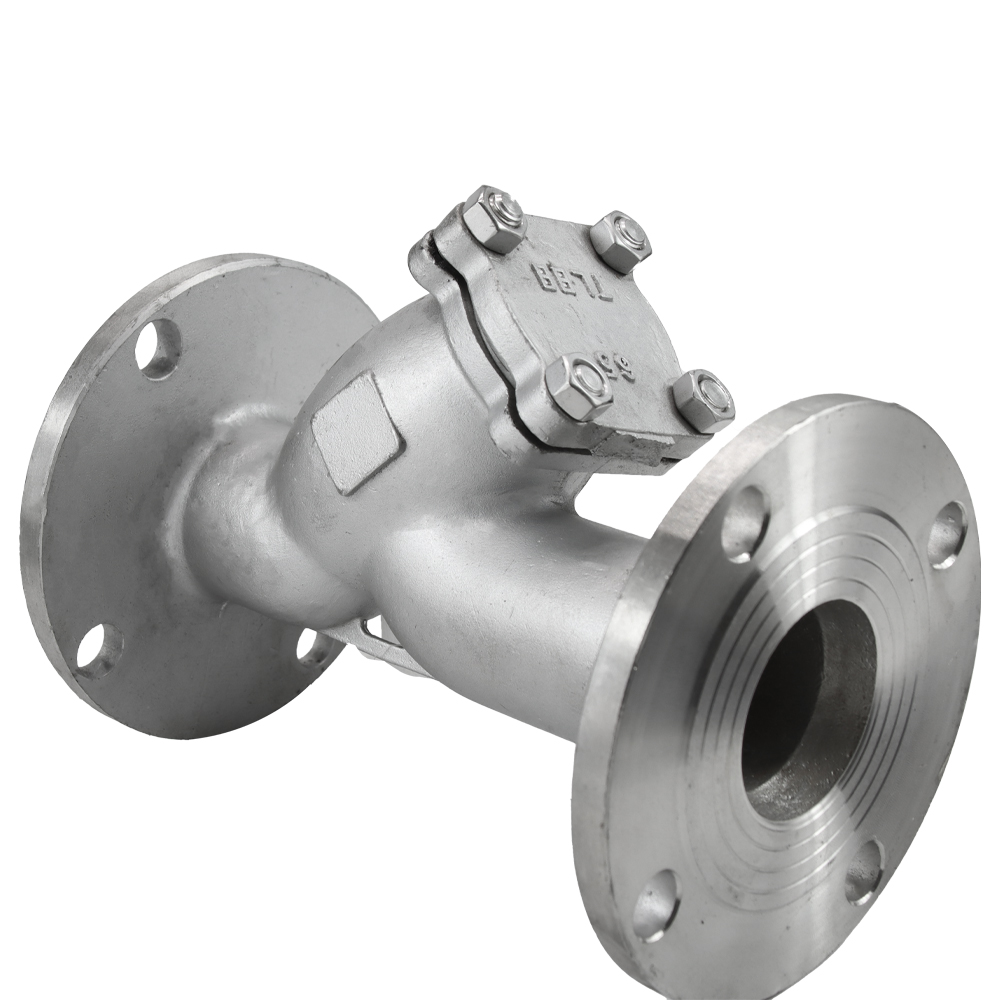

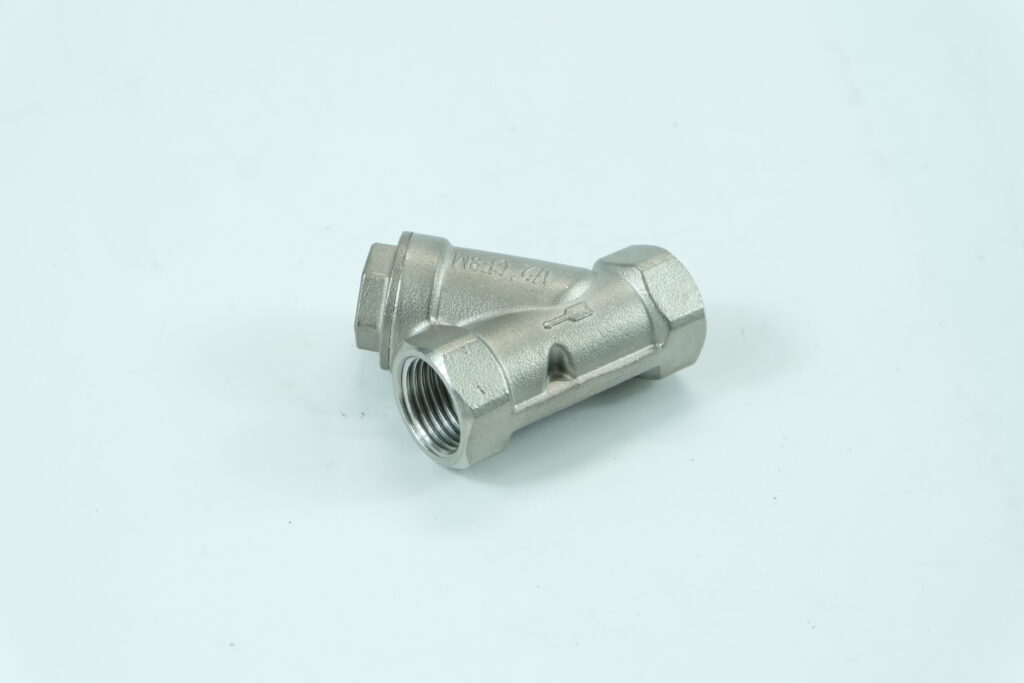

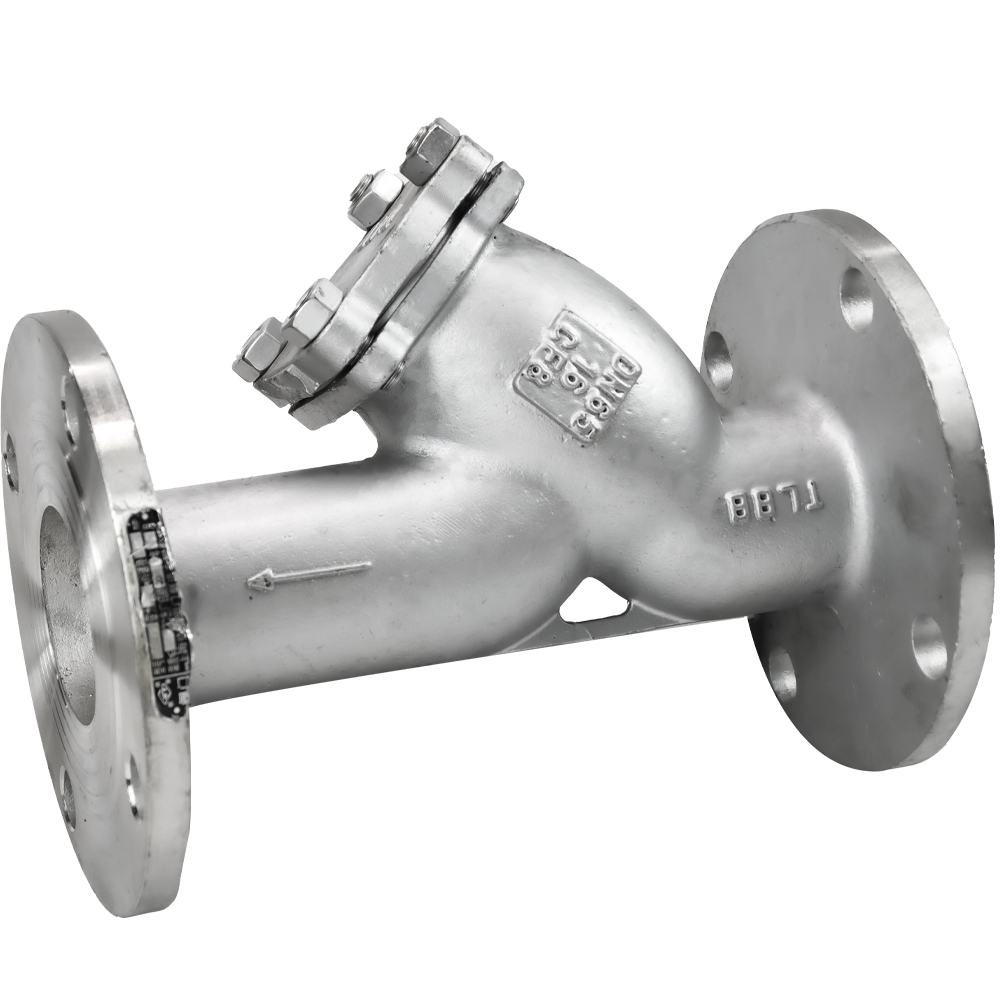

Product Pictures
