Description

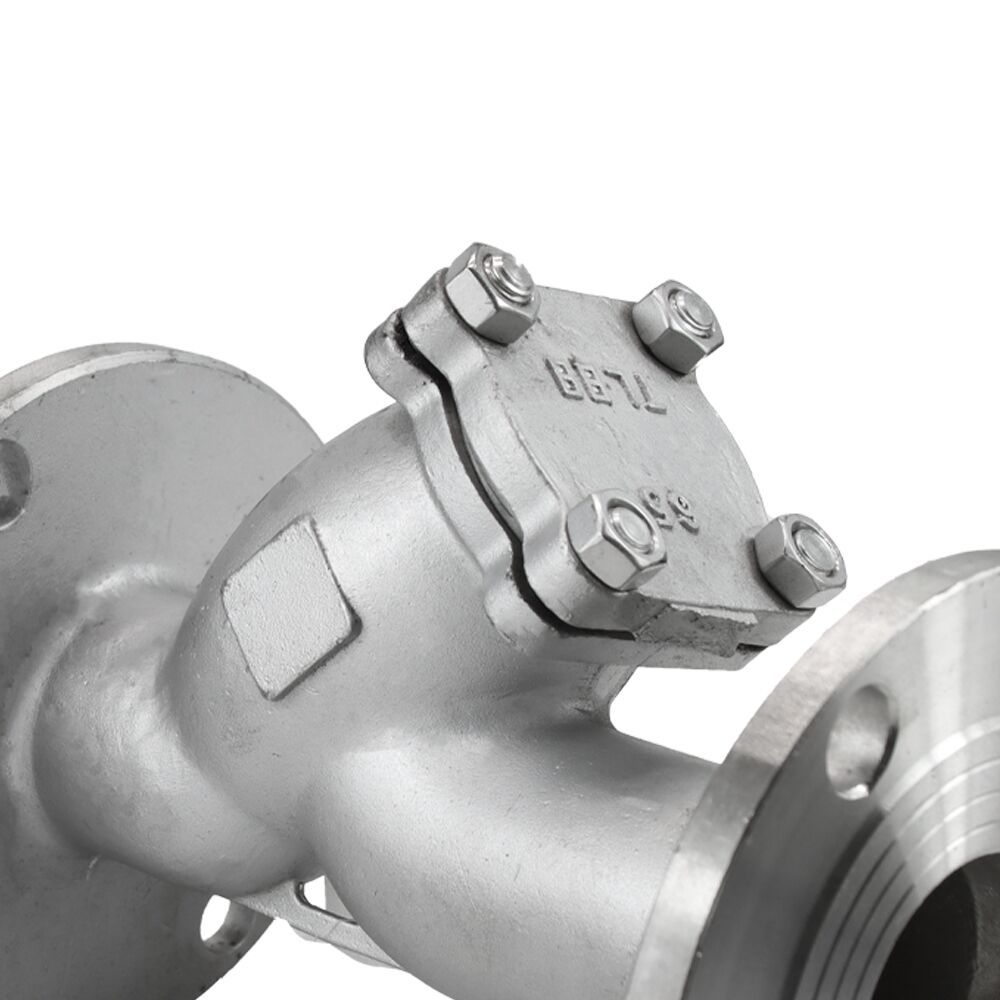

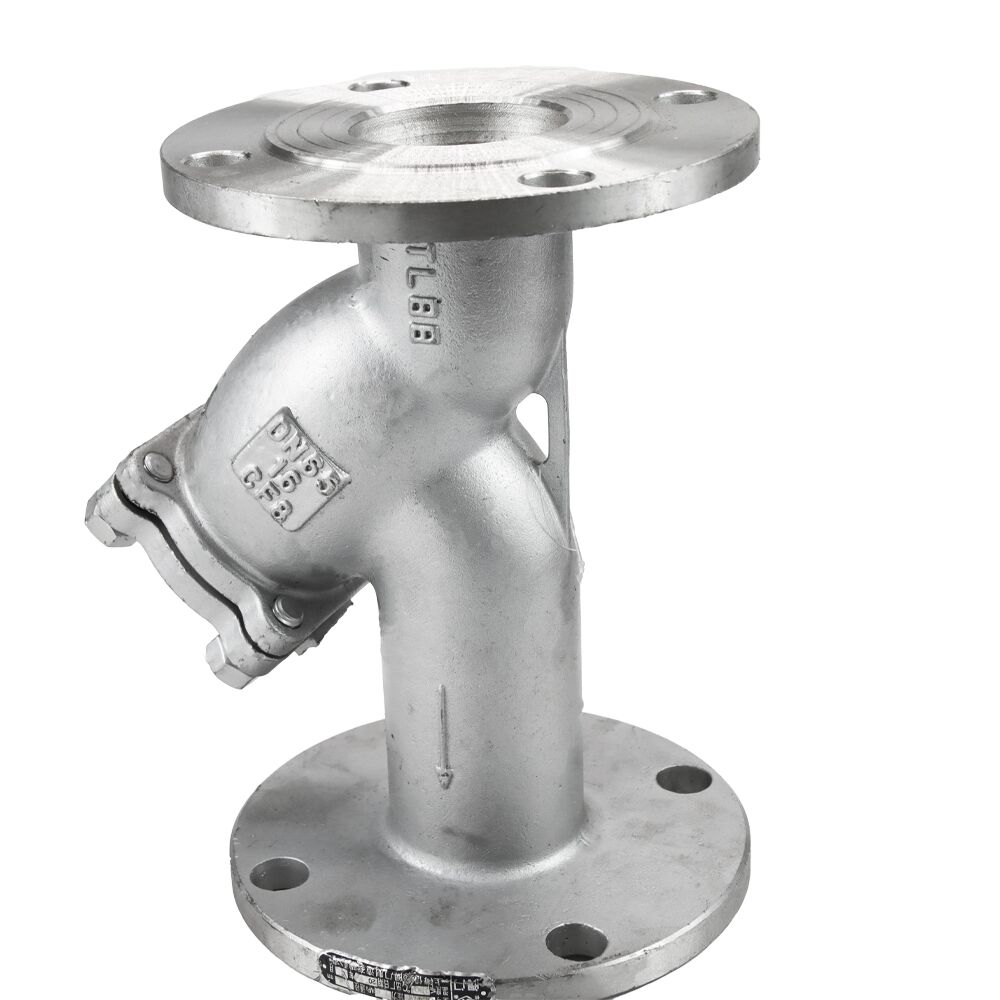

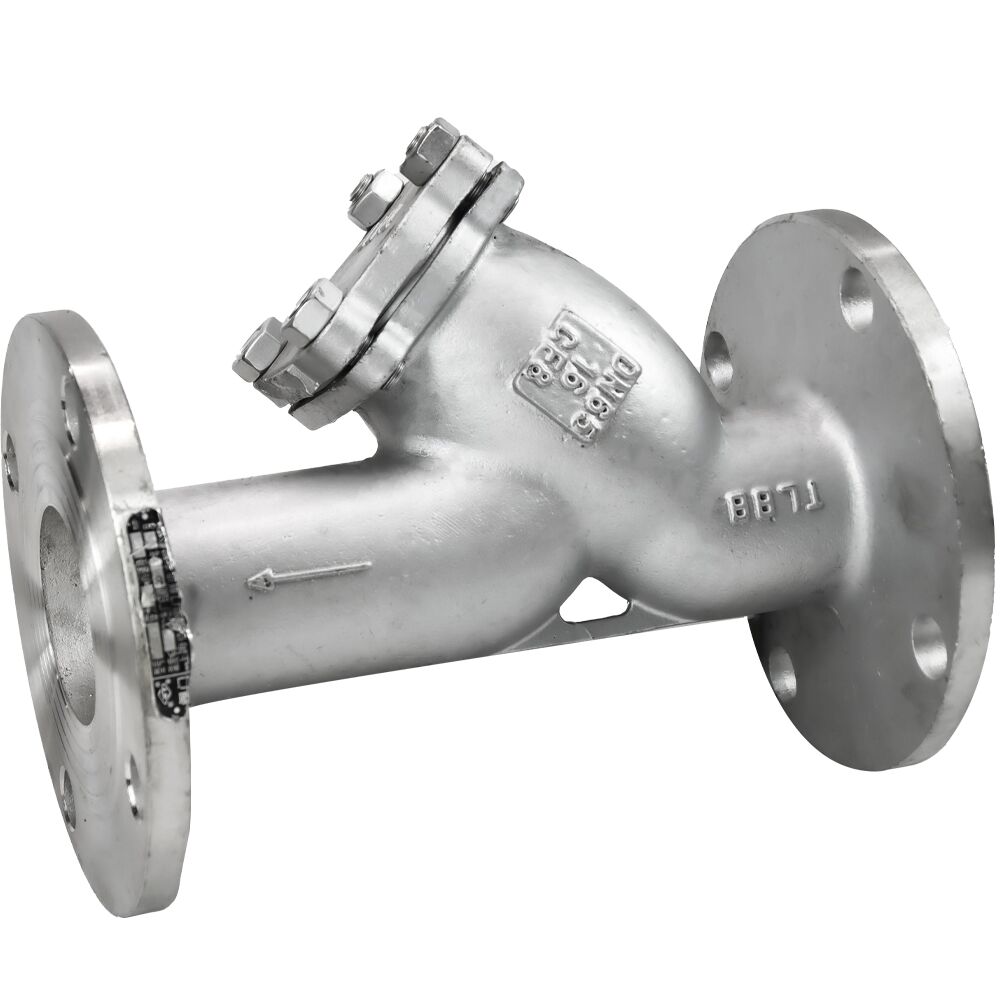

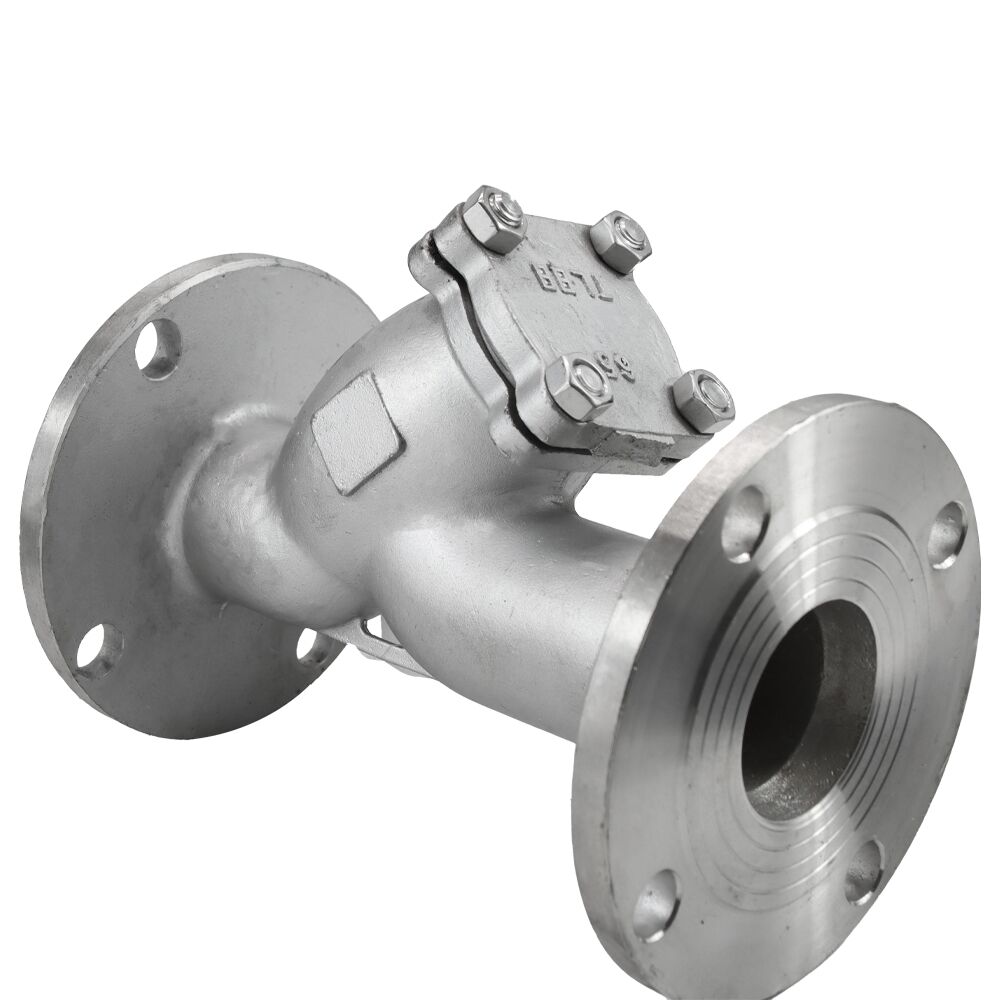

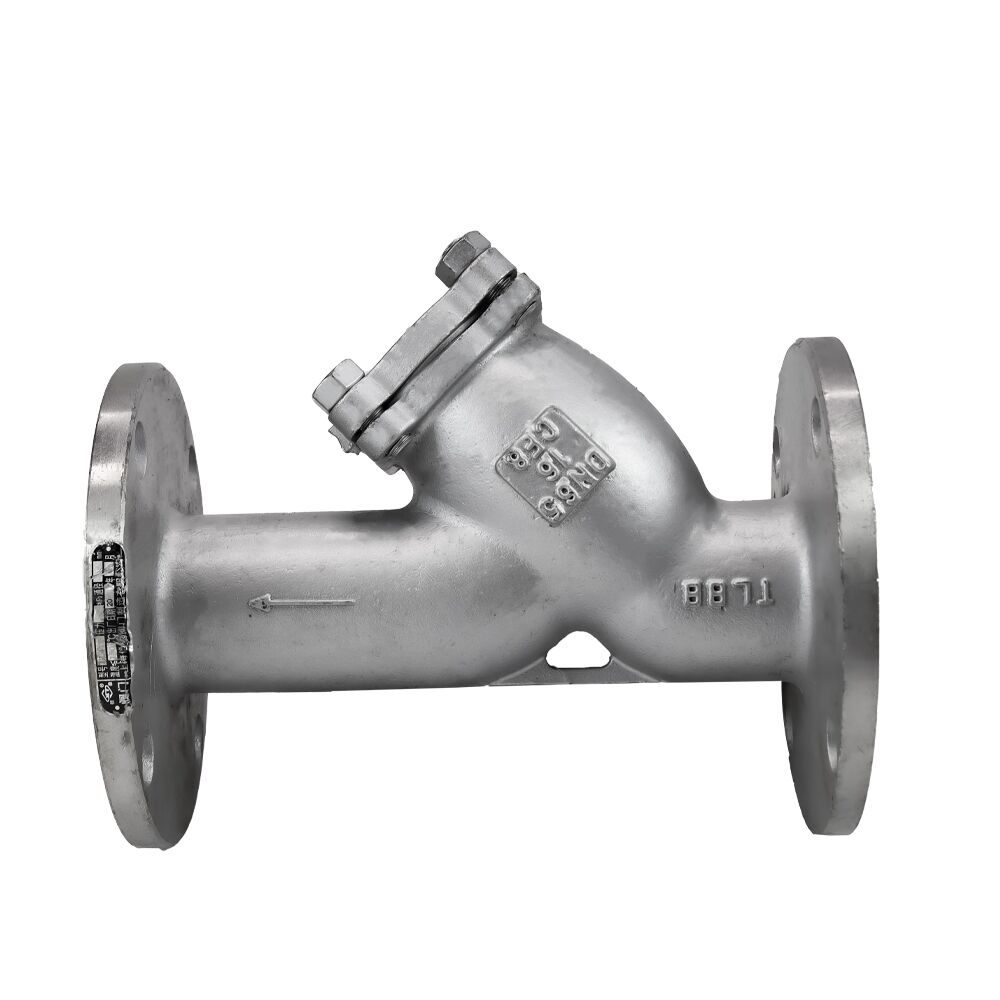

GL41W Stainless Steel Y Type Flange Strainer is an indispensable device for pipelines that convey media. It is usually installed at the inlet of pressure reducing valves, pressure relief valves, water level valves or other equipment to remove impurities in the media to protect the normal use of valves and equipment.
| Valve body | Cast steel,stainless steel | ||
| Fiter | Stainless steel | ||
| Operatng temporature | -80-400℃ | ||
| Work pressure | 1.6 | ||
| Test prossure | 2.4 |

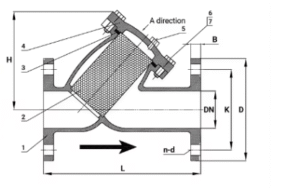

Outline and connecting measurememt
| Type | Nominal diameter DN(mm) |
L | H |
| GL41W-16P | 15 | 150 | 70 |
| 20 | 150 | 70 | |
| 25 | 160 | 80 | |
| 32 | 180 | 90 | |
| 40 | 200 | 100 | |
| 50 | 220 | 130 | |
| 65 | 250 | 165 | |
| 80 | 280 | 195 | |
| 100 | 320 | 230 | |
| 125 | 360 | 300 | |
| 150 | 430 | 335 | |
| 200 | 485 | 420 | |
| 250 | 590 | 500 | |
| 300 | 605 | 580 | |
| 350 | 715 | 640 | |
| 400 | 785 | 700 | |
| 450 | 855 | 790 | |
| 500 | 900 | 875 |
