Description

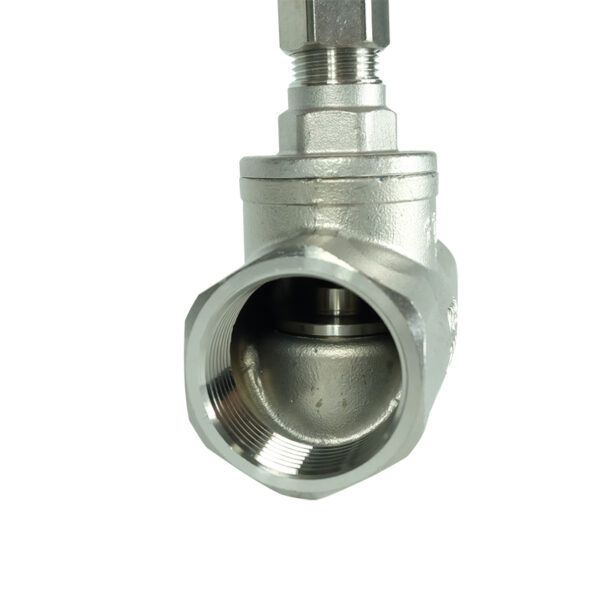

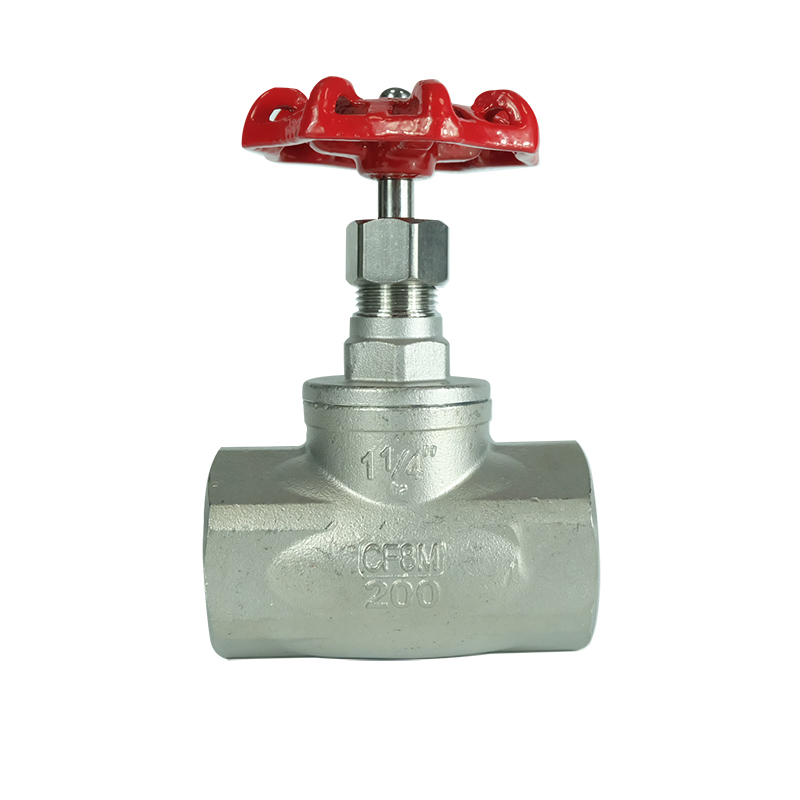

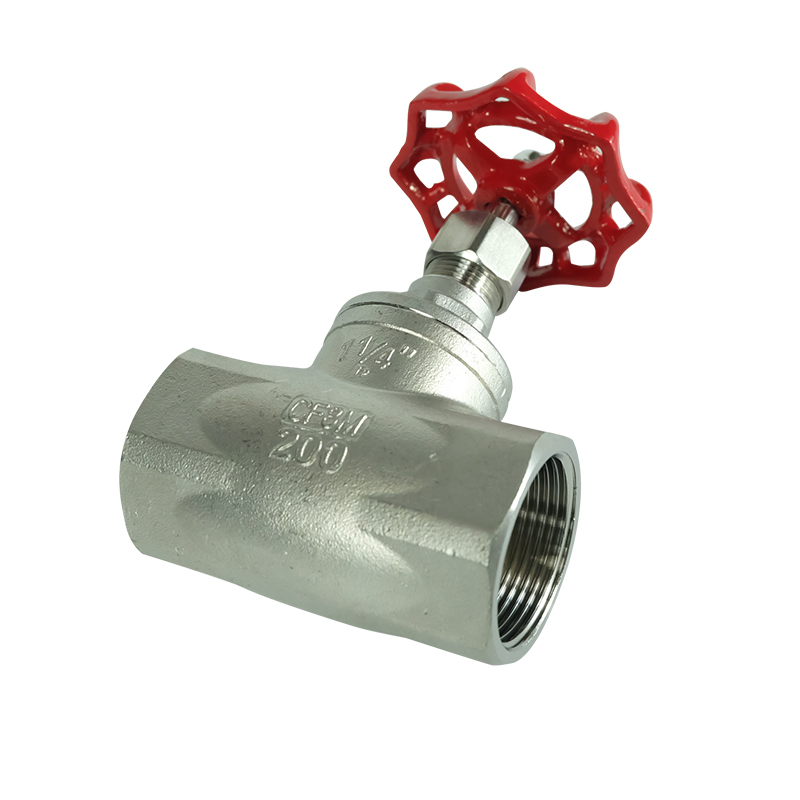

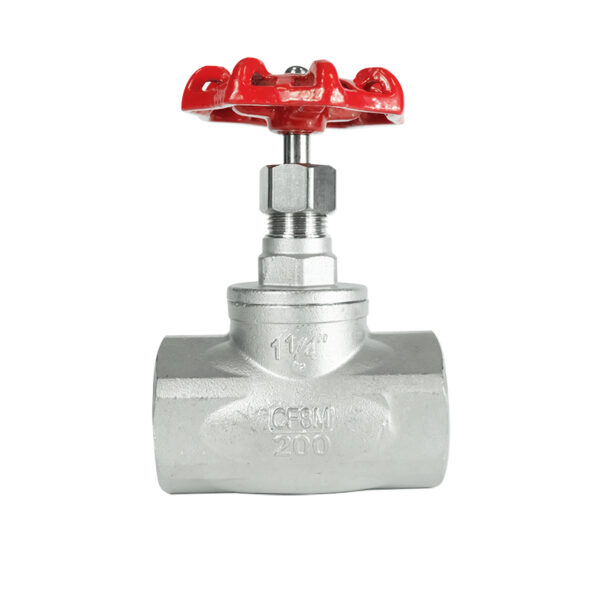

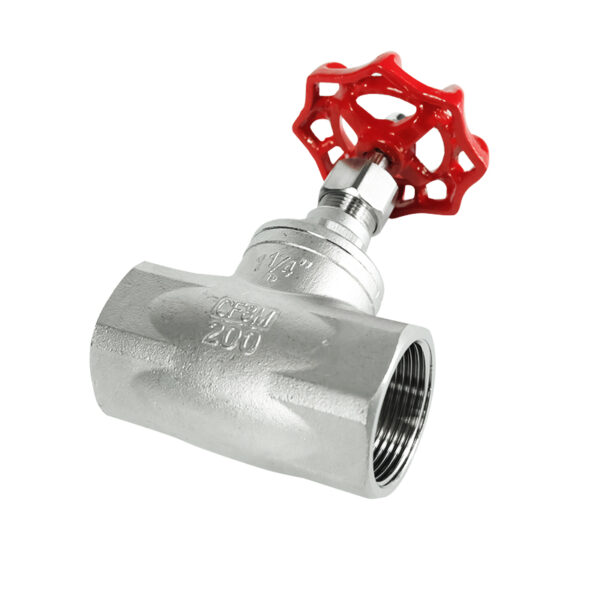

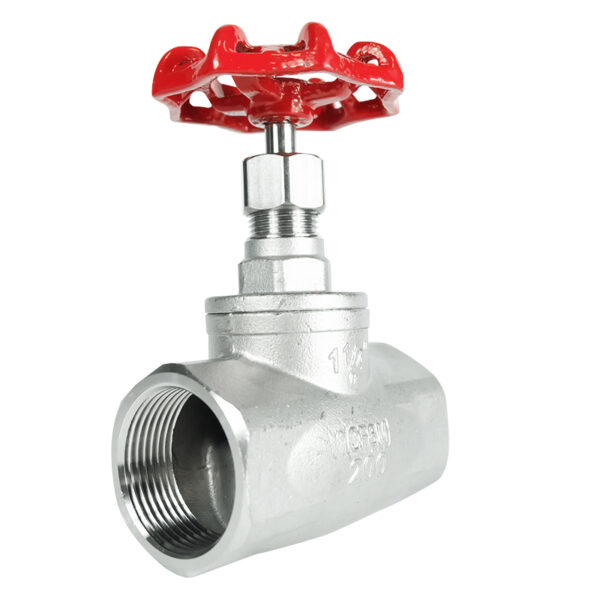

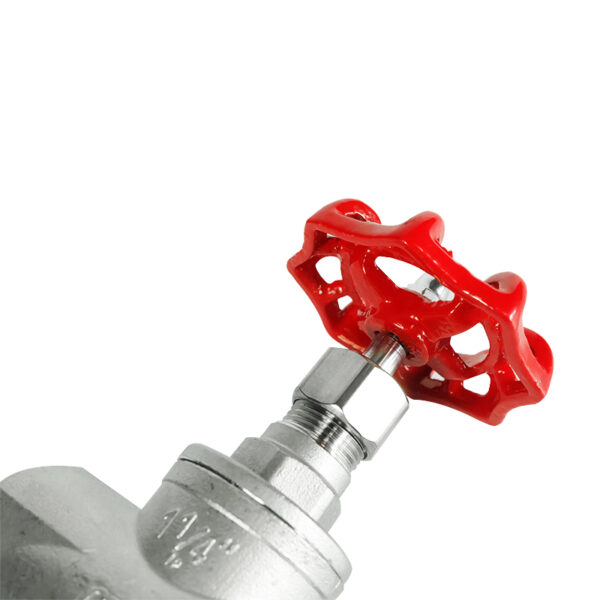

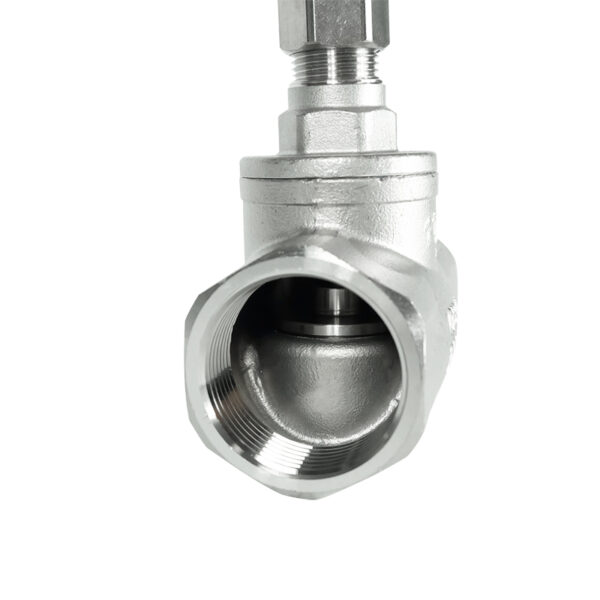

DKV J11W Thread Globe Valve: A corrosion-resistant stainless steel (304/316) threaded globe valve designed applications in harsh environments. Featuring NPT/BSP threaded connections (1/2″ to 2″), it ensures leak-proof performance with a dual-seal system (PTFE gasket + metal seat), ideal for steam, chemicals, oil, and marine systems.
| No. | Part | Materials | ||||
| 1 | Body | ASTM A351 CF8M/CF8 | ||||
| 2 | Bonnets | ASTM A351 CF8M/CF8 | ||||
| 3 | Core | SS316 | ||||
| 4 | Cork | SS316 | ||||
| 5 | Hexagonal cap | SS316 | ||||
| 6 | Packing Gland | SS304 Main extemal dimensions | ||||
| 7 | Paking | R-PTFE | ||||
| 8 | Handwheels | ASTM B85 | ||||
| 9 | Center shaft nut | SS304 | ||||
| 10 | Nameplate | Aluminum Alloy | ||||
| 11 | Gaskets | SS304 | ||||
| 12 | 密封圈Sealling | R-PTFE | ||||
Outline and connecting measurememt
| Size | d | L | H | D1 | CV | |
| 1/2 | 15 | 66 | 100 | 70 | 3.8 | |
| 3/4 | 20 | 80 | 106 | 70 | 7.0 | |
| 1 | 25 | 90 | 118 | 80 | 11.0 | |
| 1-1/4 | 32 | 105 | 134 | 80 | 21.0 | |
| 1-1/2 | 40 | 120 | 152 | 90 | 29.0 | |
| 2 | 50 | 141 | 172 | 100 | 50.0 | |
