Description

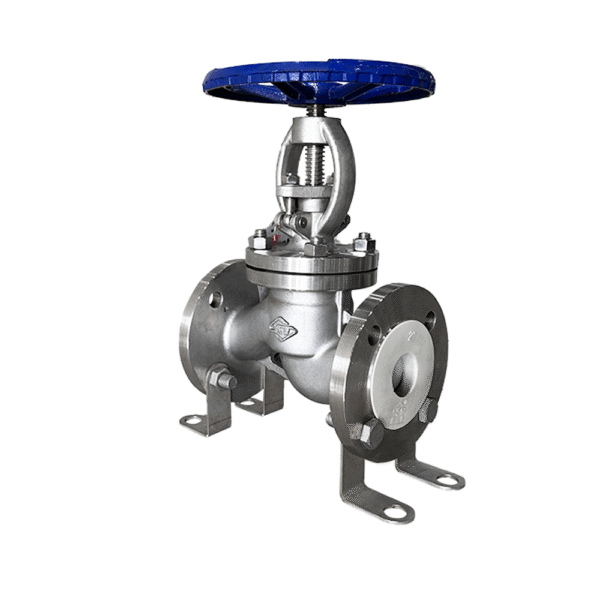

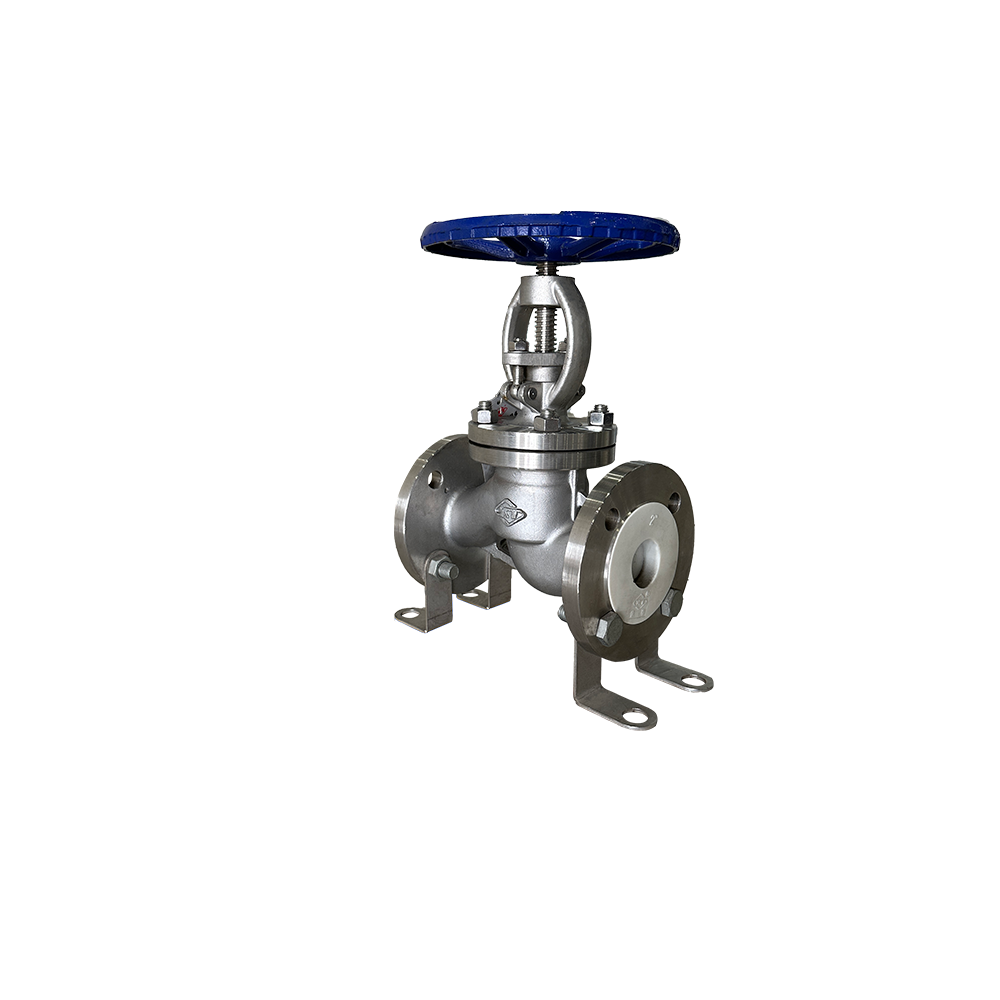

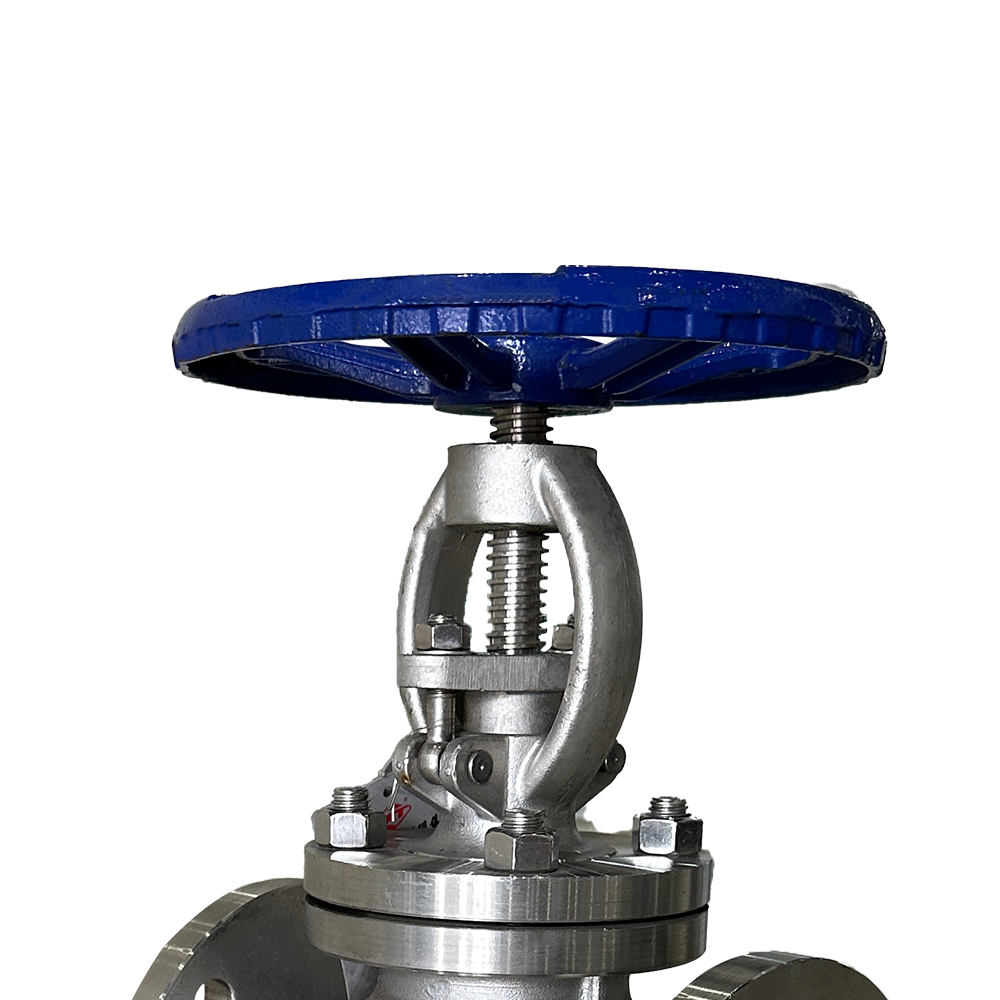

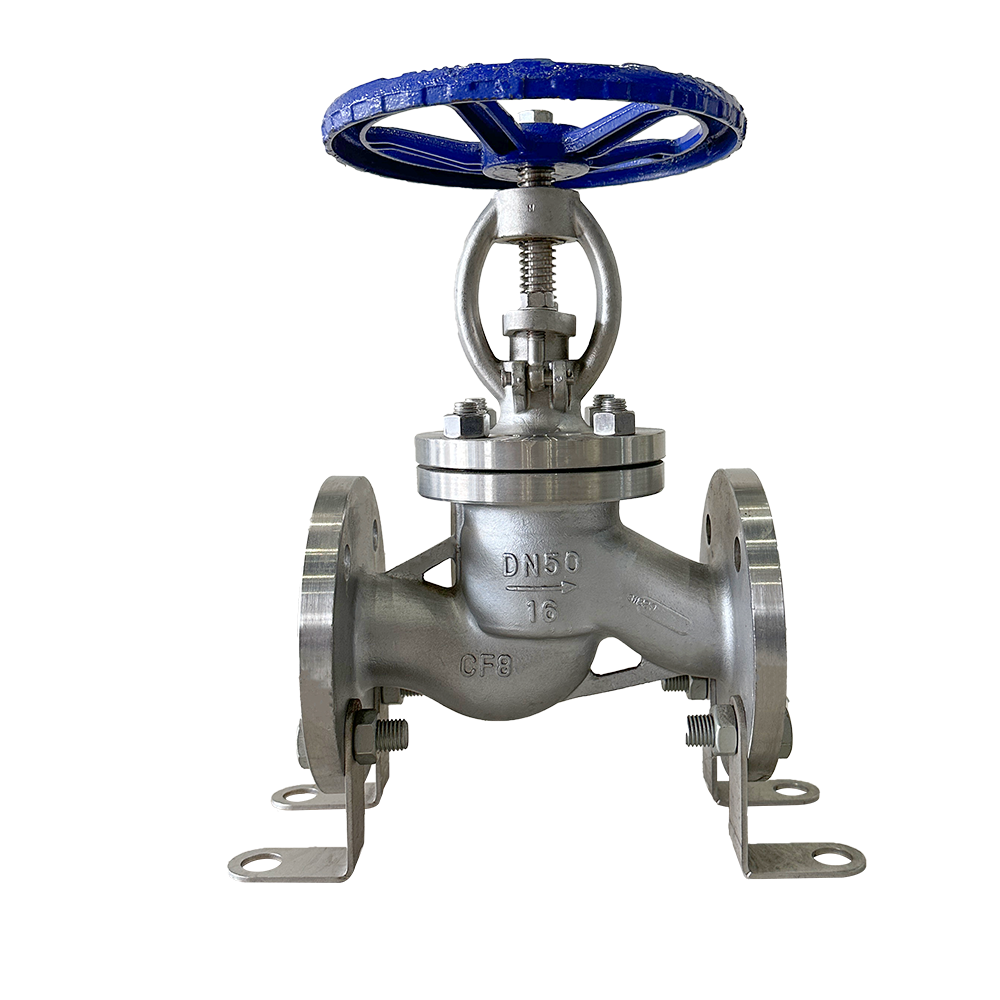

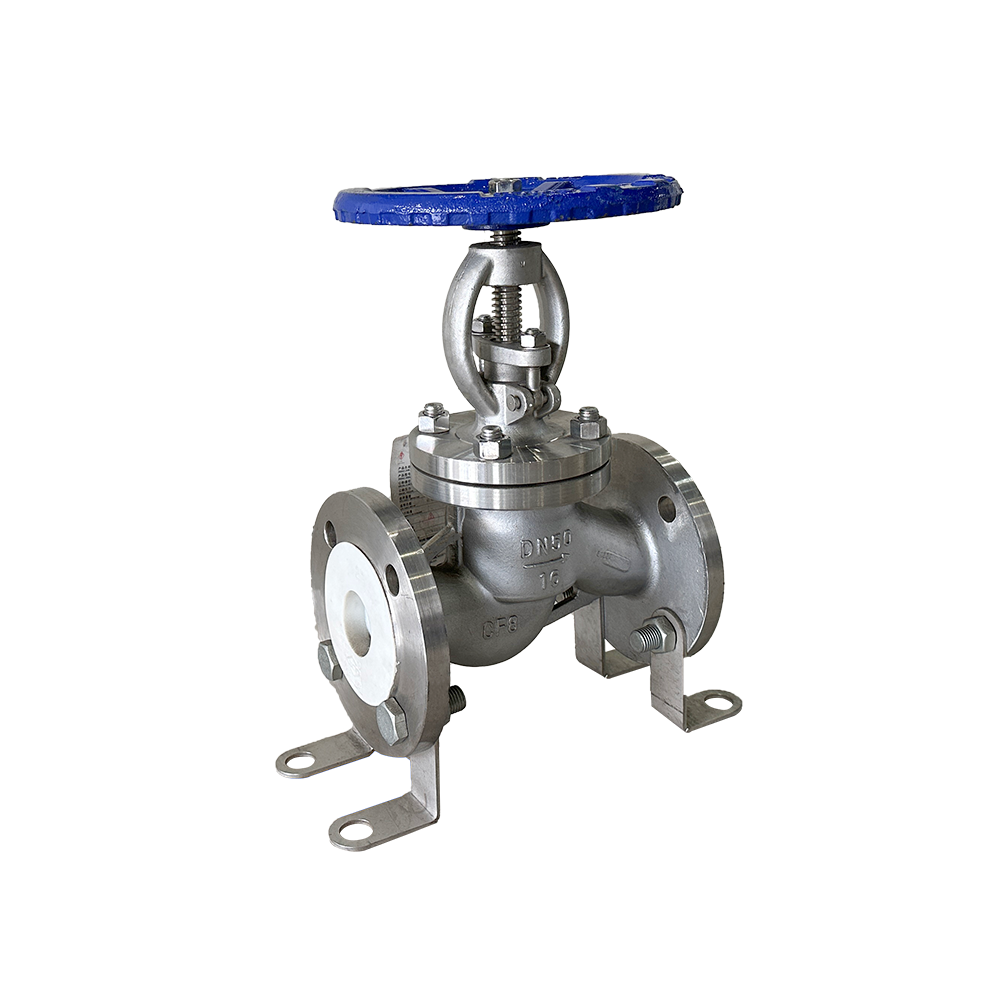

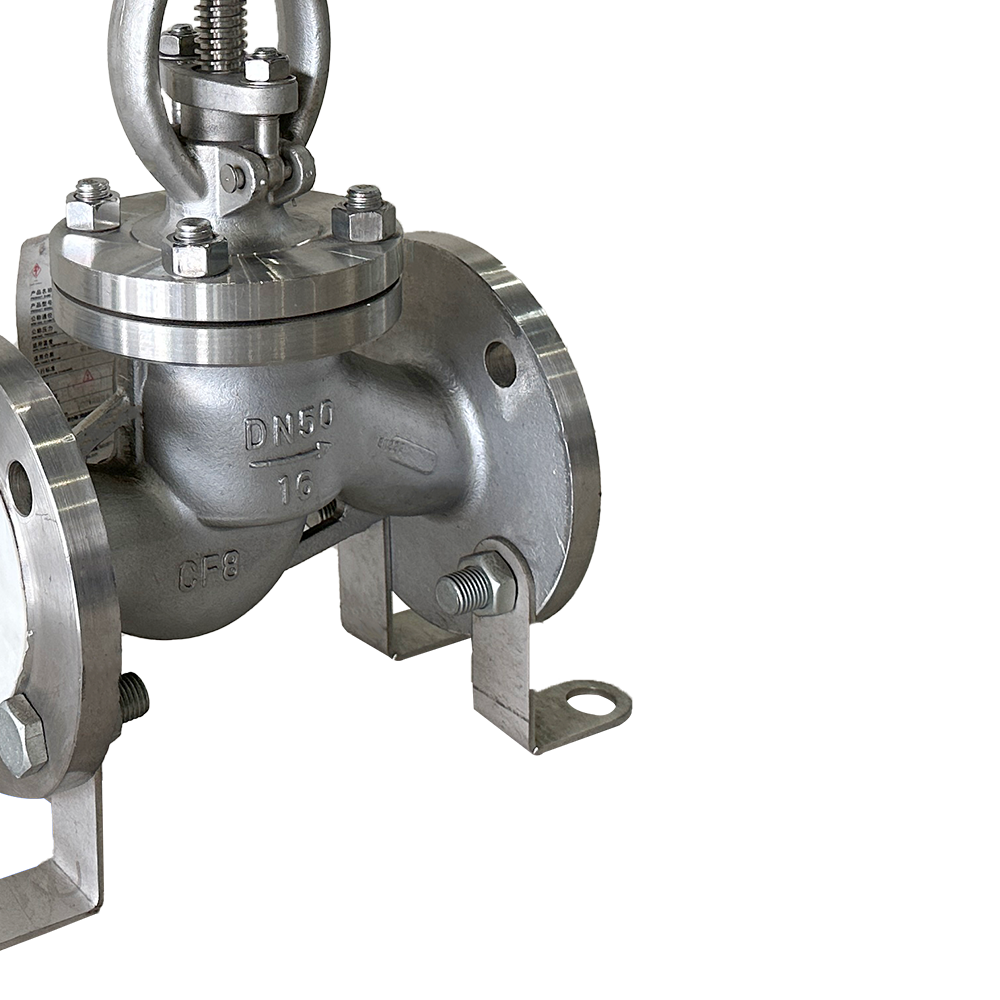

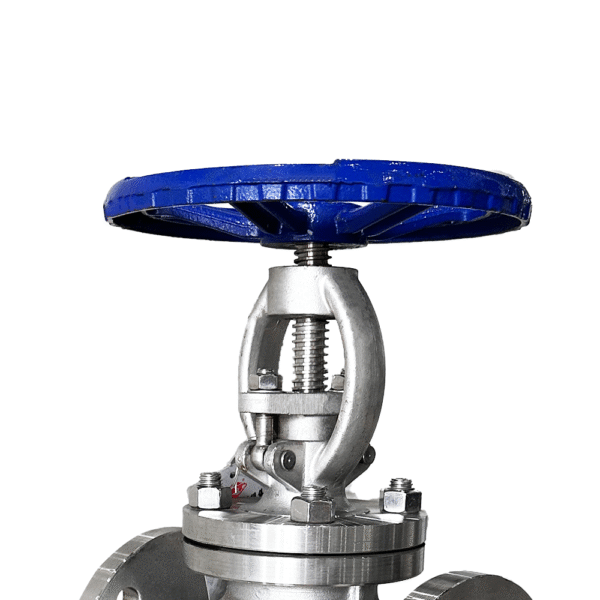

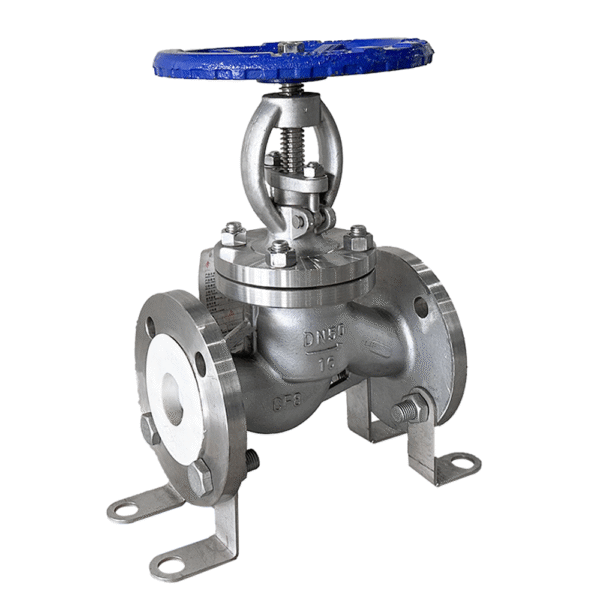

DKV J41W Flanged Globe Valve is a high-performance valve made from stainless steel 304 or 316, designed for industrial pipelines requiring excellent corrosion resistance and leak-proof reliability. Featuring flanged connections (DN50–DN300), it operates efficiently under pressures up to PN40 and temperatures from -29°C to 200°C.
The dual-seal system combining a PTFE gasket and metal seat ensures zero leakage and long-term durability in steam, oil, gas, and chemical applications, making it an ideal choice for demanding industrial environments.

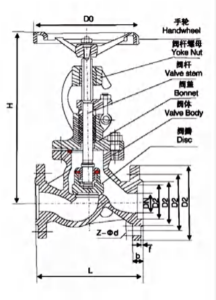

Outline and Connecting Measurememt
| Type | Nominal Diameter DN（mm） |
Measurement（mm) | |||||||
| L | D | D1 | D2 | b-f | Z×φd | H | DO | ||
| J41W-1 6PR |
15 | 130 | 95 | 65 | 45 | 16-2 | 4xφ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4xφ14 | 190 | 140 | |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4xφ14 | 205 | 160 | |
| 32 | 180 | 140 | 100 | 78 | 18-2 | 4xφ18 | 270 | 180 | |
| 40 | 200 | 150 | 110 | 85 | 18-3 | 4xφ18 | 310 | 200 | |
| 50 | 230 | 165 | 125 | 100 | 18-3 | 4xφ18 | 358 | 240 | |
| 65 | 290 | 185 | 145 | 120 | 18-3 | 4xφ18 | 373 | 280 | |
| 80 | 310 | 200 | 160 | 135 | 20-3 | 8xφ18 | 435 | 320 | |
| 100 | 350 | 220 | 180 | 155 | 20-3 | 8xφ18 | 500 | 360 | |
| 125 | 400 | 250 | 210 | 185 | 22-3 | 8xφ18 | 614 | 400 | |
| 150 | 480 | 285 | 240 | 210 | 24-3 | 8xφ23 | 674 | 400 | |
| 200 | 600 | 340 | 295 | 265 | 26-3 | 12xφ23 | 818 | 450 | |
| 250 | 730 | 405 | 355 | 320 | 30-3 | 12xφ25 | 969 | 550 | |
Performance Specifications
| Type | Nominal Pressure (MPa) |
Temperature | Working Temperature℃ | Suitable Mediums | |||||||
| Strength(water)(MPa) | Sealed (water)(MPa) | ||||||||||
| J41W-16P/R | 1.6 | 2.4 | 1.8 | ≤200 | Nitric Acid | ||||||
| J41W-25P/R | 2.5 | 3.8 | 2.8 | ||||||||
| J41W-40P/R | 4.0 | 6 | 4.4 | ||||||||
| Part Name | Material |
| Valve Body、Bonnet | Stainless Steel |
| Valve Flap | Stainless Steel |
| Valve Stem | Stainless Steel |
| Stem Nut | Brass |
