Description

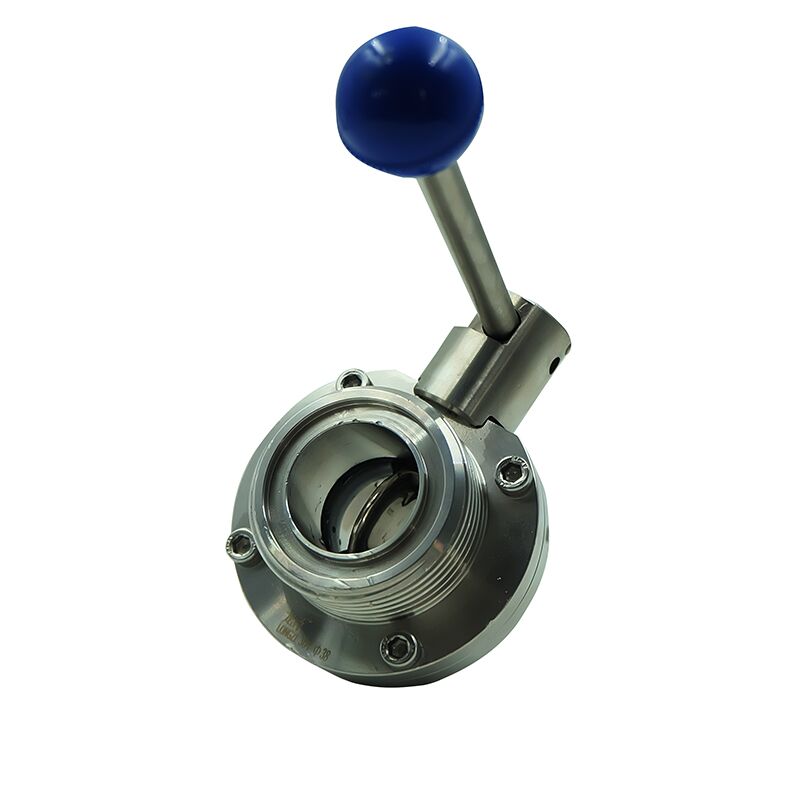

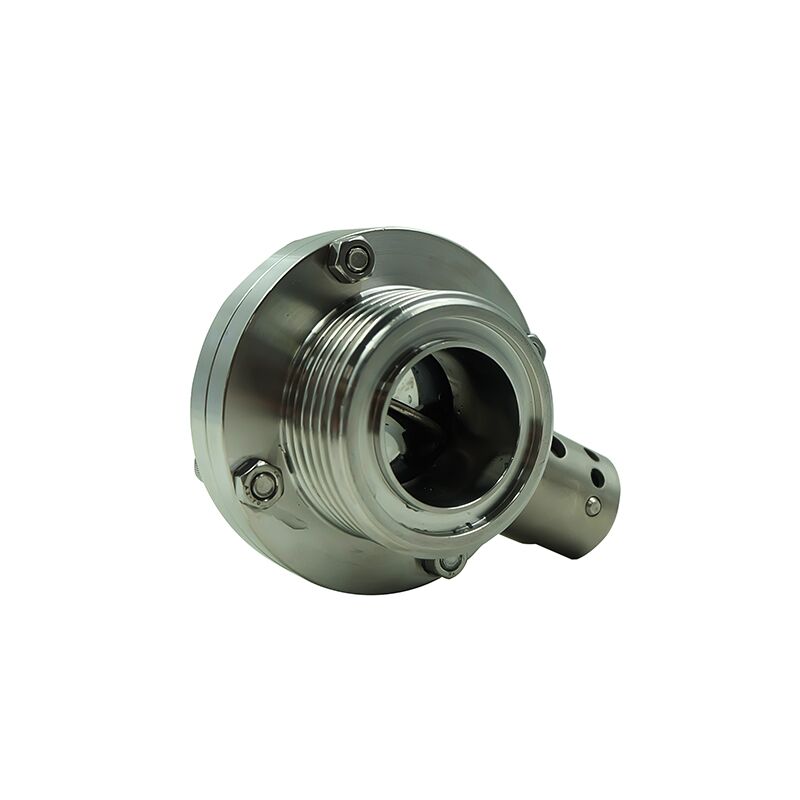

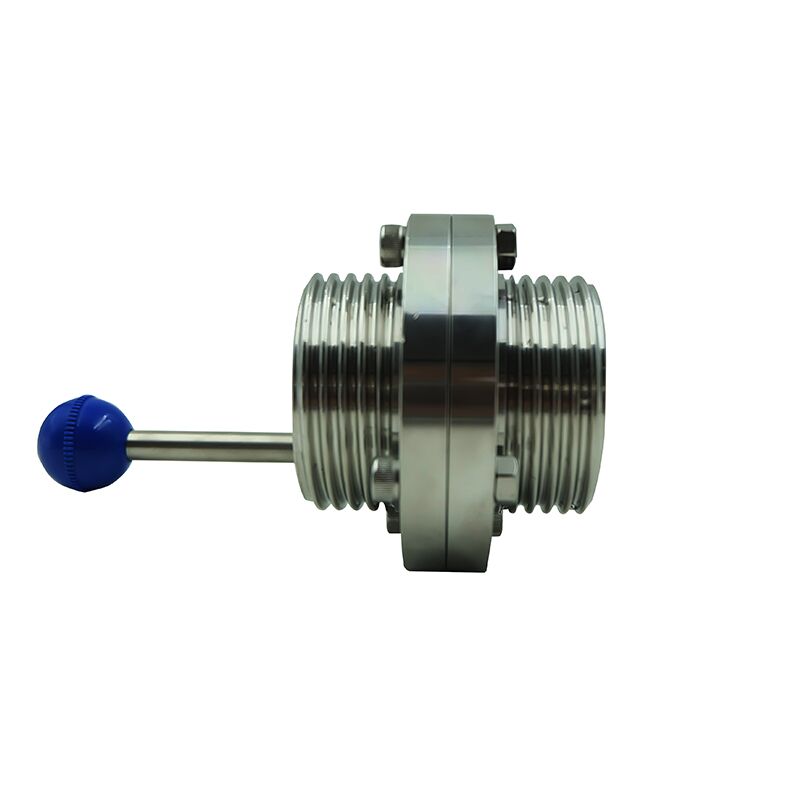

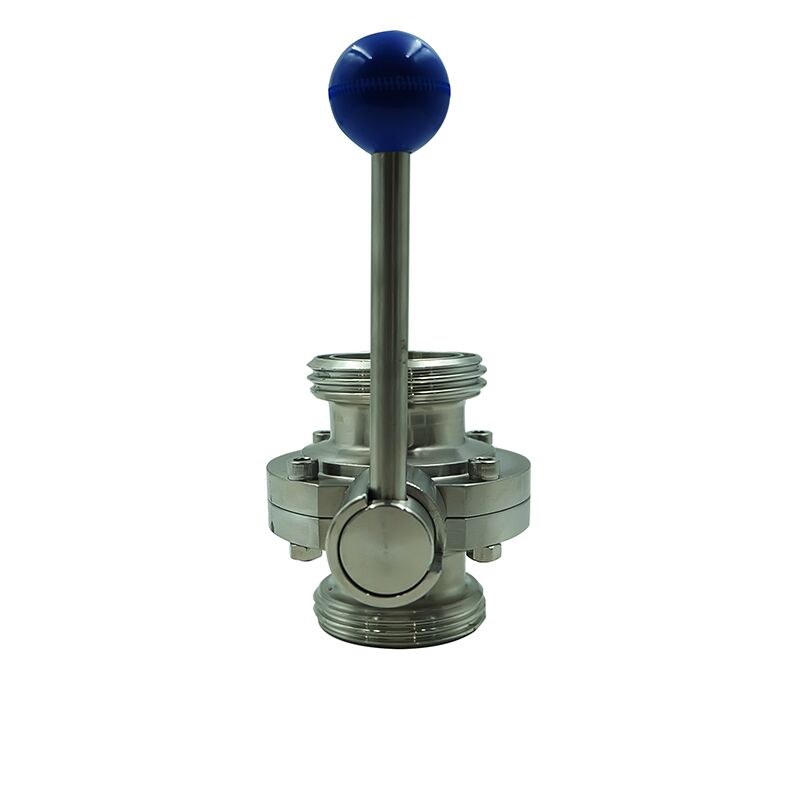

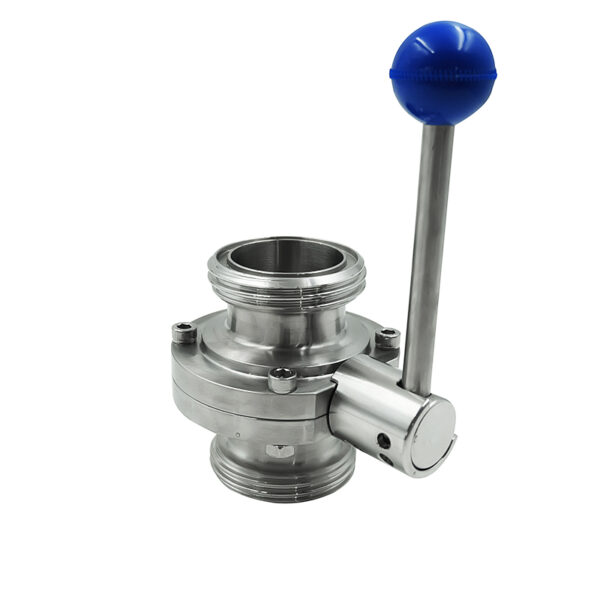

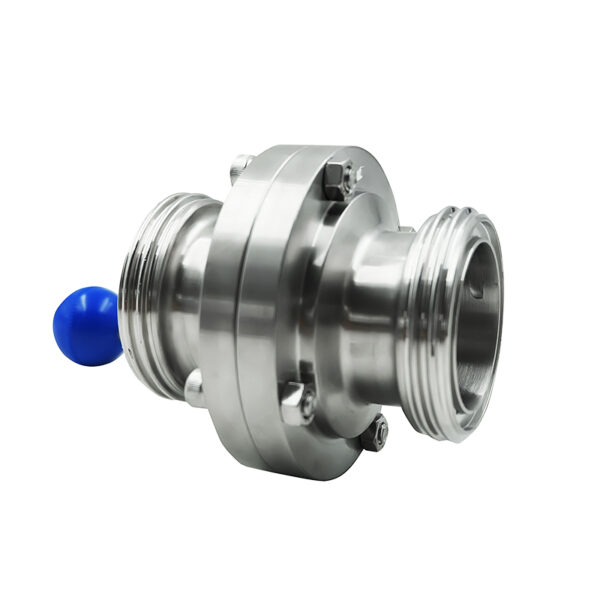

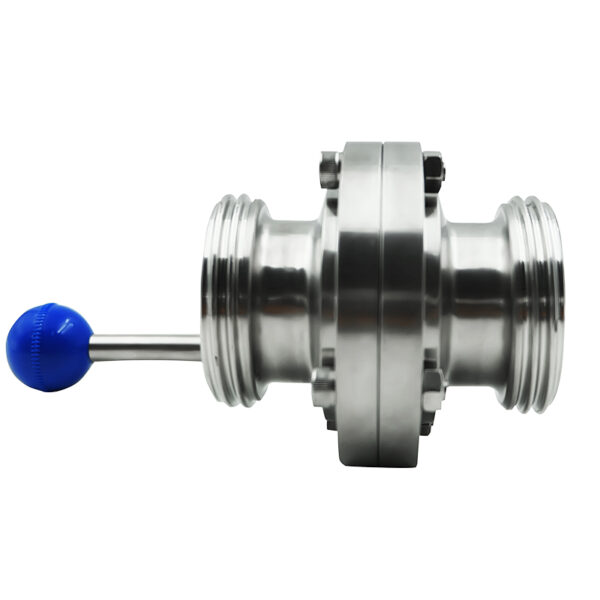

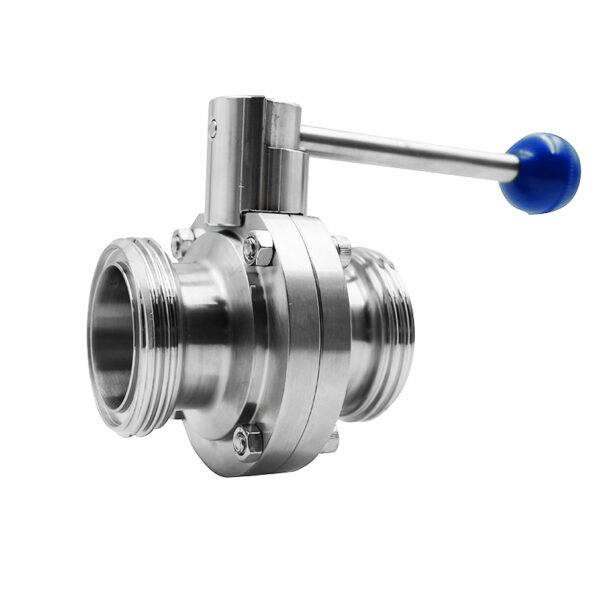

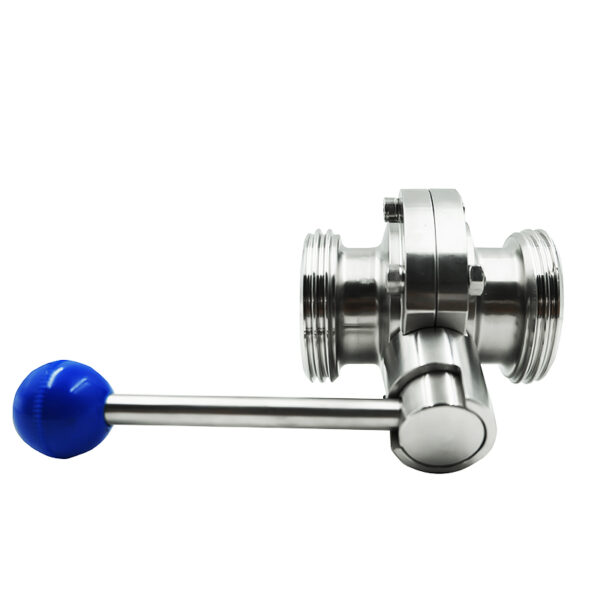

DKV Sanitary Butterfly Valve is widely used in industries such as beer, beverages, dairy, juice, pharmaceuticals, and bioengineering.
It features high-quality imported seals that meet FDA sanitary standards, ensuring exceptional hygiene and reliability.
With excellent resistance to strong acids, alkalis, and high temperatures, this valve is built for demanding sanitary applications.
The precision-forged valve core offers superior strength and pressure resistance up to 1.2 MPa, ensuring durability and preventing deformation under pressure.
| Product and media contact parts | 304 or 316L |
| Sealing material | EPDM, Silicon, Fluoroelastomer or HNBR |
| Connection type | Welding, threaded or tri-clamp type |
| Standard | ISO, 3A, SMS |
| Calibre range | DN25-DN200 |
| Withstand pressure | 10 bar |
| minimum pressure | 4 bar |
| maximum pressure | 8 bar |
Outline and Connecting Measurememt
Body Material: Stainless Steel 304/316L
Size: DN20-DN200
Connection: Tri-Clamp, Threaded, Butt Weld
Type: Pull Handle
Seat Material: EPDM, Silicone, FKM
Pressure Rating: 0 to 10 Bar
Working Temperature: -30’C to 120°C
Working medium: gas, liquid,steam
| SIZE | ΦA | ΦB | C(2#) | C(3#) | C(4#) | D(2#) | D(3#) | D(4#) | E | F | Square Core | L |
| φ19 | 16 | 19 | 147 | 137 | 147 | 72.5 | 72 | 69 | 20 | 79 | 8×8 | 47 |
| φ25 | 22.4 | 25.4 | 147 | 137 | 147 | 72.5 | 72 | 69 | 20 | 79 | 8×8 | 47 |
| φ32 | 28.8 | 31.8 | 147 | 137 | 147 | 72.5 | 72 | 69 | 20 | 79 | 8×8 | 47 |
| φ38 | 35.1 | 38.1 | 147 | 137 | 147 | 72.5 | 72 | 69 | 20 | 79 | 8×8 | 47 |
| Φ45 | 42 | 45 | 147 | 137 | 147 | 77 | 76.5 | 73.5 | 20 | 88 | 8×8 | 50 |
| φ51 | 47.8 | 50.8 | 147 | 137 | 147 | 83 | 82.5 | 79.5 | 20 | 100 | 8×8 | 52 |
| φ57 | 53 | 57 | 147 | 137 | 147 | 86 | 85.5 | 82.5 | 20 | 106 | 8×8 | 52 |
| φ63 | 59.5 | 63.5 | 168 | 163 | 150 | 91.5 | 95.5 | 87.5 | 22 | 115 | 10×10 | 54 |
| φ76 | 72.2 | 76.2 | 168 | 163 | 150 | 98 | 102 | 94 | 22 | 127 | 10×10 | 56 |
| φ89 | 84.9 | 88.9 | 168 | 163 | 150 | 104.5 | 108.5 | 100.5 | 22 | 140 | 10×10 | 58 |
| φ102 | 97.6 | 101.6 | 168 | 163 | 150 | 112.5 | 116.5 | 108.5 | 22 | 156 | 10×10 | 60 |
| φ108 | 104 | 108 | 168 | 163 | 150 | 112.5 | 116.5 | 108.5 | 22 | 156 | 10×10 | 60 |
