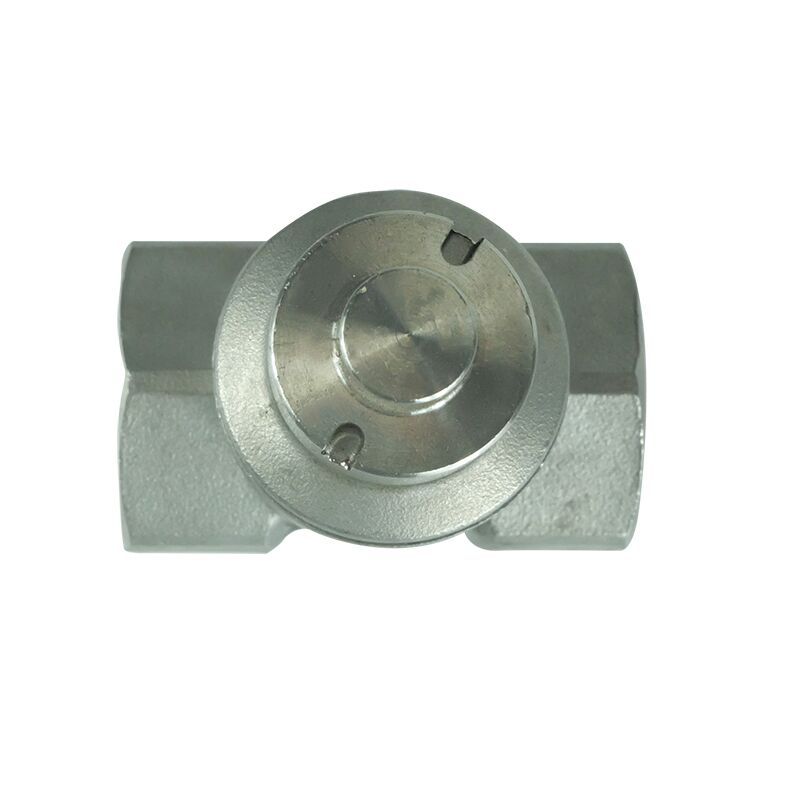

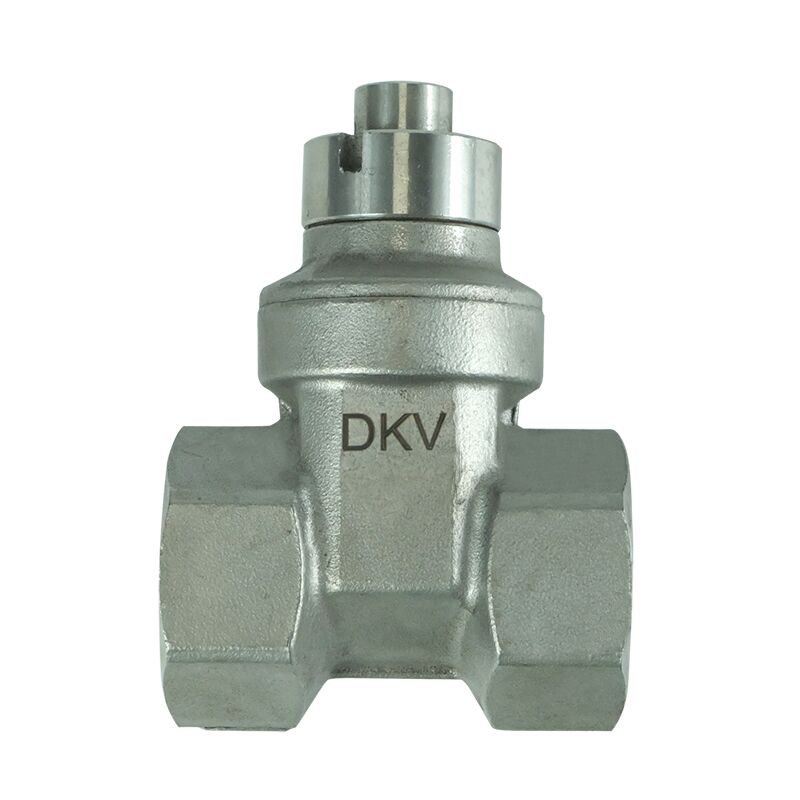

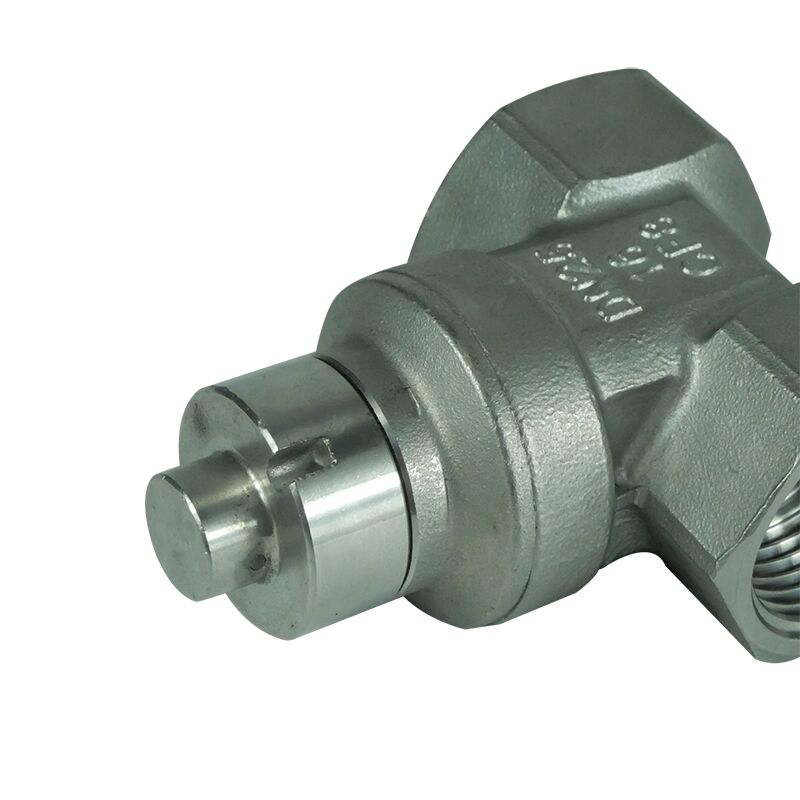

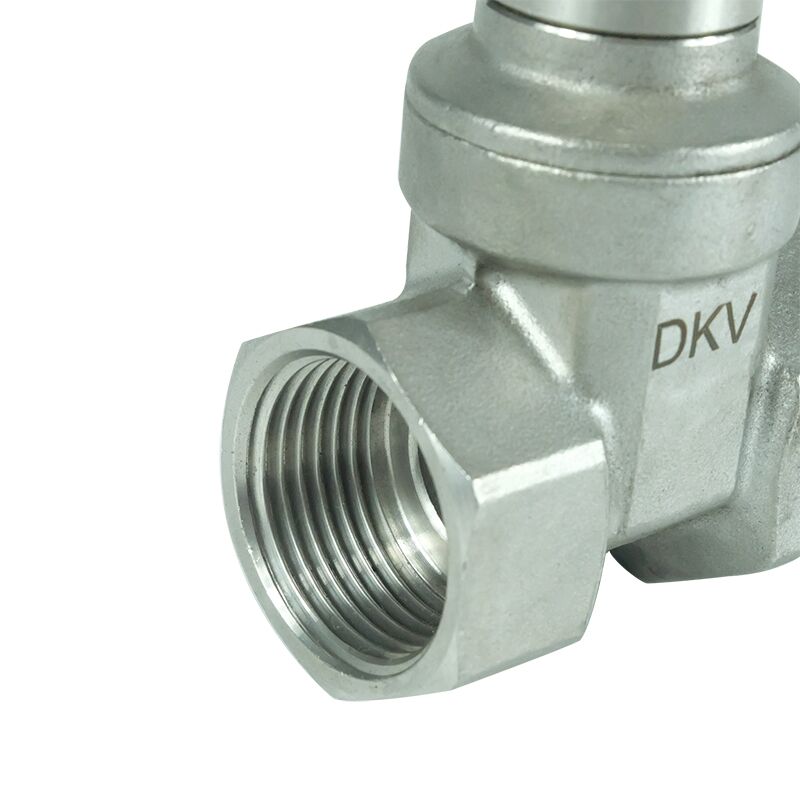

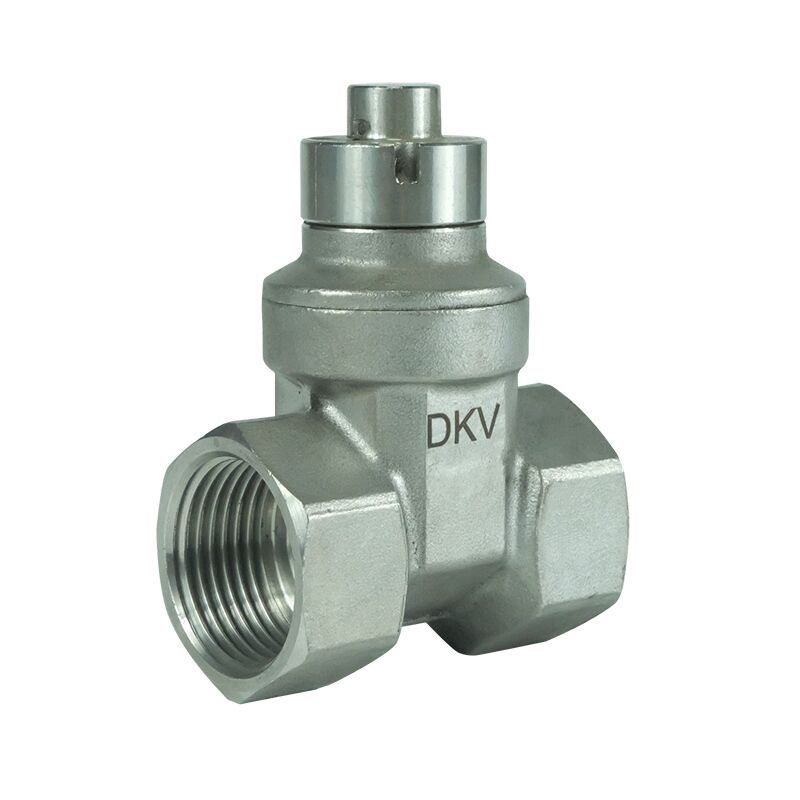

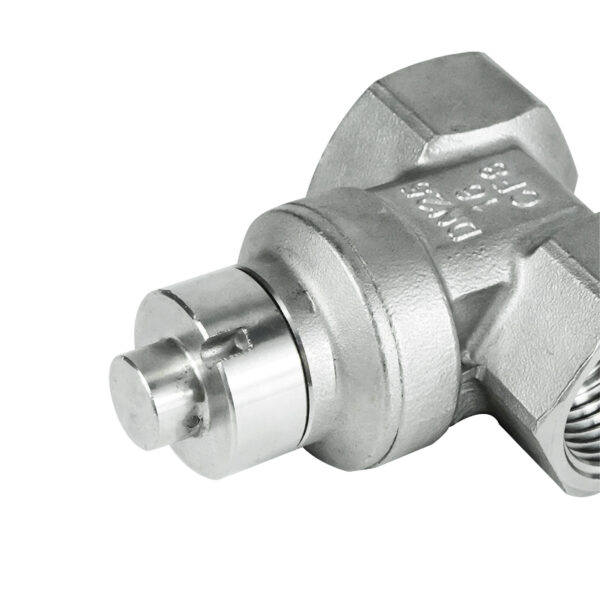

DKV Stainless Steel Screwed Gate Valve
The DKV Stainless Steel Screwed Gate Valve is designed for reliable flow isolation in compact piping systems. Made from high-grade stainless steel (SS304/316), it provides excellent corrosion and pressure resistance, ensuring durability in harsh industrial environments.
With its precision-machined threaded (screwed) connections, this valve offers a secure, leak-proof fit for easy installation and maintenance. The non-rising stem design allows smooth operation even in limited spaces, making it ideal for water, oil, gas, and chemical pipelines.
Engineered for long service life and dependable performance, the DKV Screwed Gate Valve is a trusted solution for industries requiring efficient manual flow control.
Outline and Connecting Measurememt
No. | Part Name | Qty | Material |
1 | Body | 1 | 316 Stainless Steel |
2 | Disc | 1 | 316 Stainless Steel |
3 | Seal | 1 | PTFE |
4 | Bonnet | 1 | 316 Stainless Steel |
5 | Plug | 1 | 316 Stainless Steel |
6 | Seal | 1 | PTFE |
7 | Pin | 1 | 316 Stainless Steel |
| DN | G | L | ∅1 |
| 15 | 1/2” | 48 | 15 |
| 20 | 3/4” | 49 | 20 |
| 25 | 1” | 59 | 25 |
| 32 | 1-1/4” | 66 | 32 |
| 40 | 1-1/2” | 69 | 32 |
| 50 | 2” | 81 | 50 |
