Description

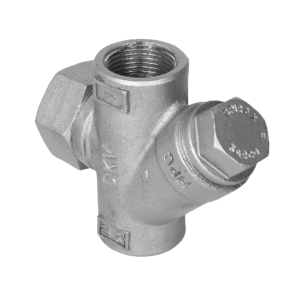

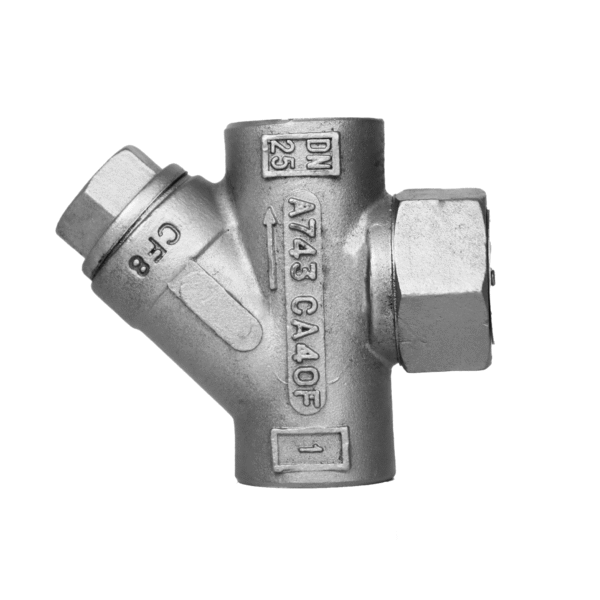

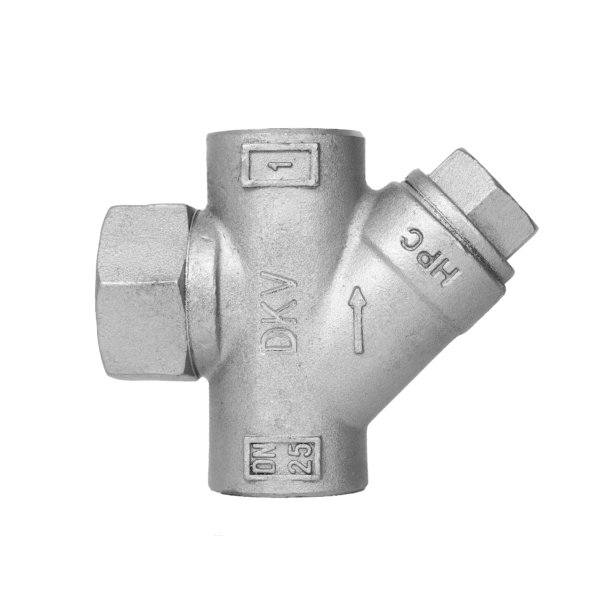

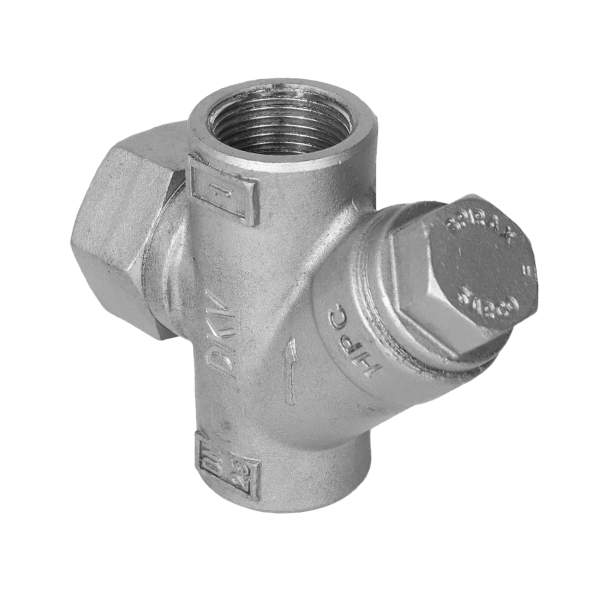

The DKV TD42 Thermodynamic Steam Trap is a simple, reliable, and efficient solution for condensate discharge. It features a movable stainless-steel valve disc that ensures clean, tight, and consistent operation.
Built to withstand superheated steam, water hammer, corrosive condensate, freezing, and vibration, the TD42 delivers long-lasting performance. It is ideal for condensate removal in steam distribution and process systems.
Outline and Connecting Measurememt
| Size | A | B | E | G | H | J | K | L | Weight |
| 3/8″ | 41 | 78 | 55 | 85 | 41 | 57 | 57 | 38 | 0.75 |
| ½”LC | 41 | 78 | 55 | 85 | 41 | 57 | 57 | 38 | 0.75 |
| ½” | 41 | 78 | 55 | 85 | 41 | 57 | 57 | 38 | 0.80 |
| ¾” | 47 | 90 | 60 | 100 | 41 | 63 | 57 | 38 | 1.00 |
Body Material: Stainless steel 304
Size: DN15-DN25
Connection: BSP/NPT Threaded
Type: Thermodynamic
Pressure Rating: PN16
Working Temperature: up to 425°C
Working medium: steam,air,condensate
Product Details
item | Value |
type | Thermodynamic Steam Trap |
structure | Control |
application | General |
place of origin | China |
power | Manual |
customized support | OEM, ODM |
port size | DN15~DN25 |
warranty | 1 year |
model number | TD42 |
temperature of media | Medium Temperature |
brand name | DKV |
media | STEAM |
Body material | Stainless Steel 304 |
Connection | BSP NPT Threaded |
Medium | Steam |
Working pressure | PN16 |
Working Temperature | Up to 400°C |
Size | DN15-DN25 |
