Description

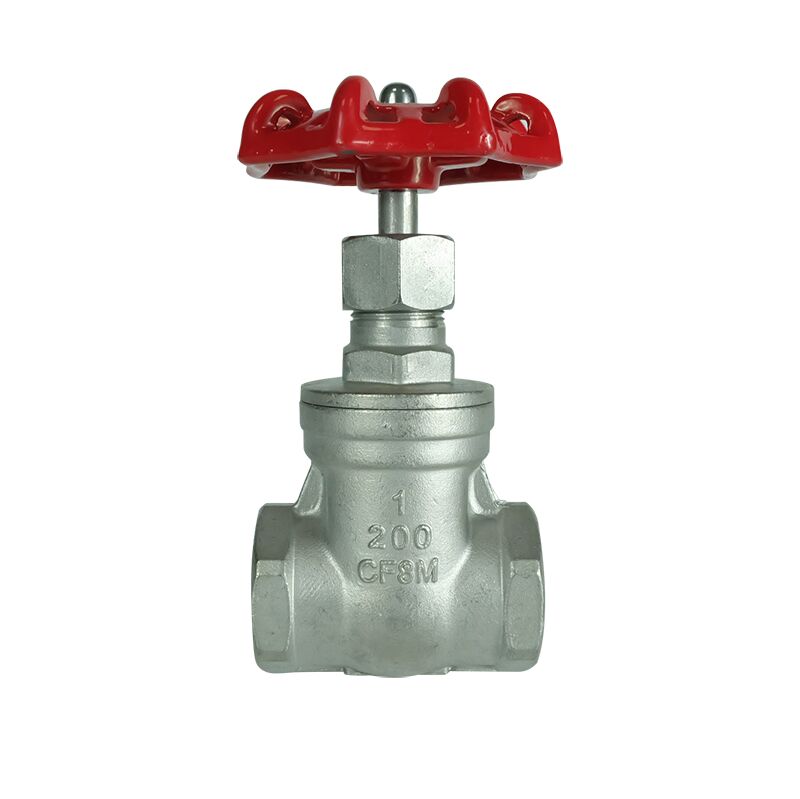

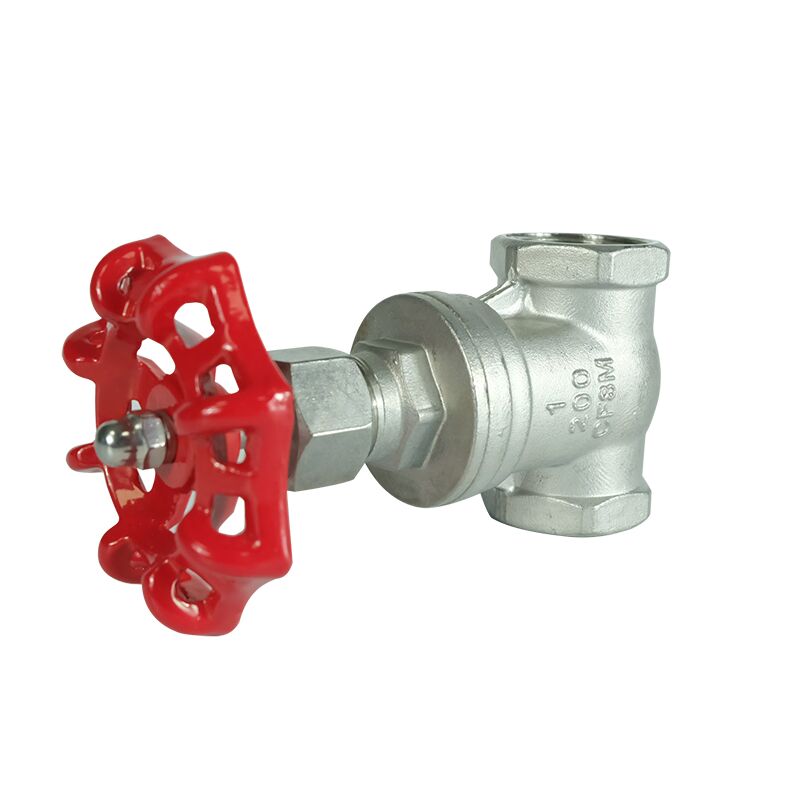

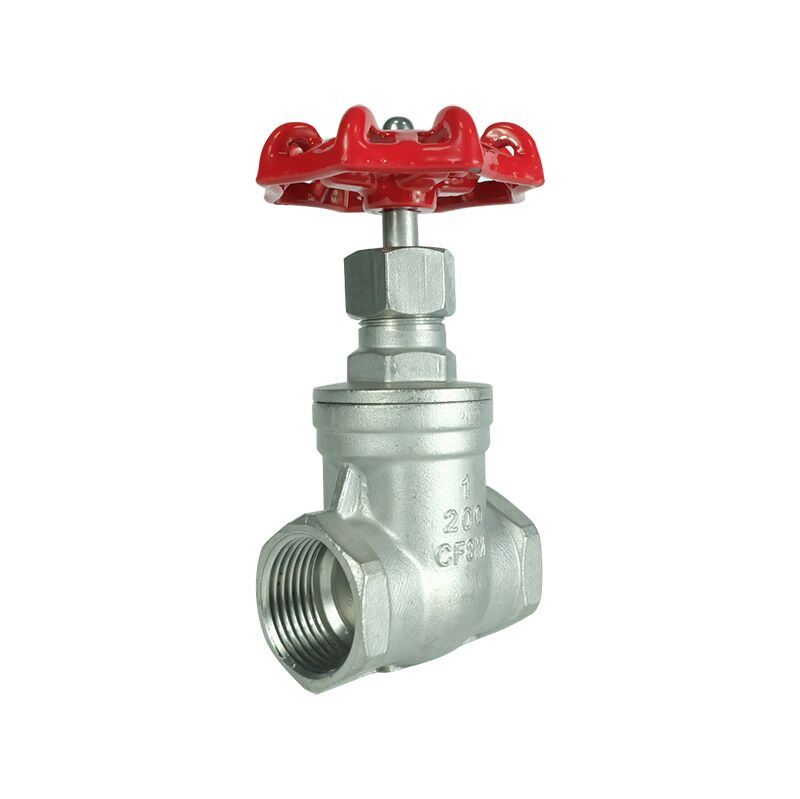

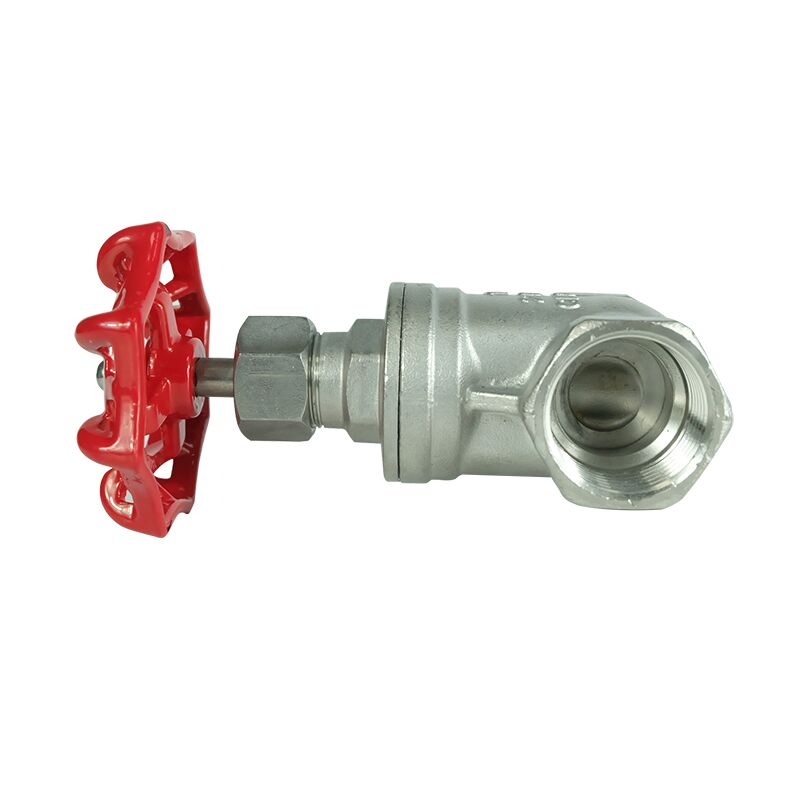

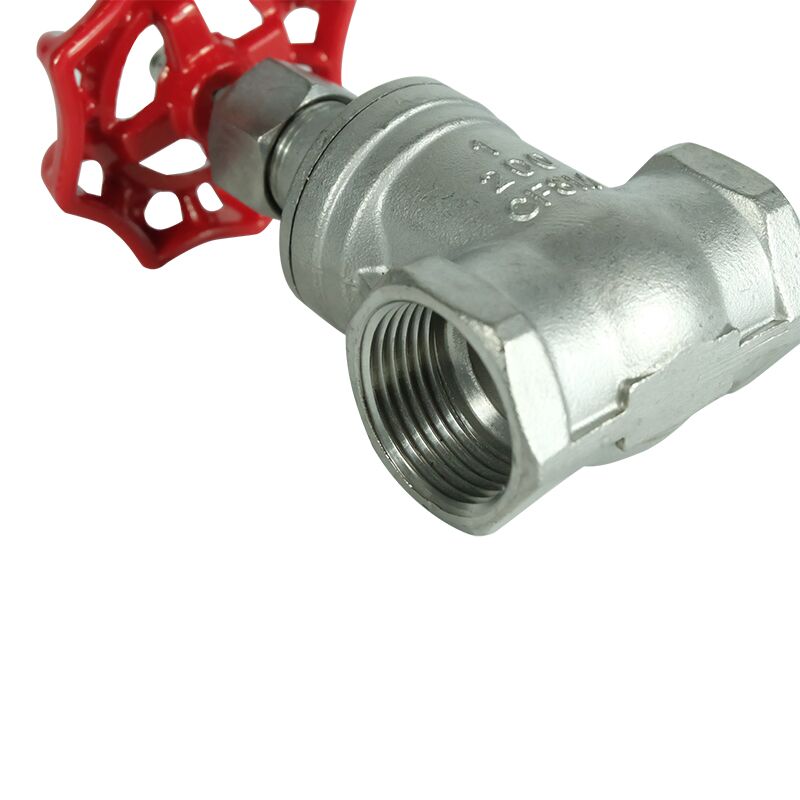

DKV gate valves are designed to start or stop water flow efficiently, offering minimal flow resistance for smooth and unobstructed media passage. Their versatile design allows installation in pipelines of various orientations, making them suitable for industries such as oil & gas, machinery manufacturing, and industrial gases.
When selecting a gate valve, it is important to consider factors such as pipe size, valve material, pressure rating, and type of end connection to ensure optimal performance and durability.
Body material : Stainless Steel 316
Size:DN15-DN50
Connection: BSP/NPT Threaded
Pressure range: 200 PSl
Temperature range: -29’C to 150°C
Application: Water, oil, gas etc.
tem | value |
structure | Gate |
application | General |
place of origin | China |
Guangdong | |
power | Manual |
customized support | OEM, ODM |
port size | DN8-DN100 |
warranty | 1 year |
model number | Z15X |
temperature of media | Normal Temperature |
brand name | DKV |
media | Water |
Connection type | BSPP/NPT Threaded |
Max.Temperature | -20℃~200℃ |
Body material | stainless steel 316 CF8M |
Seal Material | PTFE |
Working medium | Water Oil Acid |
Pressure | 200PSI WOG |
Size | DN8-DN100 |
| DN | G | L | H | Ø | B | A |
| 15 | 1/2” | 65 | 84 | 60 | 30 | 15 |
| 20 | 3/4” | 70 | 87 | 60 | 39 | 15 |
| 25 | 1” | 80 | 106 | 70 | 42 | 17 |
| 32 | 11/4” | 93 | 124 | 75 | 52 | 20 |
| 40 | 11/2” | 98 | 160 | 88 | 57 | 20 |
| 50 | 2” | 110 | 170 | 88 | 72 | 22 |
| 65 | 2.5” | 130 | 203 | 125 | 88 | 28 |
| 80 | 3” | 142 | 232 | 135 | 105 | 28 |
| 100 | 4” | 167 | 272 | 148 | 128 | 32 |

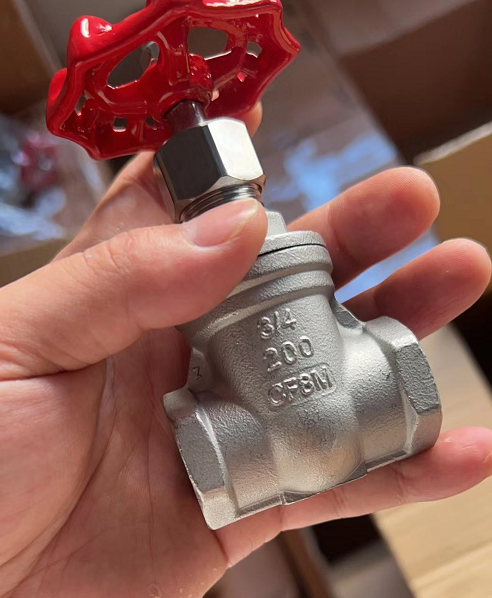

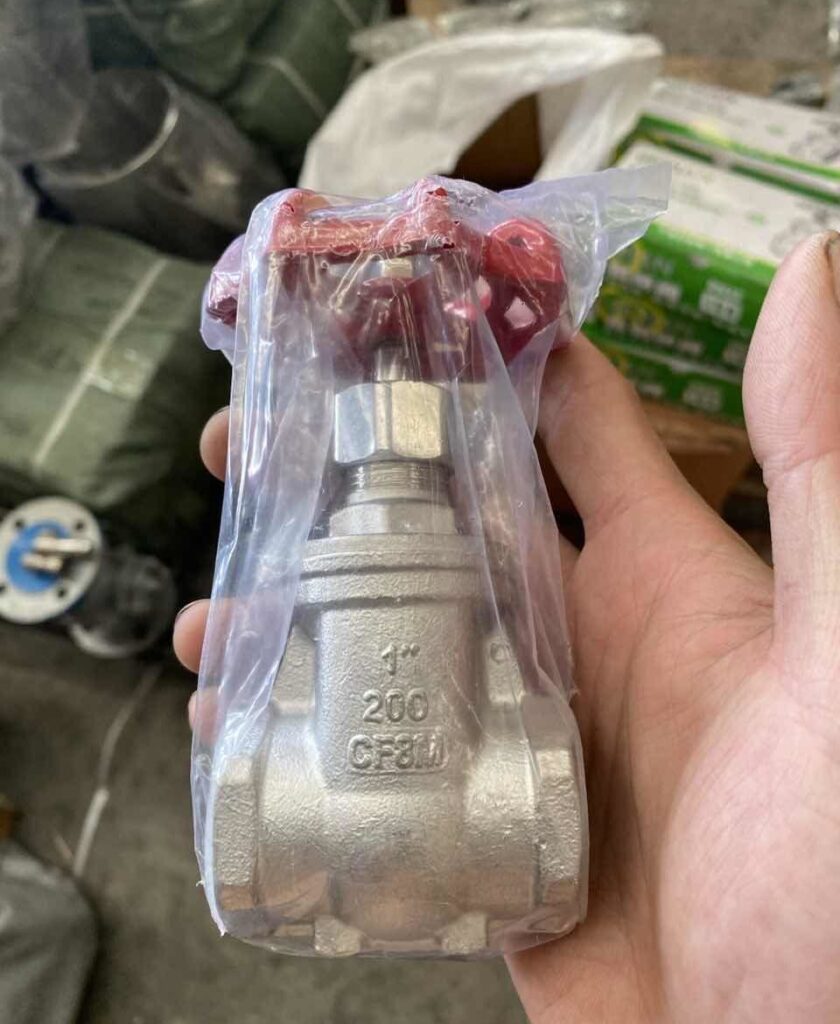

Product Details
