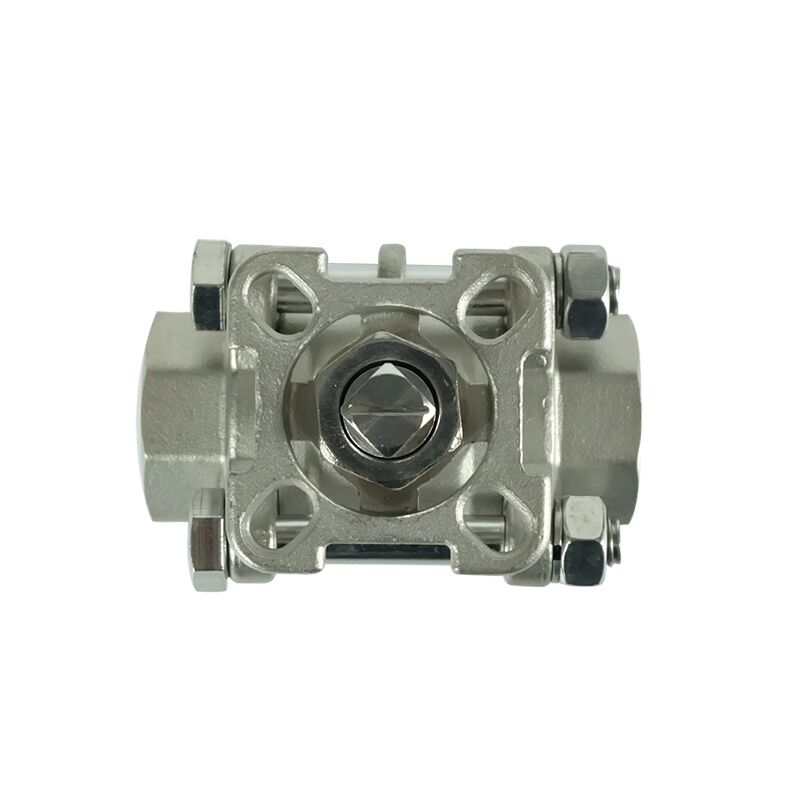

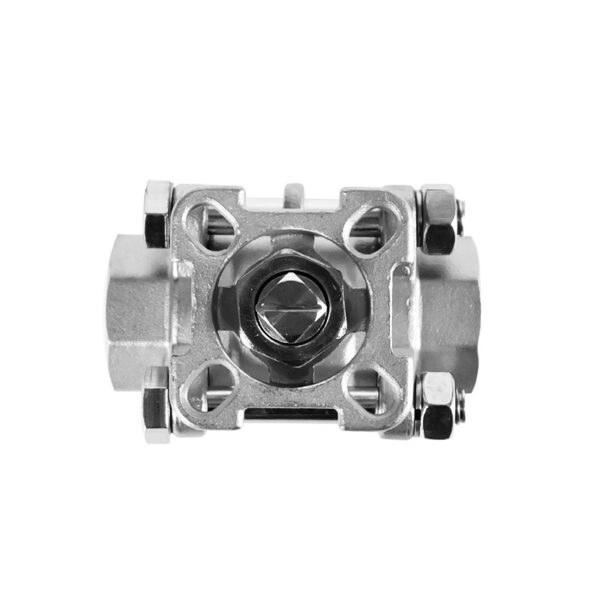

3PC Ball Valve Mounting Pad
High flow values
Long service life
Easy to inspect or revise

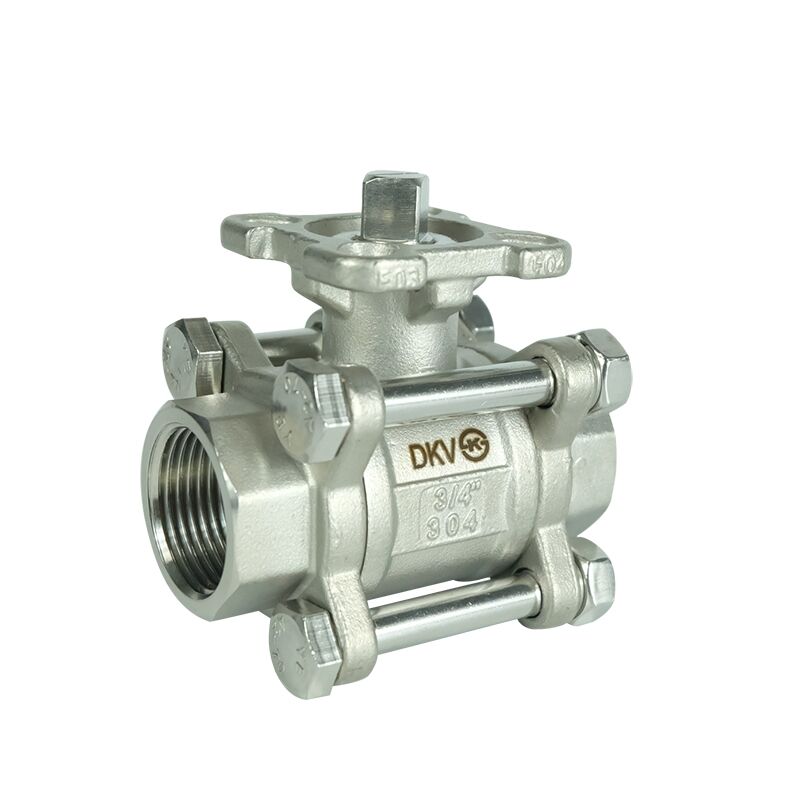

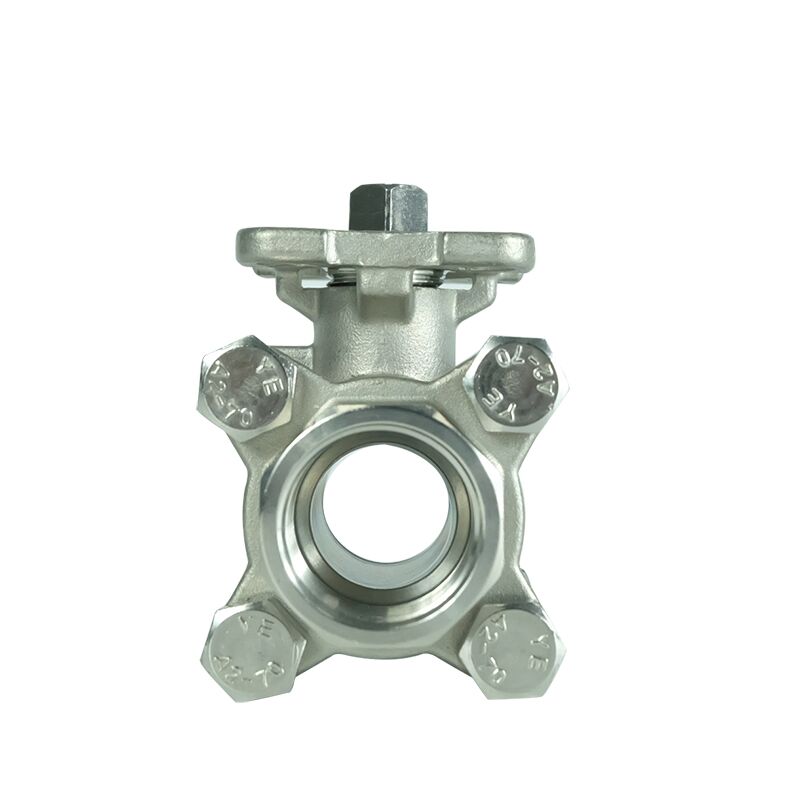

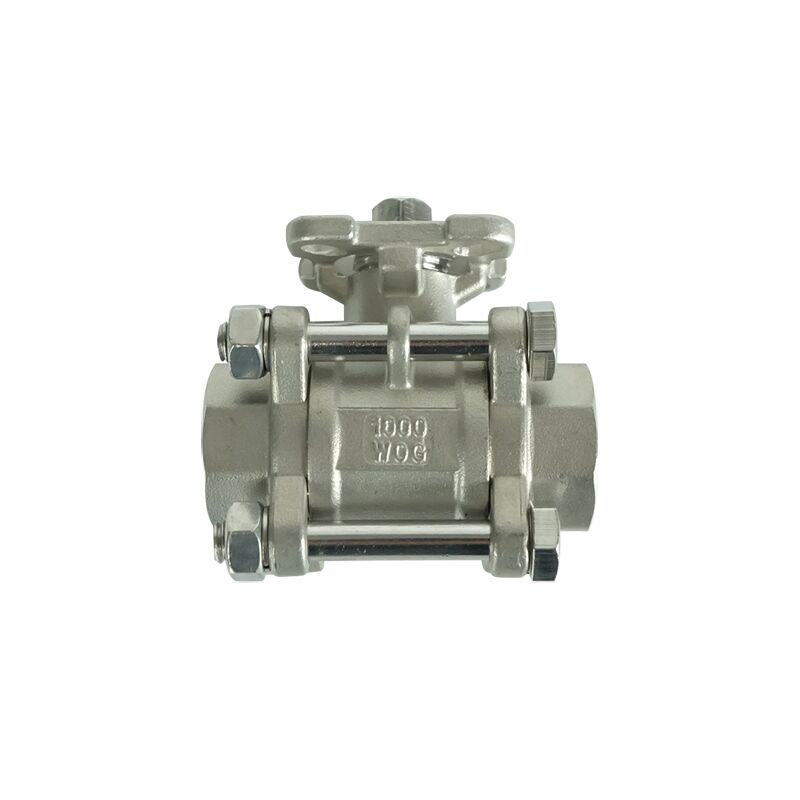

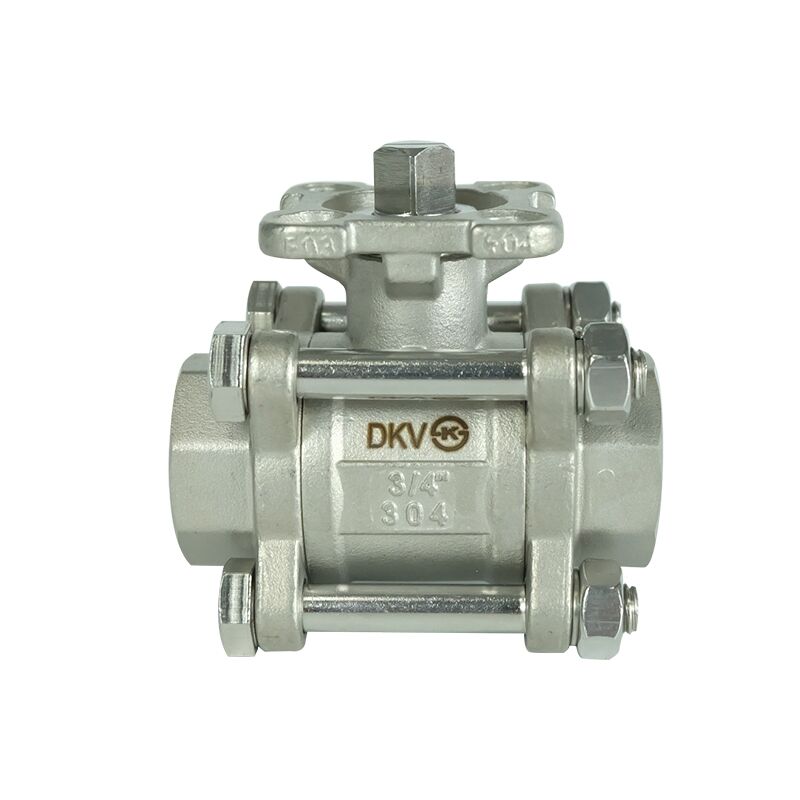

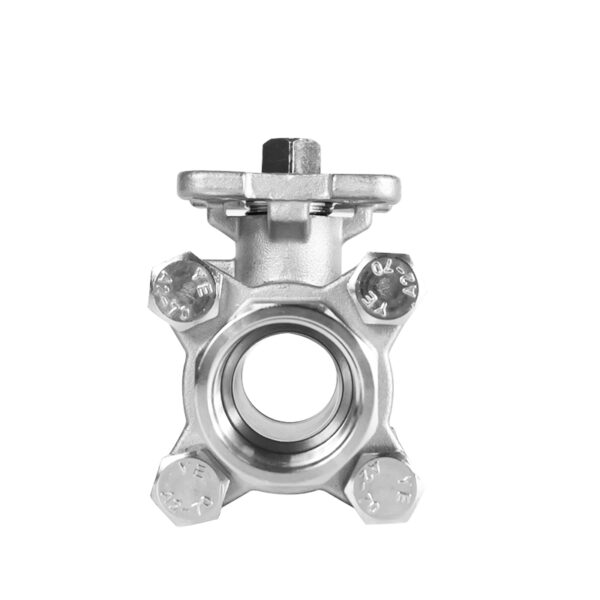

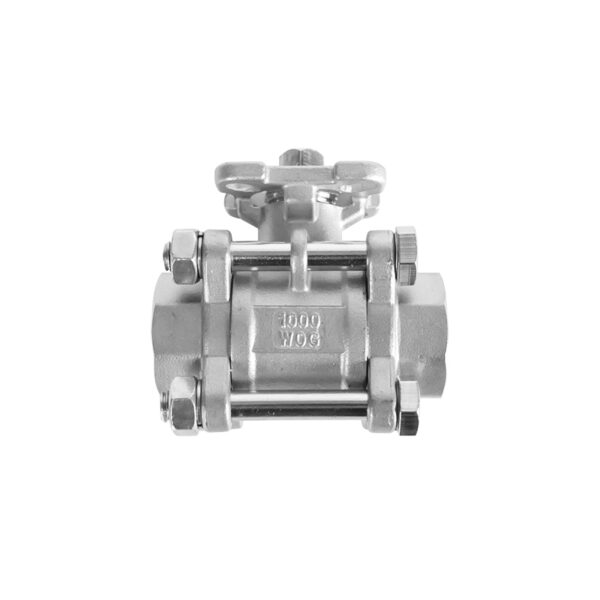

DKV Stainless Steel High Platform Threaded 3PC Ball Valve – Precision, Strength & Easy Automation
The DKV Stainless Steel High Platform 3-Piece Ball Valve is engineered for reliable shut-off and easy automation in industrial piping systems. Constructed from SS304 or SS316 stainless steel, it delivers superior corrosion resistance and durability for water, oil, gas, and chemical applications.
The high mounting platform allows direct installation of pneumatic or electric actuators—no extra brackets required—making it ideal for automated control systems. Its three-piece body design ensures effortless maintenance and cleaning without removing the valve from the pipeline.
Key Features:
High platform design for easy actuator installation
3-piece body for convenient disassembly and maintenance
Precision-engineered stainless steel (SS304/SS316) body
PTFE seats ensuring tight sealing and smooth operation
BSP/NPT threaded ends available (1/4″–4″)
Suitable for water, oil, gas, and corrosive media
Outline and Connecting Measurememt
Dimensions
| Size | d | D | T | L | H | h | K*K | A | B | Ra | Rb | w | H1 | |
| 1” | DN25 | 22 | 25 | 1.2 | 98.2 | 45 | 9 | 9*9 | 36 | 42 | 3 | 3 | 125 | 82 |
| 1-1/2” | DN40 | 35 | 38 | 1.2 | 124 | 61 | 9 | 9*9 | 42 | 50 | 3 | 3.5 | 140 | 95 |
| 2” | DN50 | 47.5 | 51 | 1.2 | 137 | 79 | 14 | 14*14 | 50 | 70 | 3.5 | 4.5 | 180 | 115 |
| 2-1/2” | DN65 | 59 | 63.5 | 1.2 | 148 | 88 | 14 | 14*14 | 70 | 102 | 4.5 | 5.5 | 180 | 124 |
| 3” | DN80 | 73 | 76.1 | 1.6 | 198 | 108 | 17 | 17*17 | 70 | 102 | 4.5 | 5.5 | 260 | 148 |
| 4” | DN100 | 97.5 | 101.6 | 2 | 235 | 130 | 17 | 17*17 | 70 | 102 | 4.5 | 5.5 | 260 | 170 |
Item | Ball Value |
Application | General |
Port Size | DN8-DN100 |
Warranty | 1 year |
Place of Origin | Guangdong China |
Power | Manual |
Temperature of Media | Low Temperature, Medium Temperature, Normal Temperature |
Brand Name | DKV |
Structure | Ball |
Media | Water |
Customized support | OEM, ODM |
Body material | Stainless Steel 304 |
Working pressure | PN63/1000WOG |
Work Temperature | -20℃-200℃ |
Medium | Water, Oil, Gas |
Connection | G, NPT, BSPT, BSP |
