3 Way Stainless Steel Ball Valve

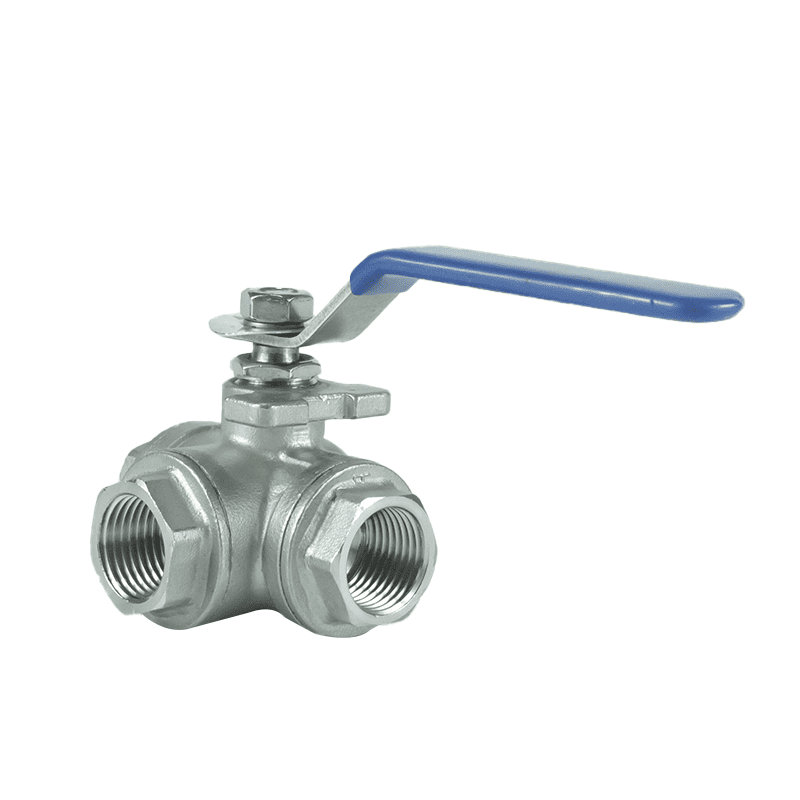

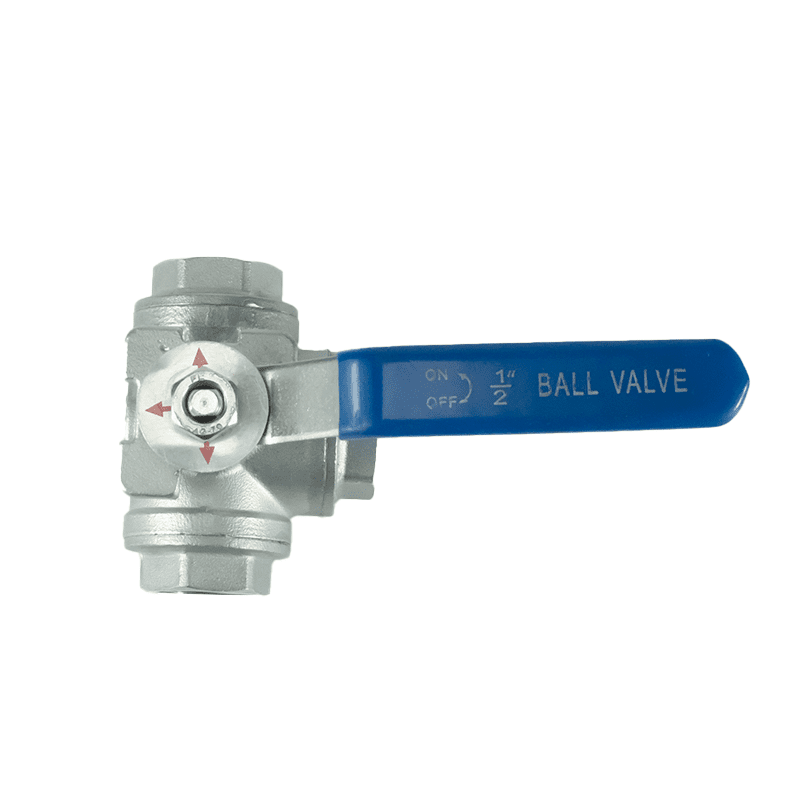

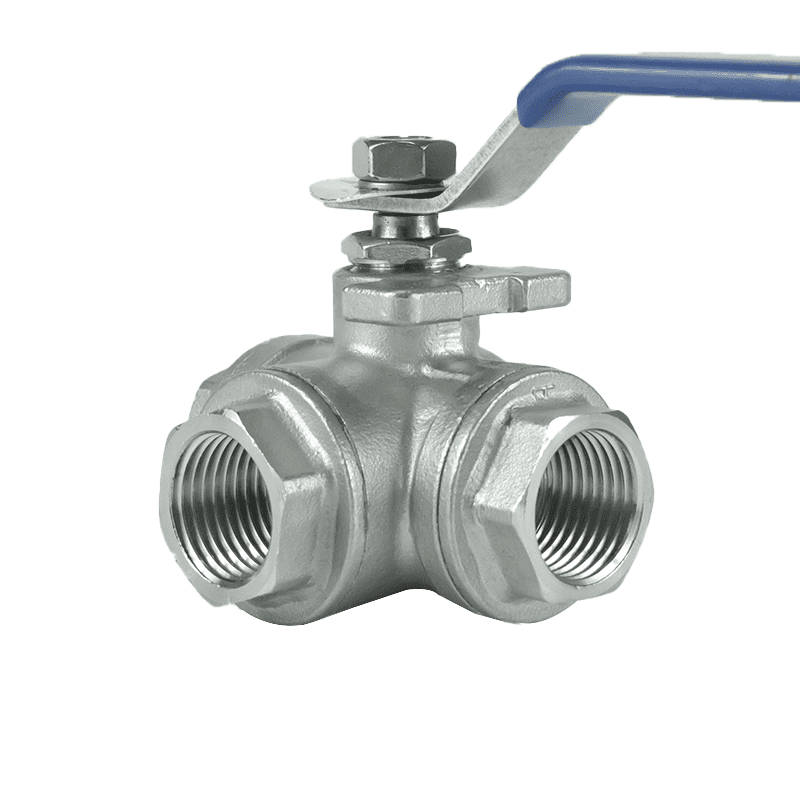

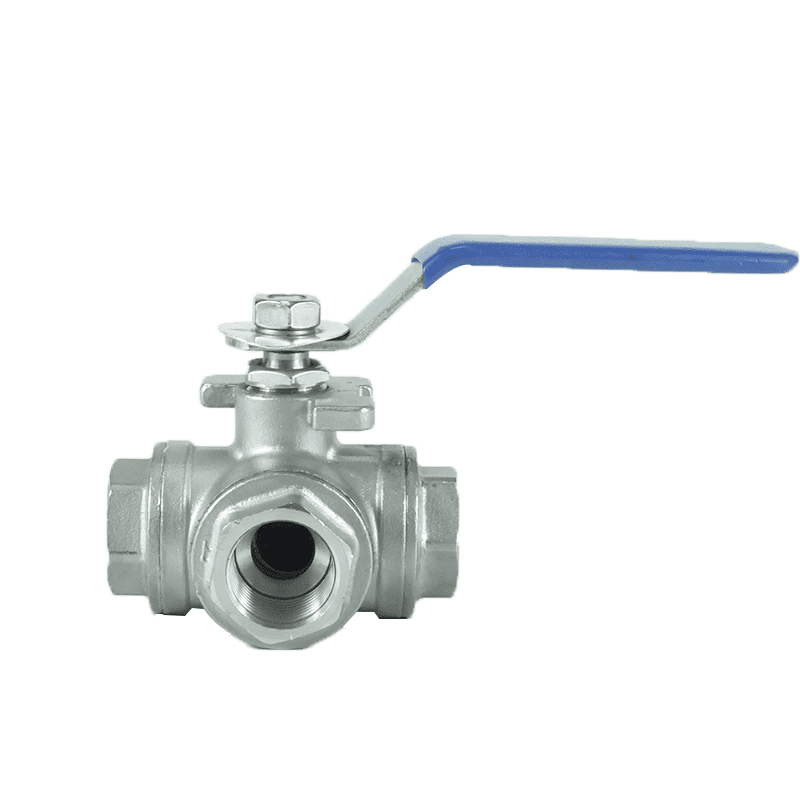

DKV 3 Way Stainless Steel Ball Valve – Reliable Flow Direction Control
The DKV 3 Way Stainless Steel Ball Valve is designed for diverting, mixing, or distributing flow in complex piping systems. Made from high-grade stainless steel (SS304/SS316), it offers excellent corrosion resistance, ensuring long-lasting performance in water, oil, gas, and chemical applications.
Available in L-port or T-port configurations, this valve allows flexible flow direction control while maintaining tight sealing and low torque operation. The full-bore design minimizes pressure loss, and the blow-out-proof stem enhances operational safety.
Key Features:
3-way design for diverting or mixing flow
Stainless steel 304/316 body with corrosion resistance
L/T port options for flexible piping systems
Full bore for smooth flow and minimal pressure drop
PTFE seats for excellent sealing performance
Ideal for chemical, water treatment, and industrial automation
Outline and Connecting Measurememt
Dimensions:
Size | d | L | H | H1 | E | Connection |
1/4” | 8 | 65 | 62.5 | 36 | 120 | NPT, BSP |
3/8” | 8 | 65 | 62.5 | 36 | 120 | |
1/2” | 12 | 68 | 62.5 | 36 | 120 | |
3/4” | 15 | 75 | 66 | 39 | 120 | |
1” | 18 | 85 | 77 | 46.5 | 160 | |
1 1/4” | 25 | 110 | 86 | 55 | 160 | |
1 1/2” | 32 | 125 | 101.5 | 64.5 | 190 | |
2” | 38 | 145 | 107.5 | 70.5 | 190 |
Item | Ball Value |
Application | General |
Port Size | DN15-DN200 |
Warranty | 1 year |
Place of Origin | Guangdong China |
Model Number | Q11F |
Power | Manual |
Temperature of Media | Low Temperature, Medium Temperature, Normal Temperature |
Brand Name | DKV |
Structure | BALL |
Media | Water |
Customized Support | OEM |
Body Material | Stainless steel 304 |
Connection | NPT BSP Thread |
Working Medium | Water,Gas,Oil |
Working Pressure | PN16/PN25/PN40/PN63/1000 PSI |
Work Temperature | -20℃~200℃ |
Seal Material | PTFE |
Product Details
A ball valve is a quarter-turn valve that regulates the flow of liquids and gases through a spherical ball with a hollow bore.
When the ball is rotated 90 degrees, the bore either aligns with the pipeline to allow flow or turns perpendicular to block it, creating a secure seal.
Known for their durability, reliability, and fast shut-off capability, ball valves are widely used in plumbing, gas systems, and diverse industrial applications.
