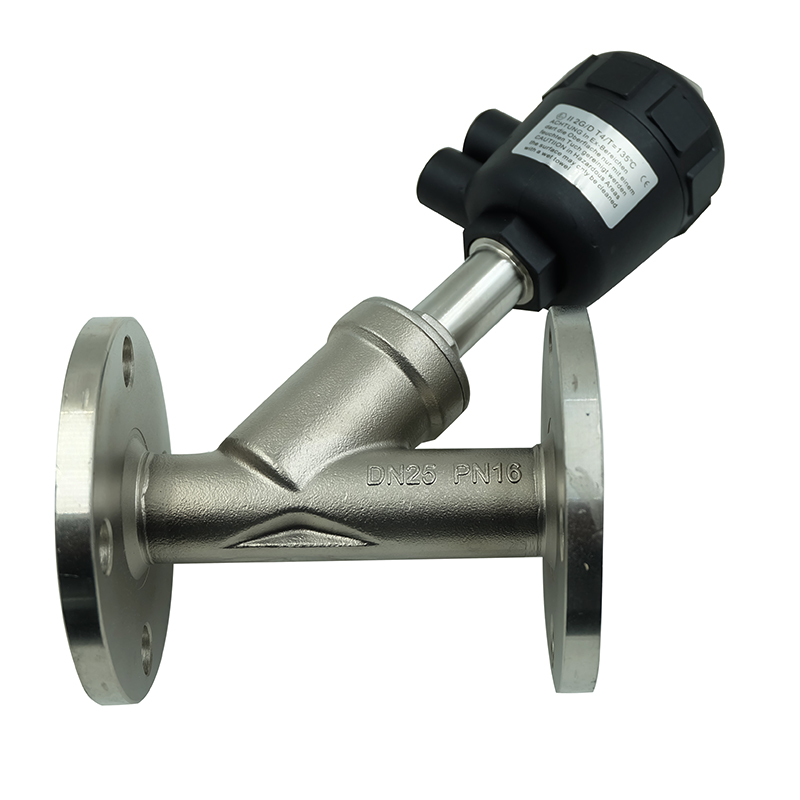

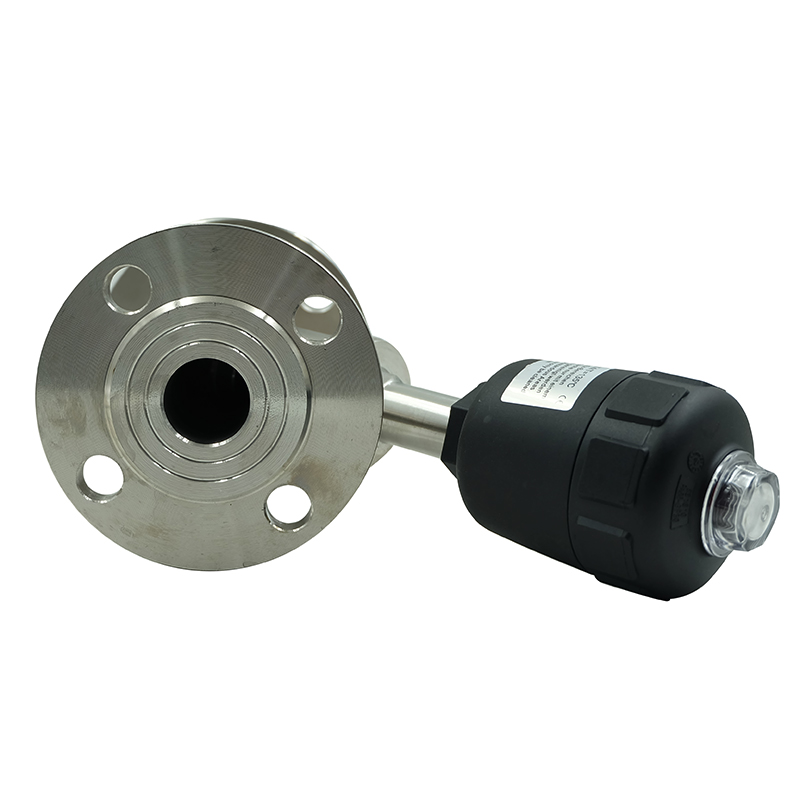

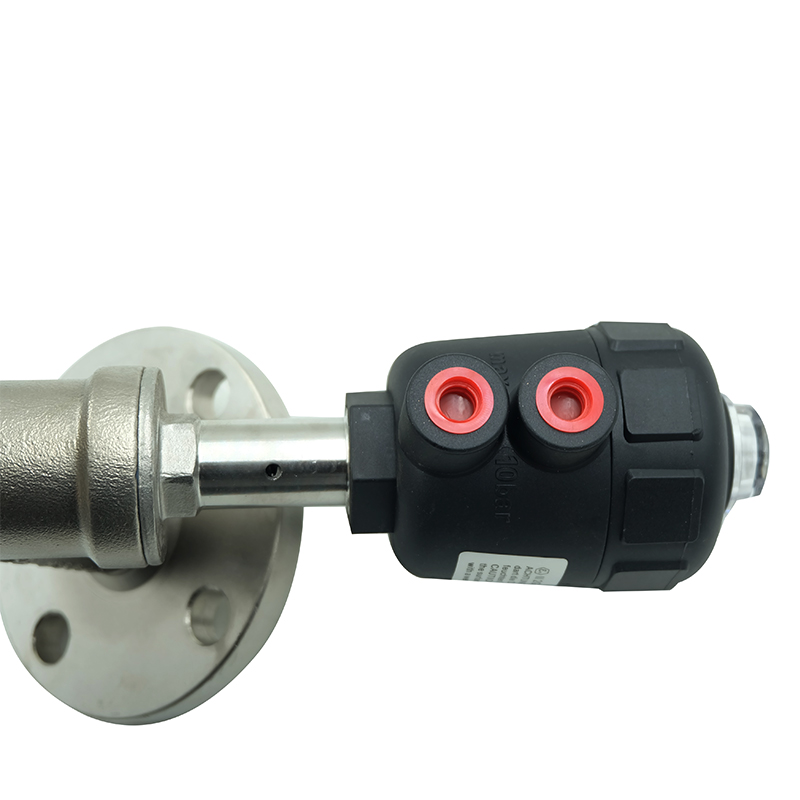

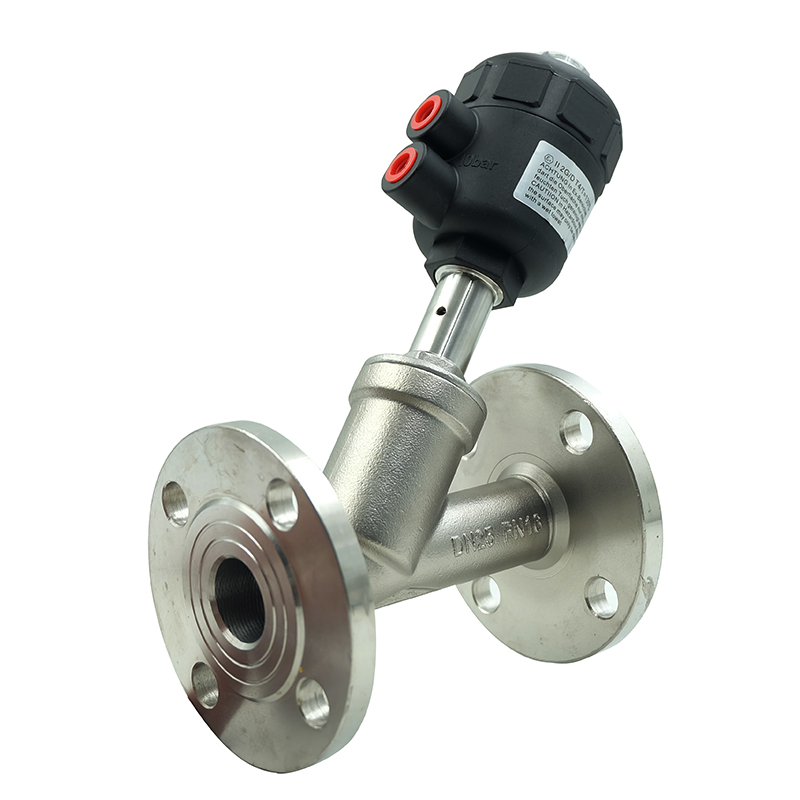

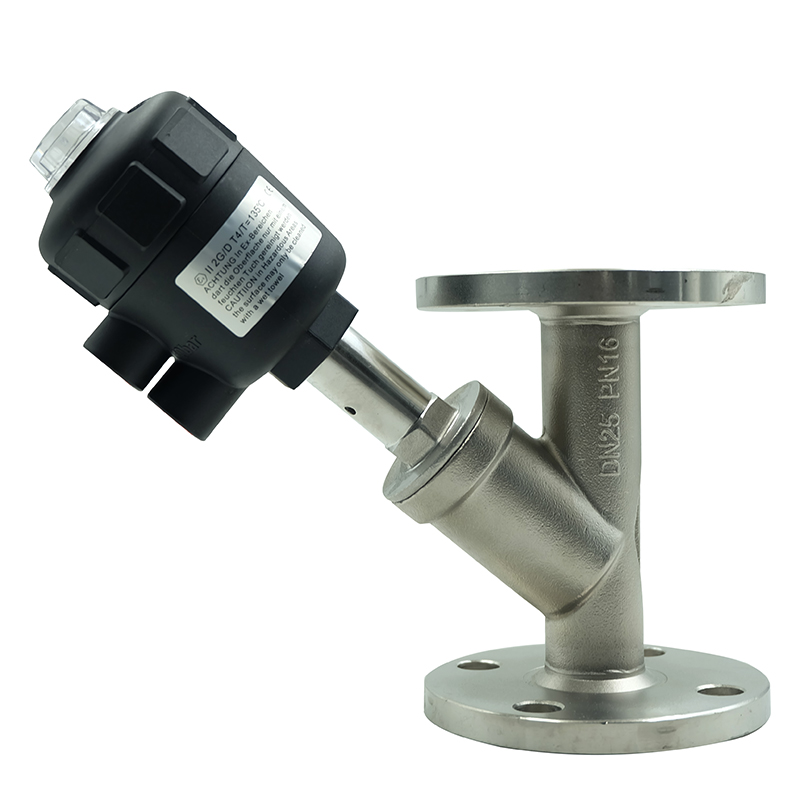

DKV Pneumatic Angle Seat Valve
The DKV Pneumatic Angle Seat Valve features an inclined seat design and operates with a stainless steel or plastic pneumatic actuator for reliable performance. It is suitable for controlling gases, liquids, steam, and corrosive media in various industrial applications.
Equipped with a radiator between the valve body and actuator, it effectively protects the actuator from heat, extending service life and ensuring long-term stability and durability.
Key Features:
-
Inclined seat design for efficient flow control
-
Compatible with gases, liquids, steam, and corrosive media
-
Available with stainless steel or plastic actuators
-
Radiator design protects actuator and prolongs service life
-
Ideal for industrial automation and process control systems
Outline and Connecting Measurememt
Actuator Material: Stainless Steel or Plastic
Body Material: Stainless Steel 304/316L
Connection: Flanged
Size: DN15-DN100
Pressure Range: 0.3~0.8MPa
Temperature Range: -30’C~+180°C
Seat Material: PTFE
Working Medium: Air, Water, Oil, Gas,Steam
| DN | L | C | f | D | D1 | D2 | H | A | B | N-Φd | Actuator |
| 15 | 120 | 14 | 2 | 95 | 65 | 40 | 137 | 180 | 64 | 4-Φ14 | Φ50 |
| 20 | 130 | 14 | 2 | 105 | 75 | 50 | 145 | 185 | 64 | 4-Φ14 | Φ50 |
| 25 | 140 | 14 | 2 | 115 | 85 | 60 | 173 | 210 | 80 | 4-Φ14 | Φ63 |
| 32 | 150 | 16 | 2 | 135 | 100 | 70 | 210 | 240 | 80 | 4-Φ18 | Φ63 |
| 40 | 180 | 16 | 2 | 145 | 110 | 80 | 260 | 245 | 80 | 4-Φ18 | Φ63 |
| 50 | 195 | 16 | 2 | 160 | 125 | 92 | 300 | 295 | 100 | 4-Φ18 | Φ80 |
| 65 | 230 | 18 | 2 | 185 | 145 | 115 | 315 | 320 | 126 | 4-Φ18 | Φ100 |
| 80 | 250 | 18 | 2 | 195 | 160 | 130 | 330 | 330 | 126 | 8-Φ18 | Φ100 |
| 100 | 280 | 18 | 2 | 215 | 180 | 150 | 350 | 360 | 156 | 8-Φ18 | Φ125 |
