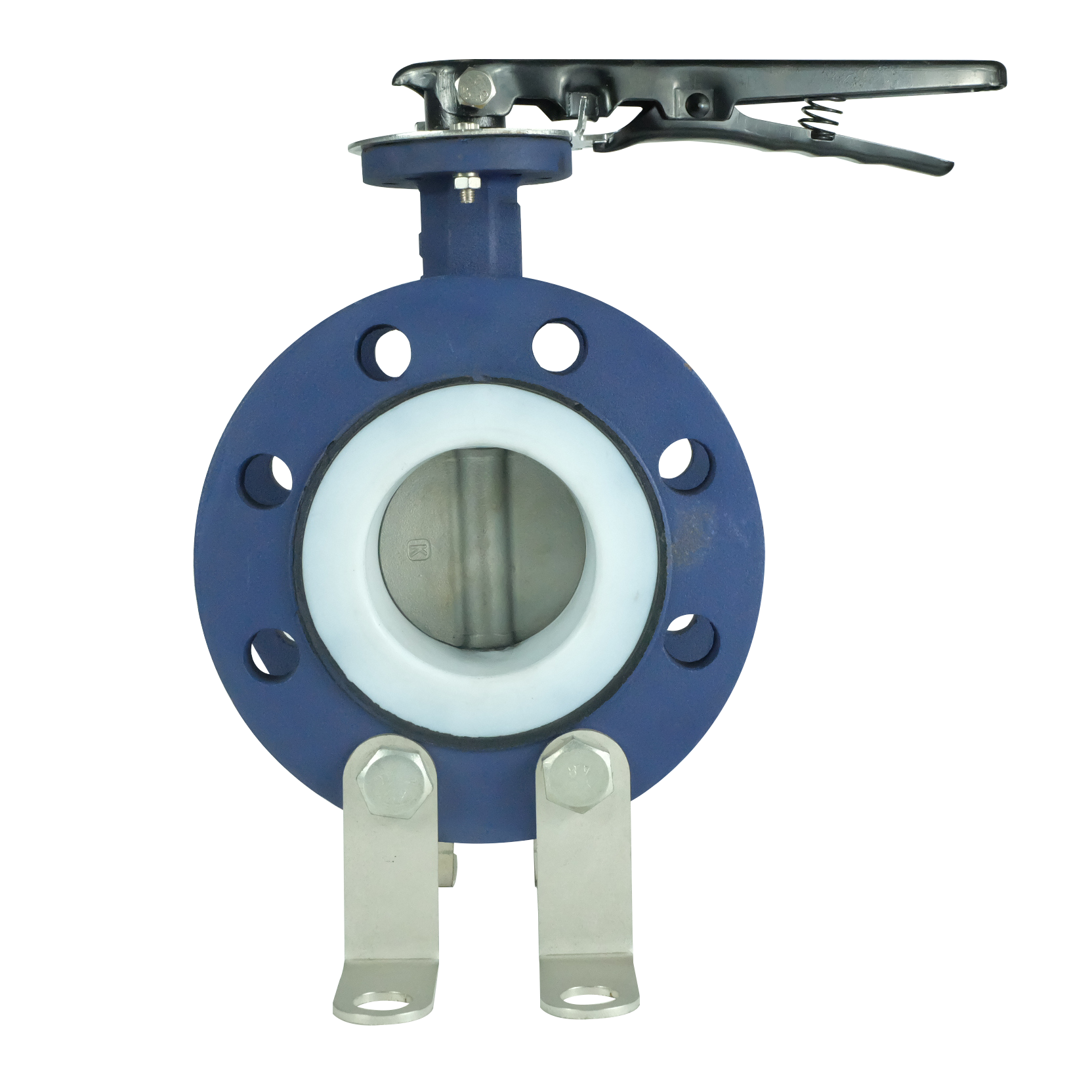

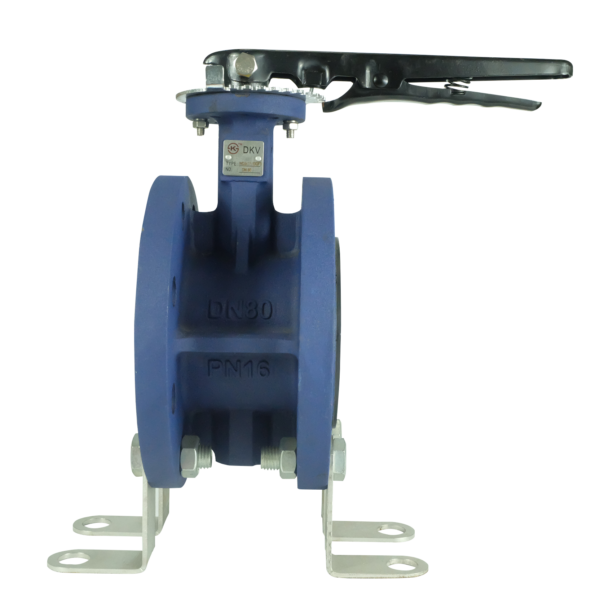

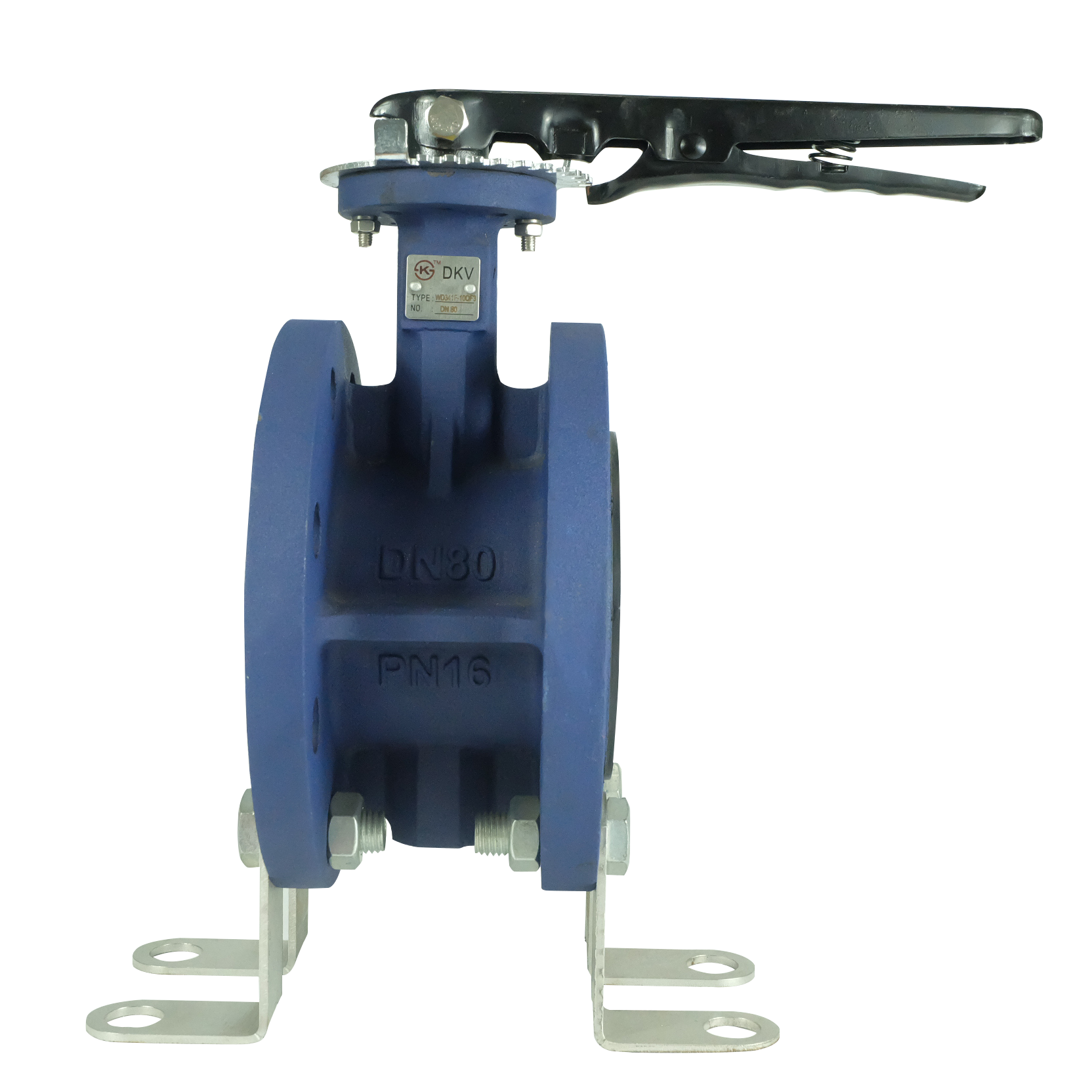

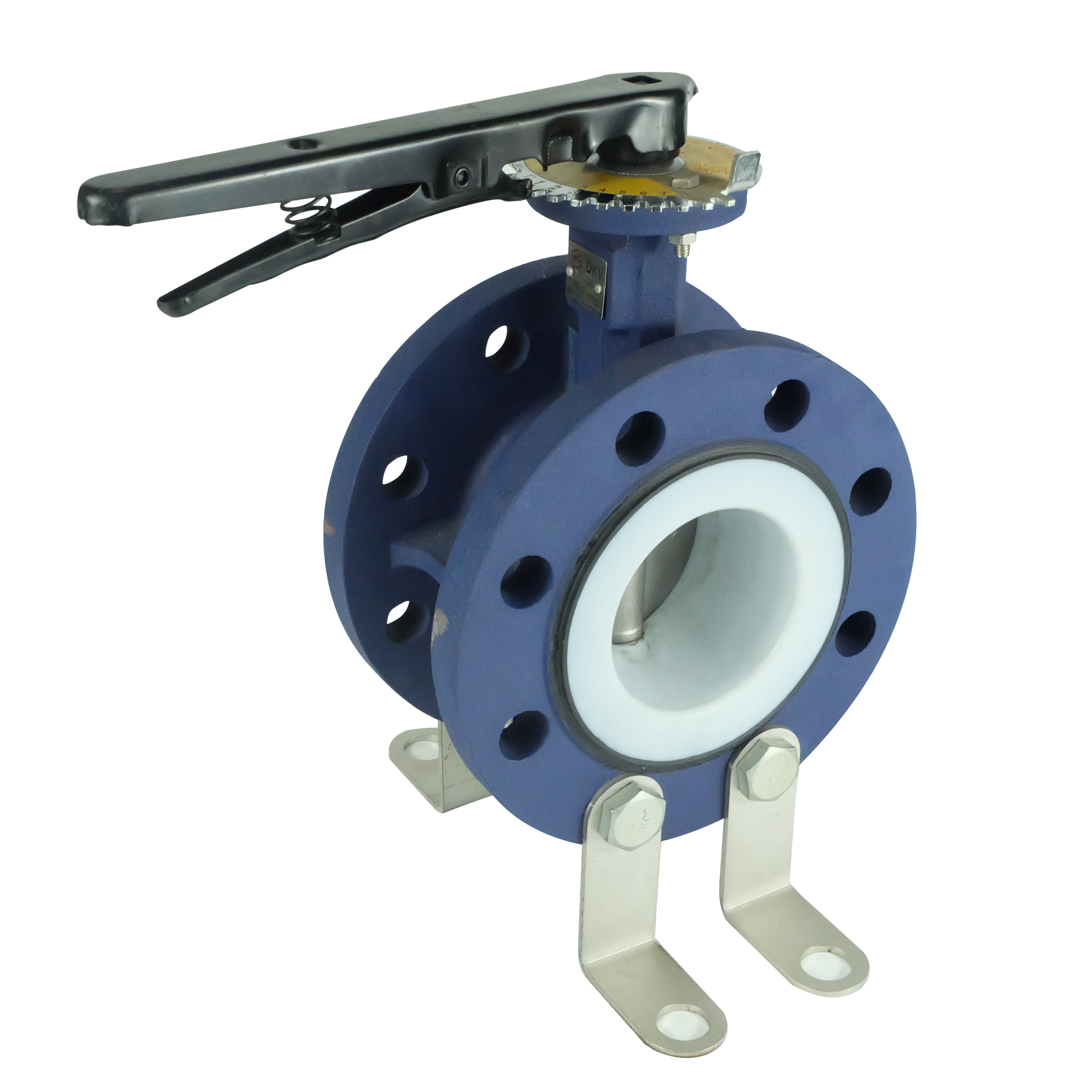

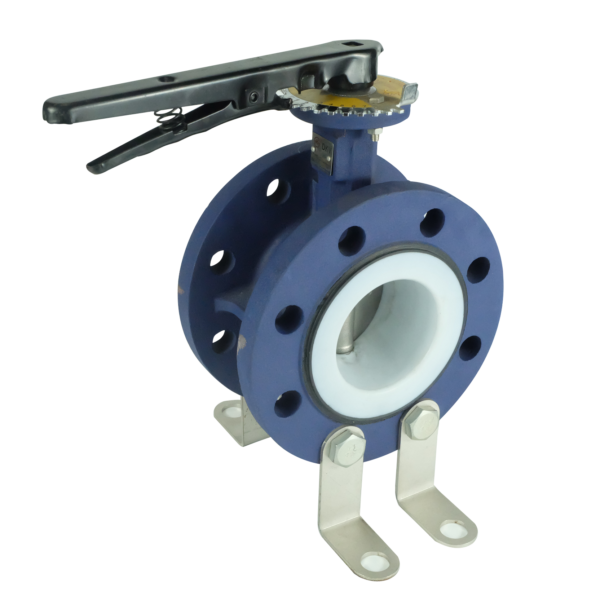

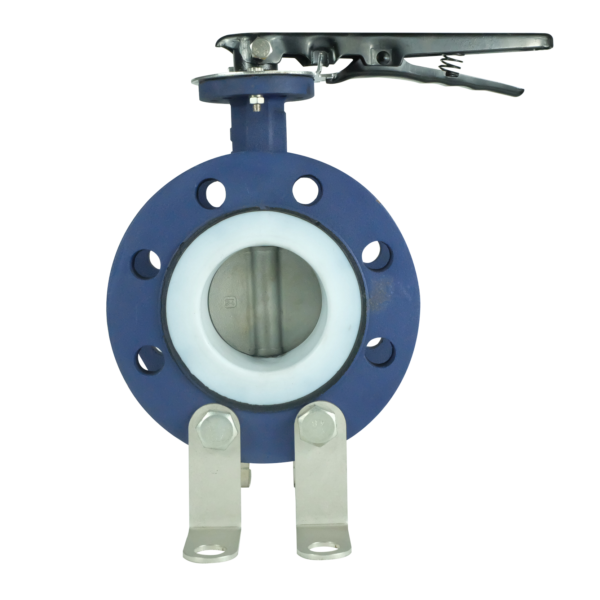

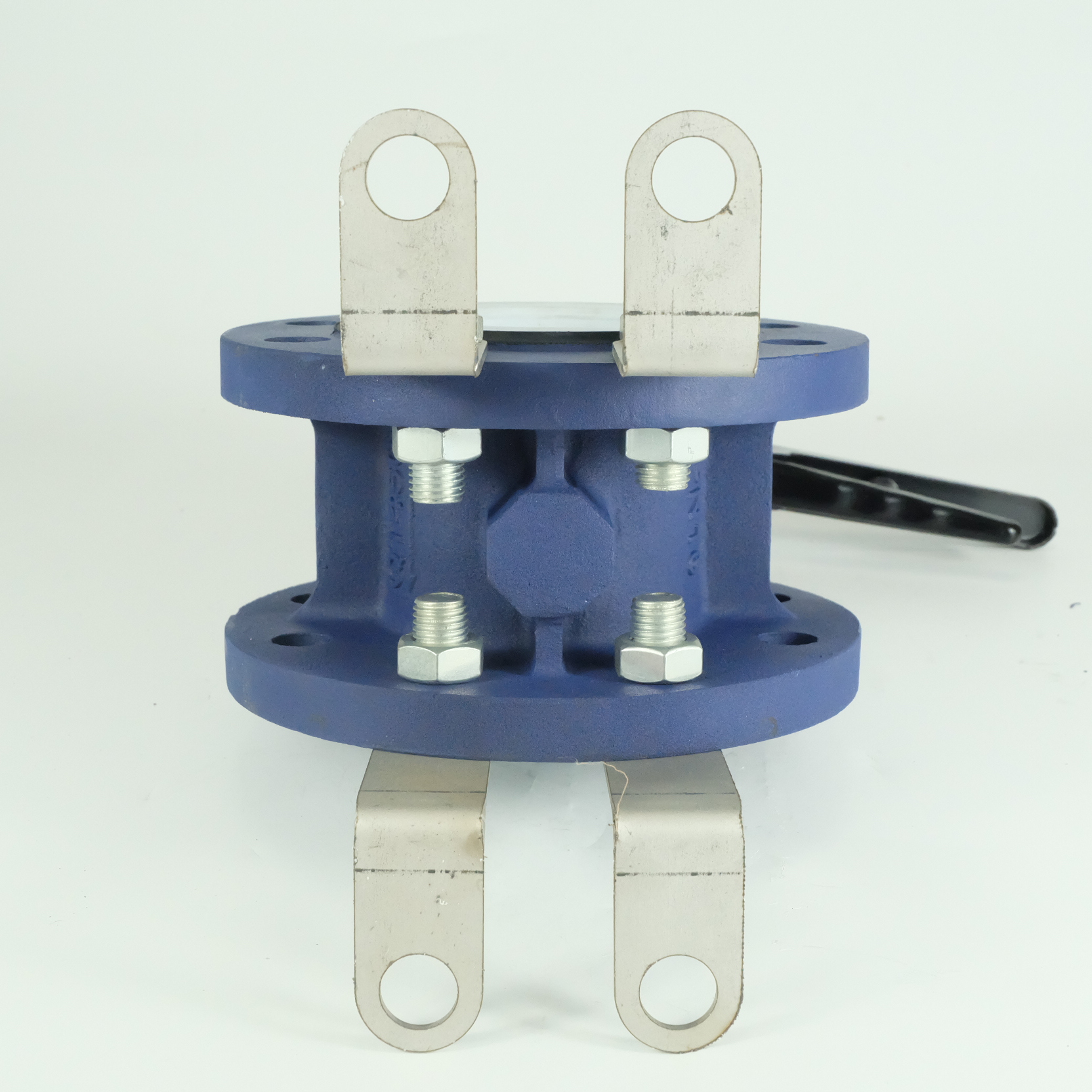

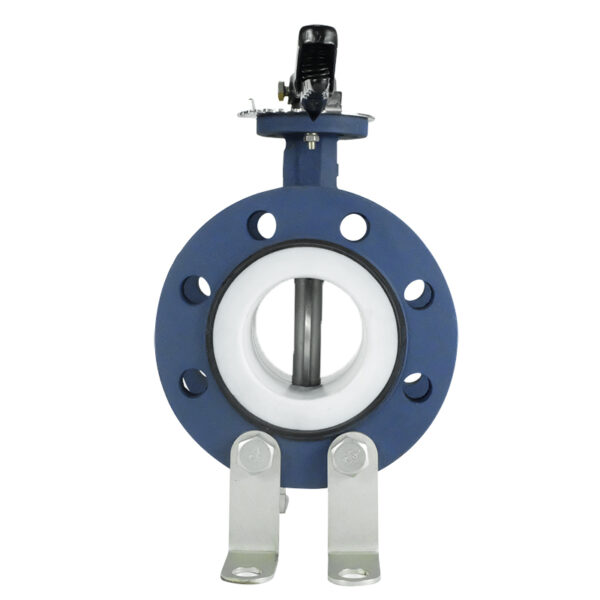

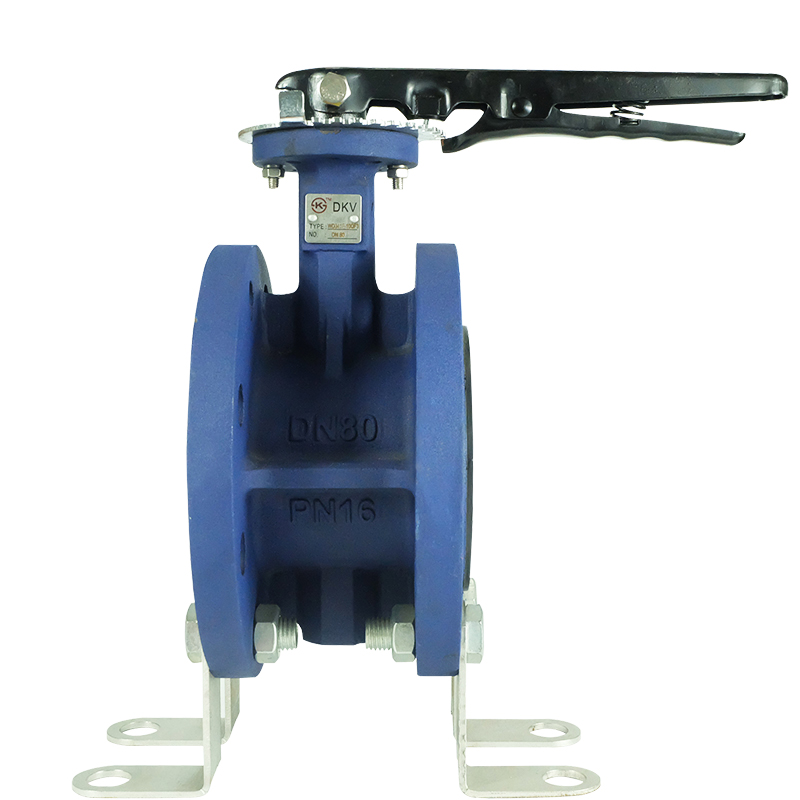

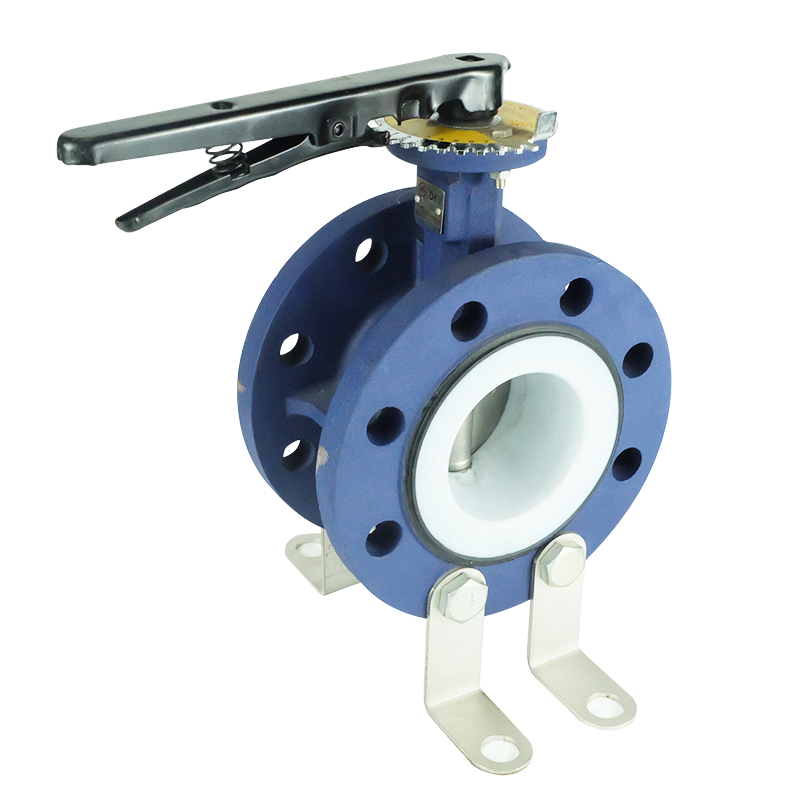

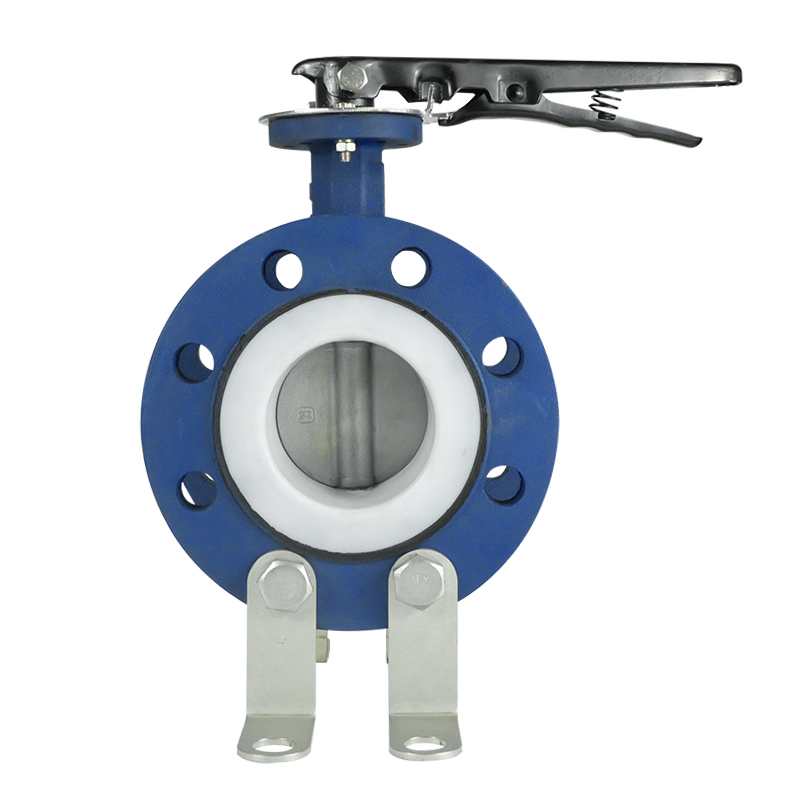

D341X Flanged Butterfly Valve
The D341X Flanged Butterfly Valve is a rubber-lined, concentric valve designed for regulating or shutting off fluid flow in applications such as water supply, chemical processing, and the food industry.

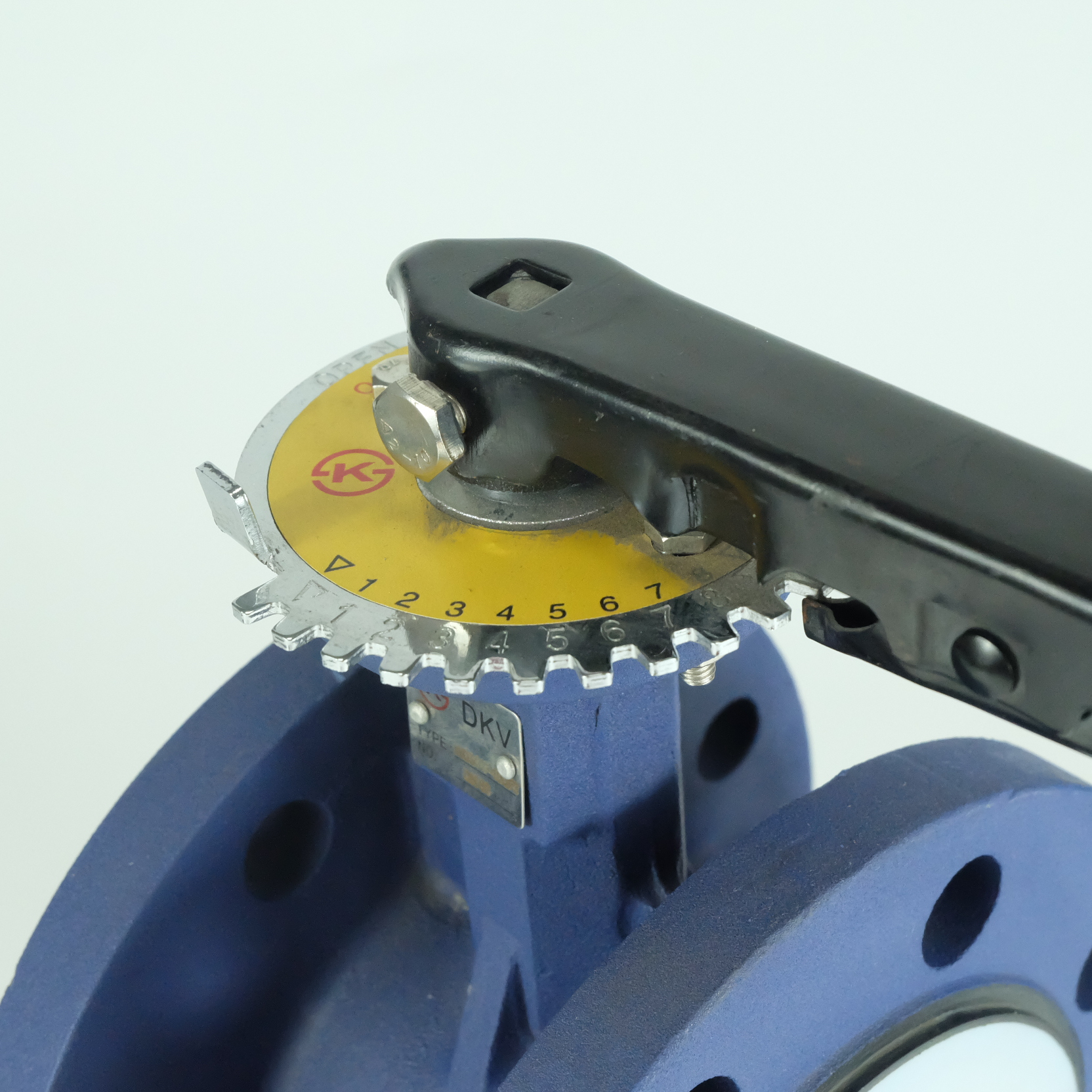

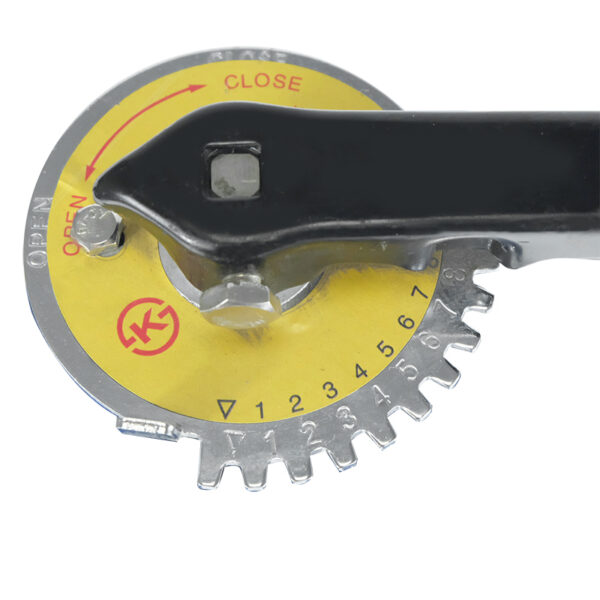

The designation “D341X” identifies it as a butterfly valve with a flanged connection , concentric design , and a rubber sealing material . Typically equipped with a simple gear or manual operator, it is well-suited for low-pressure, moderate-temperature applications up to 120°C.
item | value |
Application | General |
Port Size | DN50-DN1200 |
Place of Origin | China |
Power | Manual |
Temperature of Media | Normal Temperature |
Brand Name | DKV |
Structure | BUTTERFLY |
Media | Water |
Customized support | OEM, ODM |
Body material | Ductile Iron GG25/GGG50 |
Stem | Carbon Steel |
Seat | EPDM, NBR, FRM, PTFE |
Working pressure | PN10/16 150LB 5K/10K |
Working Temperature | -10℃-140℃ |
Medium | Water, liquid, gas, oil, powder, steam and other media |
Disc | stainless Steel |
