DKV Stainless Steel Wafer Ball Valve
The DKV Stainless Steel Wafer Ball Valve is a compact, high-performance valve designed for tight installation spaces and industrial pipelines requiring reliable flow control.
Manufactured from stainless steel 304 or 316, it provides excellent corrosion resistance, leak-free sealing, and long service life even under high-pressure and high-temperature conditions.
Featuring a wafer-style body for easy installation between flanges, it supports bidirectional flow and ensures smooth operation with minimal torque.
Ideal for water, steam, oil, gas, and chemical systems, this valve combines precision machining with robust construction to deliver consistent performance in demanding environments.
Outline and Connecting Measurememt

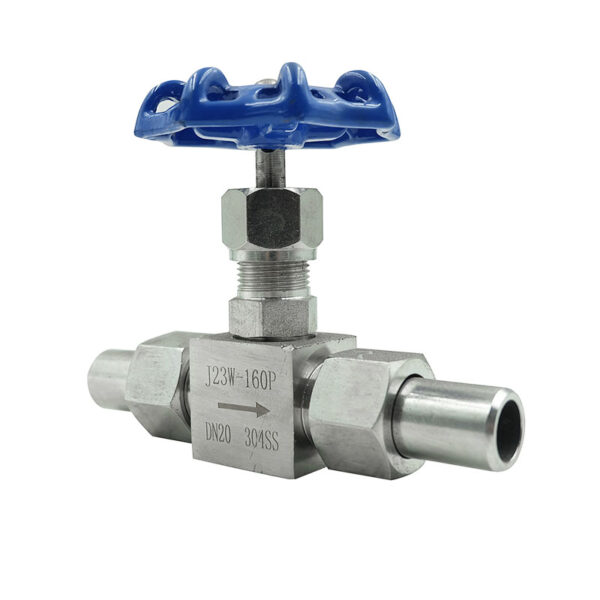

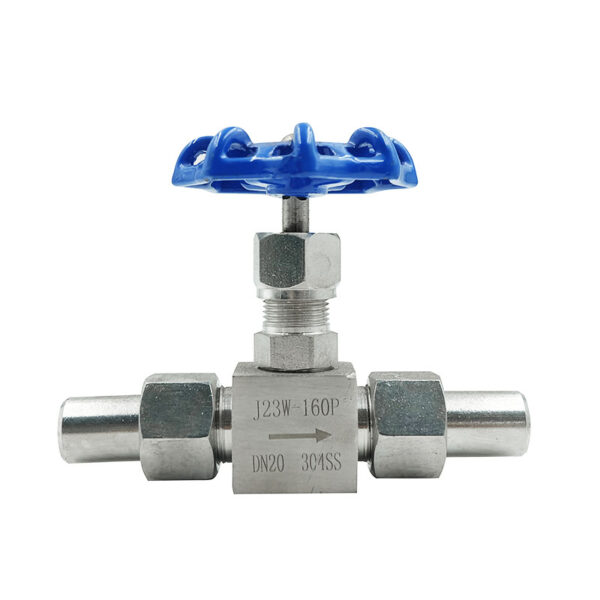

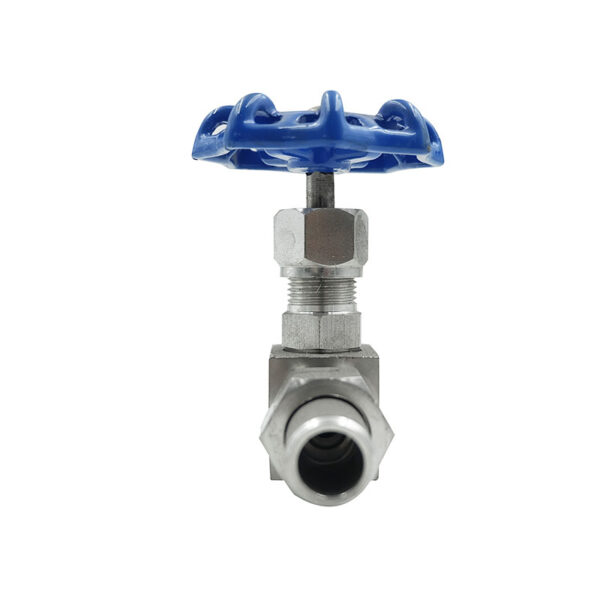

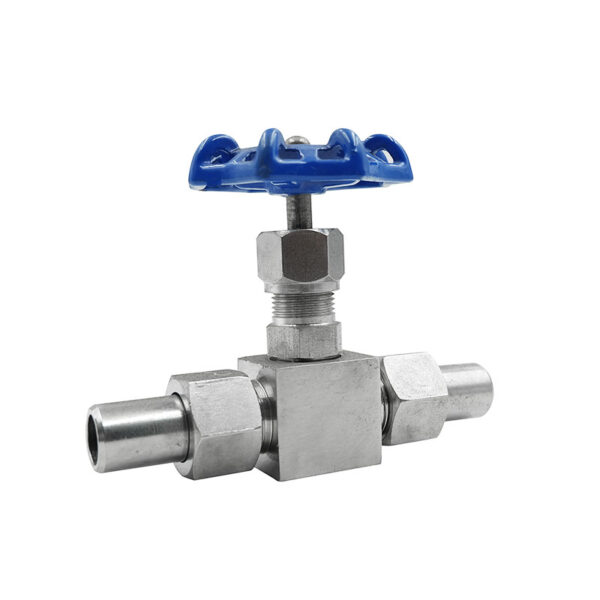

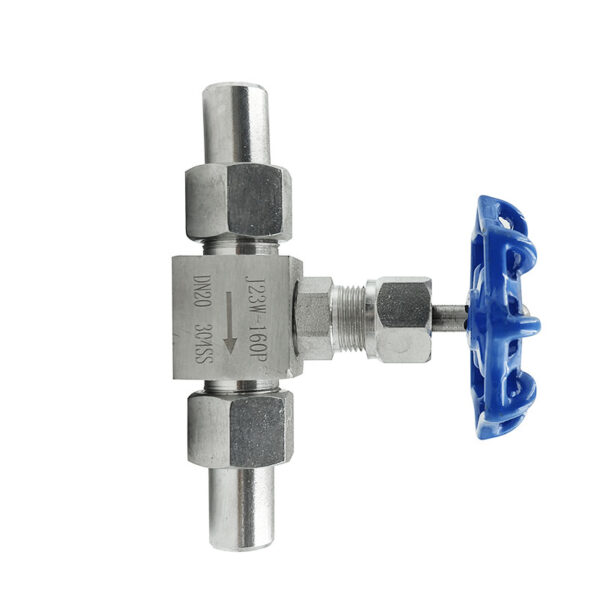

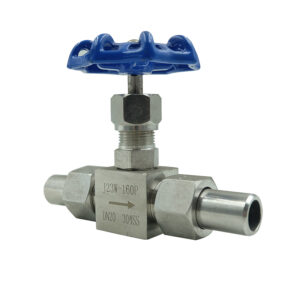

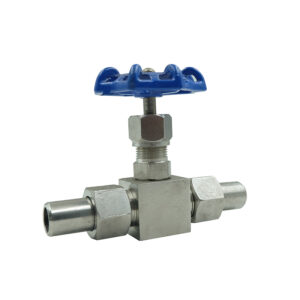

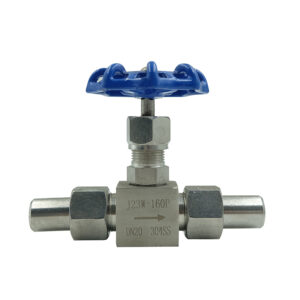

Model: J23W
Body Material: Stainless Steel 304/316L
Gasket Material: PTFE
Size: DN6 to DN25
Connection: Butt Welded Pipe with Male Thread
Working Pressure: up to 6000Psi(414bar)
Temperature range: -29 to 570°C
Application: Water,oil, Gas, Non-Corrosive Media
| Nominal diameter DN(mm) | Pipe Thread | Dimensions | Weight(Kg) | ||||
| Do | L | H | H1 | d | |||
| 6 | 1/4 | 60 | 55 | 90 | 100 | 4 | 0.63 |
| 10 | 3/8 | 60 | 60 | 92 | 102 | 5 | 0.65 |
| 15 | 1/2 | 65 | 65 | 97 | 107 | 6 | 0.8 |
| 20 | 3/4 | 80 | 80 | 109 | 121 | 8 | 1.07 |
| 25 | 1 | 100 | 90 | 122 | 132 | 10 | 1.8 |
| 32 | 11/4 | 140 | 128 | 180 | 191 | 15 | 5.0 |
| 40 | 11/2 | 160 | 148 | 200 | 215 | 18 | 7.2 |
|
Item
|
Ball Valve
|
|
Application
|
General
|
|
Place of Origin
|
Guangdong China
|
|
Power
|
Manual
|
|
Customized Support
|
OEM
|
|
Port Size
|
DN6-DN25
|
|
Warranty
|
1 year
|
|
Model Number
|
J23W-160P
|
|
Temperature of Media
|
Normal Temperature
|
|
Brand Name
|
DKV
|
|
Media
|
Water
|
|
Body Material
|
Stainless Steel 304/316/316L
|
|
Connection
|
Butt Welded Pipe with Male Thread
|
|
Working Pressure
|
≤6000Psi(414bar)
|
|
Work Temperature
|
-29℃~+538℃
|
|
Medium
|
Water, Oil, Gas and Corrosive and Non-Corrosive Media
|
|
Seal Material
|
PTFE
|
