Description

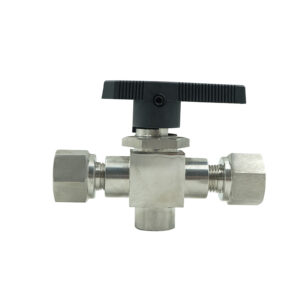

The DKV 3-Way Ball Needle Valve integrates the flow-switching capability of a 3-way ball valve with the precise metering control of a needle valve. The ball’s internal orifices direct the medium through three ports, while the finely tapered needle stem allows accurate flow regulation and smooth adjustment. Engineered for precision, reliability, and durability, it ensures stable performance in demanding fluid and gas control applications.
Parameters of 3-Way Ball Valves / Needle Valves
There are no universal standards for 3-way ball or needle valve parameters, as they vary depending on brand, model, application environment, and materials. Key specifications typically include: bore size, connection type, port configuration, ball/trim material, body material, seat material, nominal pressure, operating temperature, connection dimensions, and sealing material. When selecting a 3-way ball or needle valve, it is essential to choose parameters based on the specific application requirements and refer to the supplier’s datasheet for details.

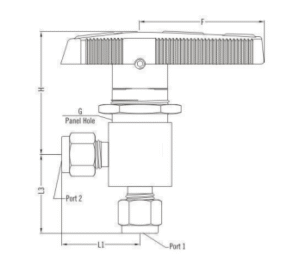

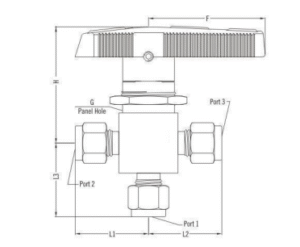

Outline and Connecting Measurememt
|
Item
|
Ball Value
|
|
Application
|
General
|
|
Port Size
|
3mm-12mm
|
|
Warranty
|
1 year
|
|
Place of Origin
|
Guangdong China
|
|
Model Number
|

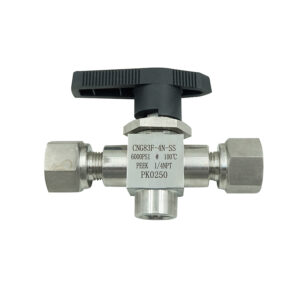

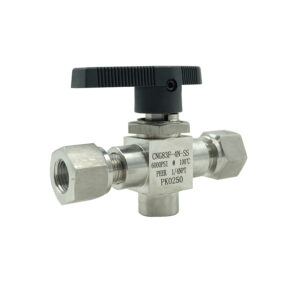

CNG83F-4N-SS
|
|
Power
|
Manual
|
|
Temperature of Media
|
Low Temperature, Medium Temperature, Normal Temperature
|
|
Brand Name
|
DKV
|
|
Media
|
Water
|
|
Customized Support
|
OEM
|
|
Body Material
|
Stainless Steel 304/316L
|
|
Work Temperature
|
-54 C to 232° C
|
|
Medium
|
Oil, Water, Gas and Other Non-Corrosive or Corrosive Media
|
|
Working Pressure
|
6000PSI
|
|
Connection
|
Female NPT
|
|
Seal Material
|
PTFE/ PEEK/PCTFE
|
Product Details
