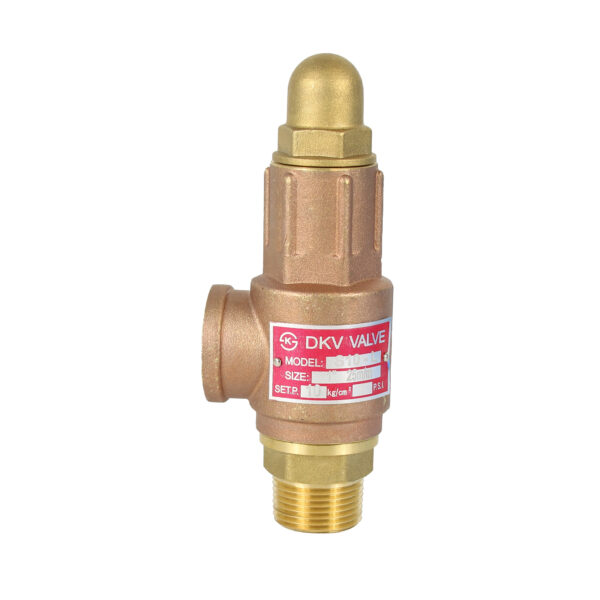

DKV Brass Safety Valve
The DKV Brass Safety Valve is constructed from high-quality brass, offering excellent corrosion resistance and long-lasting durability.
Its robust design and reliable sealing ensure dependable performance under pressure. Ideal for boilers, pipelines, and HVAC systems, this valve is a trusted solution for protecting your system and maintaining safe, stable operation.
Outline and Connecting Measurememt
|
NO |
Name of part |
Material |
|
1 |
Cap |
Brass |
|
2 |
Spindle |
Brass |
|
3 |
Adjust Screw |
Brass |
|
4 |
Nut |
Brass |
|
5 |
Gasket |
PTFE |
|
6 |
Body |
Brass |
|
7 |
Spring |
50CrVA |
|
8 |
Spring Seat |
Brass |
|
9 |
Disc |
Brass |
|
10 |
Valve Seat |
Brass |
| Size | P1(Inlet) | D (Seat dia) |
P2 Outlet | Lift | L1 | L2 | H1 | H2 |
| 1/2″ | 1/2″ | 13 | 1/2″ | 0.52 | 32 | 52 | 162 | 140 |
| 3/4″ | 3/4″ | 19 | 3/4″ | 0.76 | 36 | 58 | 172 | 150 |
| 1″ | 1″ | 25 | 1″ | 1.00 | 40 | 71 | 204 | 185 |
| 1-1/4″ | 1-1/4″ | 32 | 1-1/4″ | 1.28 | 52 | 83 | 223 | 208 |
| 1-1/2″ | 1-1/2″ | 38 | 1-1/2″ | 1.52 | 58 | 96 | 252 | 236 |
| 2″ | 2″ | 50 | 2″ | 2.00 | 65 | 103 | 287 | 265 |

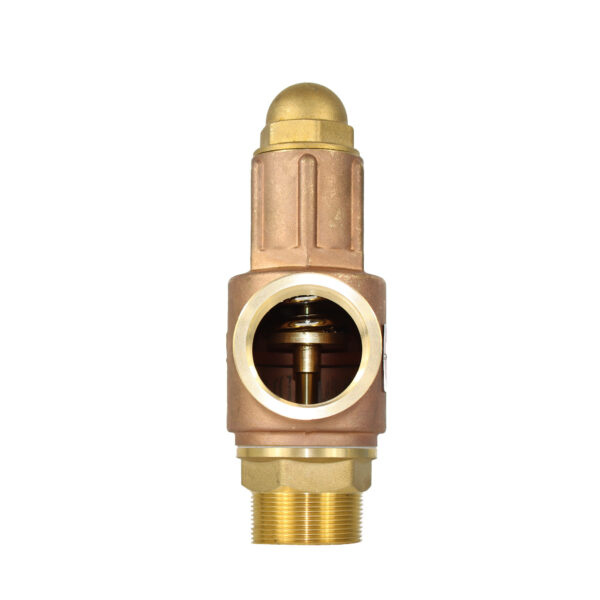

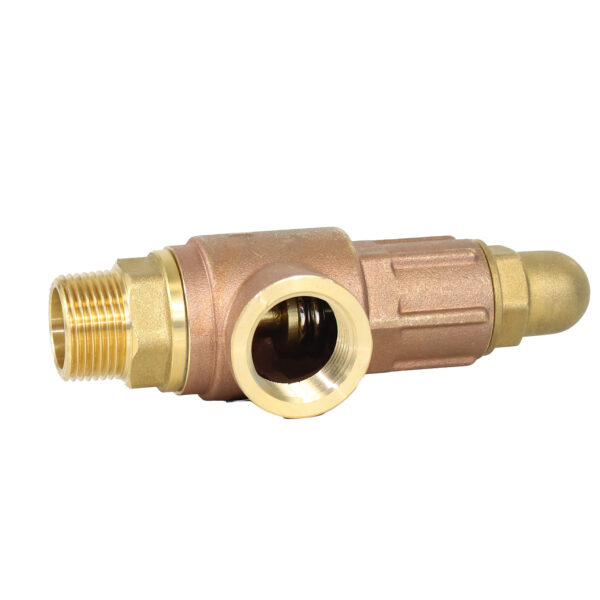

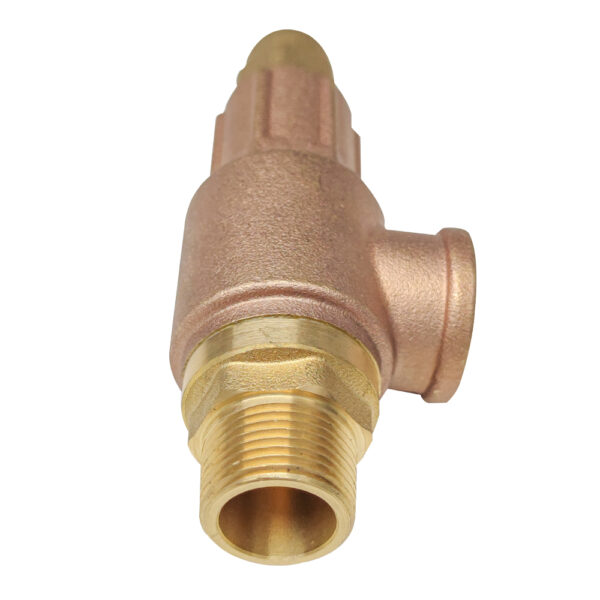

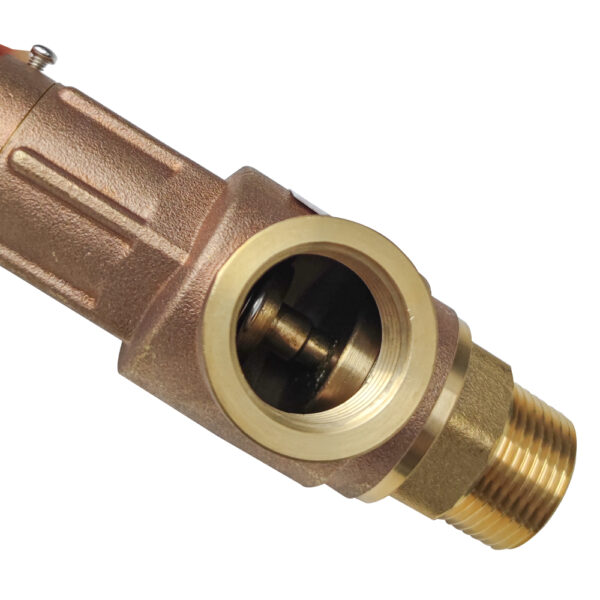

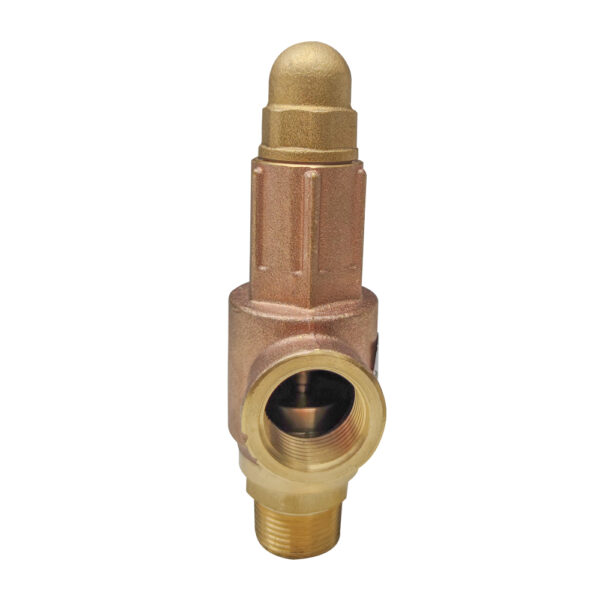

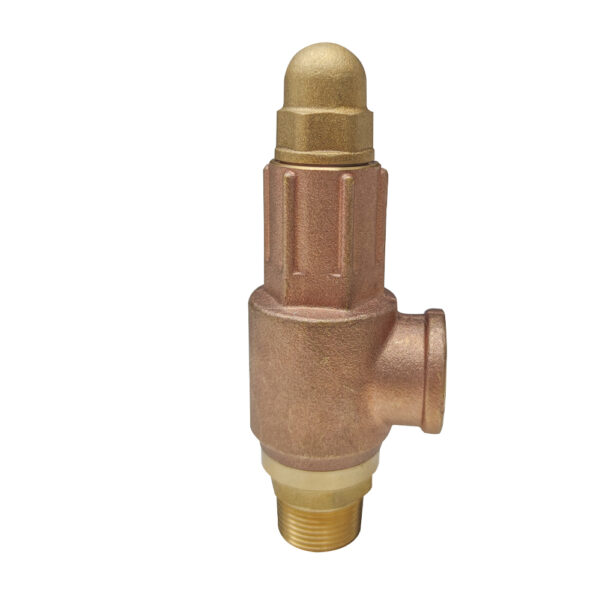

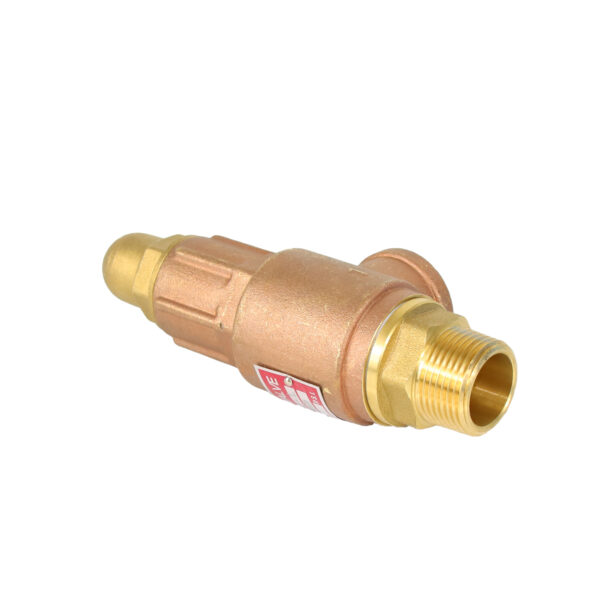

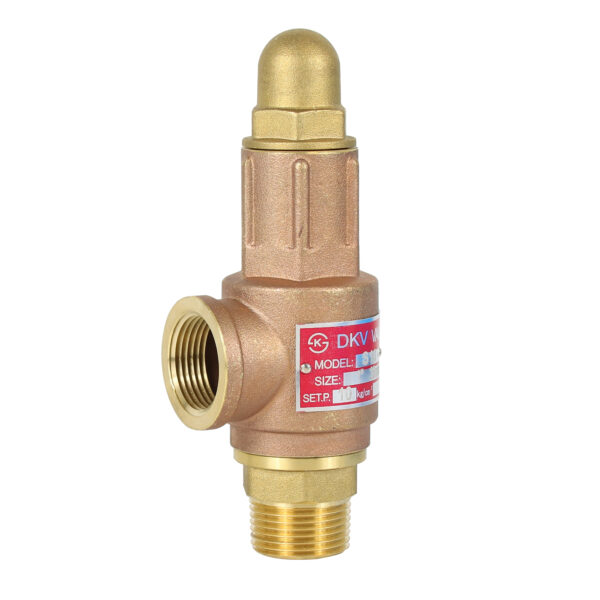

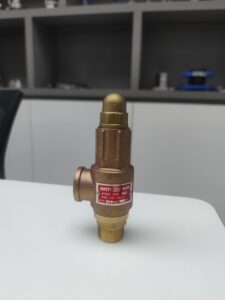

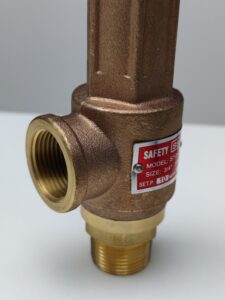

Detail Pictures
