Description

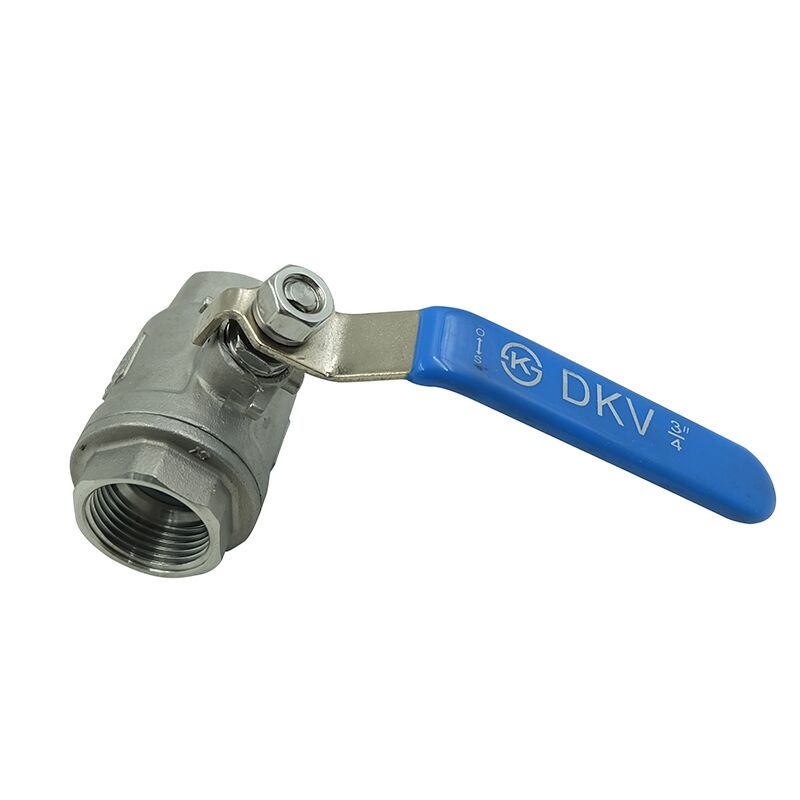

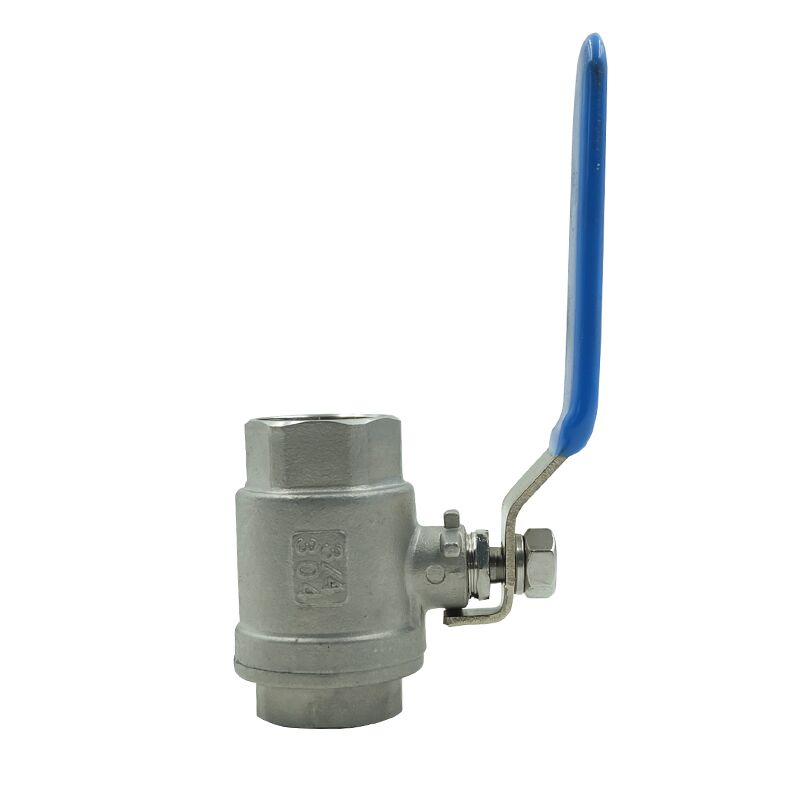

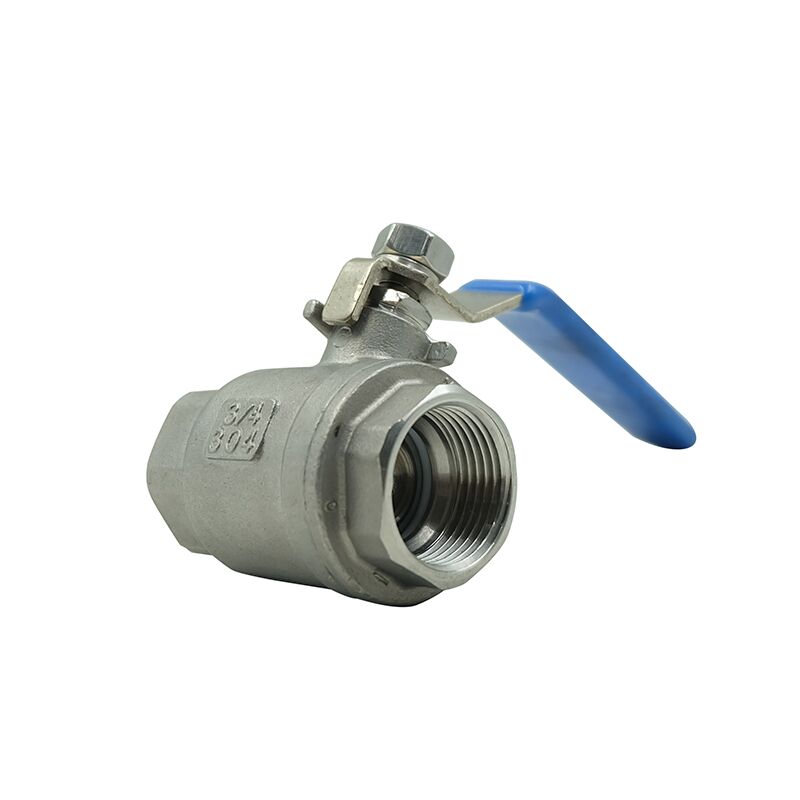

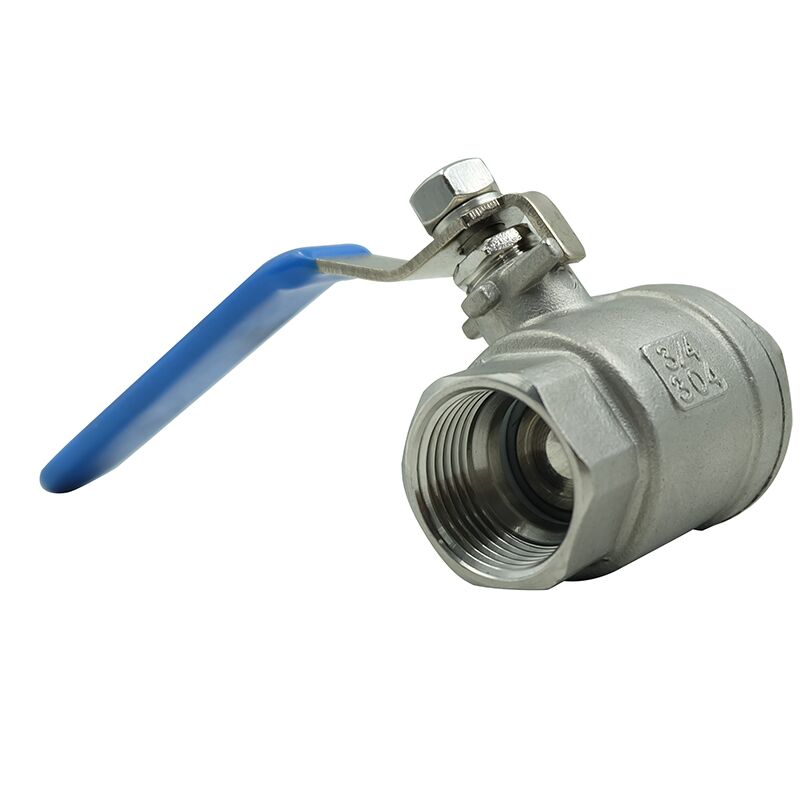

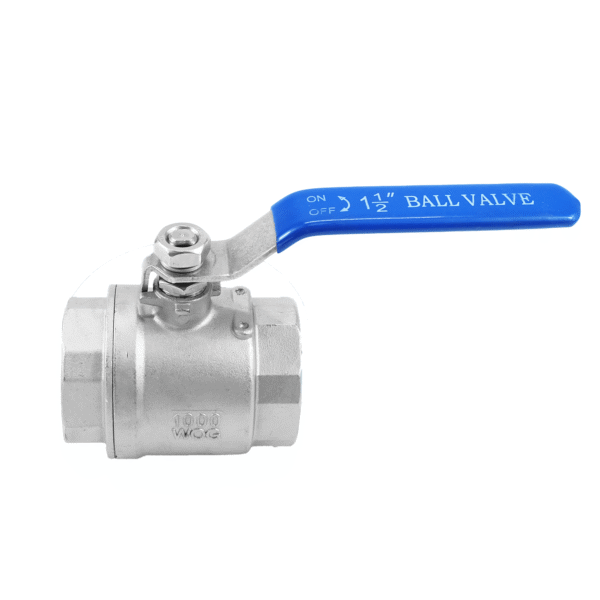

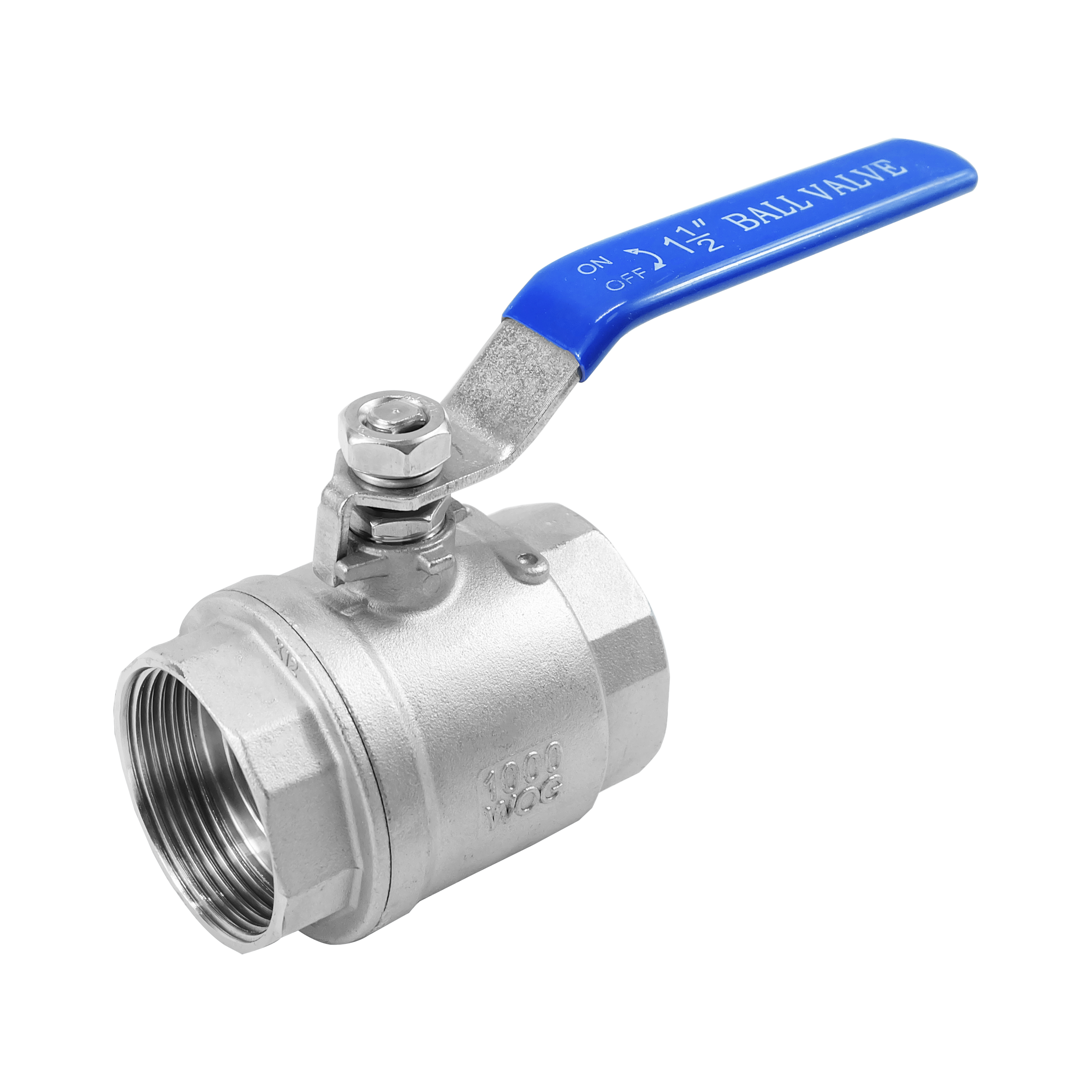

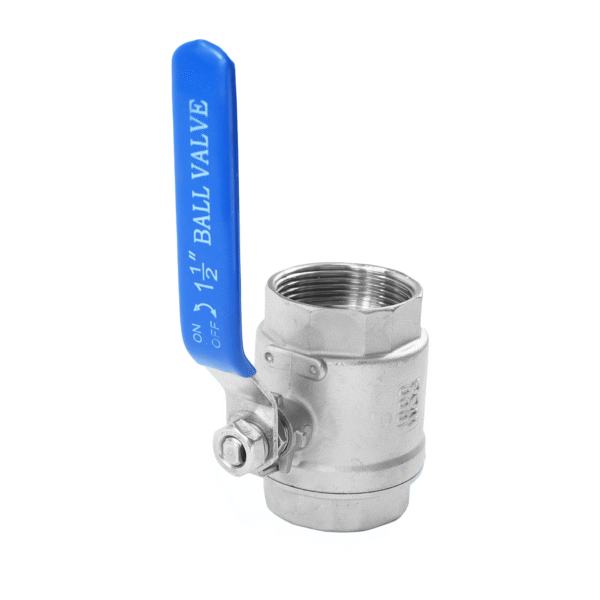

DKV 2-Piece Stainless Steel Ball Valve features PTFE seats and seals, providing excellent corrosion resistance and reliable performance across a wide range of applications.
Suitable for water, oil, gas/air, mild alkalis, acids, biodiesel, fuels, and alcohols, this valve ensures tight sealing with zero leakage, maintaining durability even under frequent operation.
All metal components, including nuts and exterior fittings, are manufactured from premium-grade stainless steel 304 or 316.

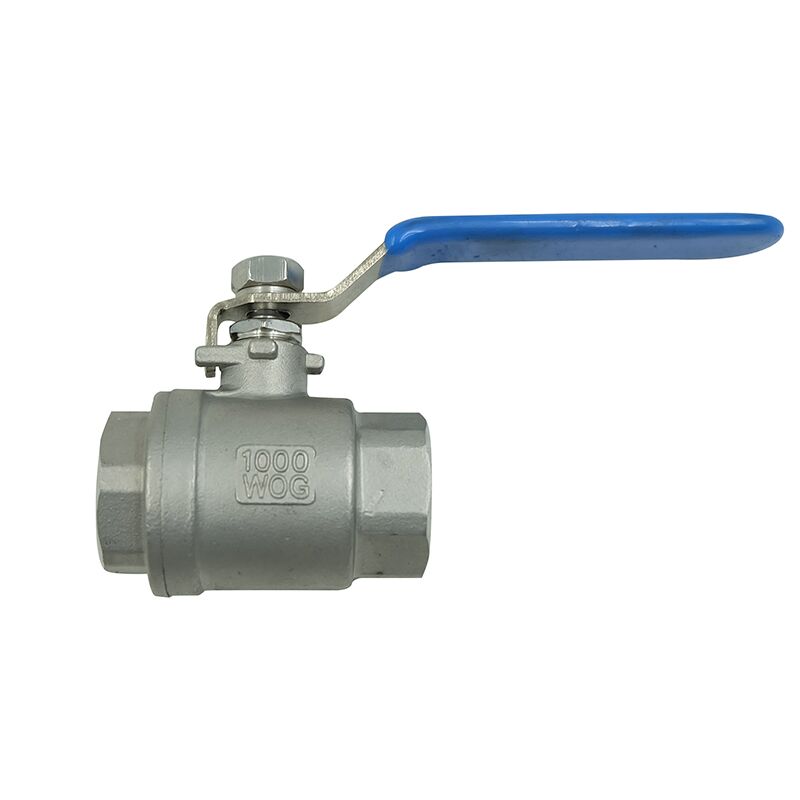

The WOG1000 series is specifically engineered for high-pressure and demanding industrial environments, ensuring long-term stability and performance.
Outline and Connecting Measurememt
Connection: Female Threaded BSP/NPT
Body Material: 304 Stainless Steel
Seal Material: PTFE
Bore Type: Full Bore
Pressure Rating: 1000 PSl(WOG)
Temperature Rating: -20 to 180°C
Medium: Water, Oil, Gas
| Size | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” | 2” | 2 1/2” | 3” | 4” |
| D | 11.6 | 12.7 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 |
| L | 55 | 55 | 65 | 75 | 88 | 102 | 110 | 125 | 162 | 189 | 260 |
| H | 50 | 50 | 60 | 64 | 71 | 78 | 86 | 95 | 130 | 148 | 180 |
| E | 100 | 100 | 130 | 130 | 165 | 165 | 190 | 190 | 250 | 250 | 280 |
| WT(mm） | 225 | 225 | 390 | 502 | 850 | 1502 | 2020 | 3625 | 4700 | 7700 | 1485 |

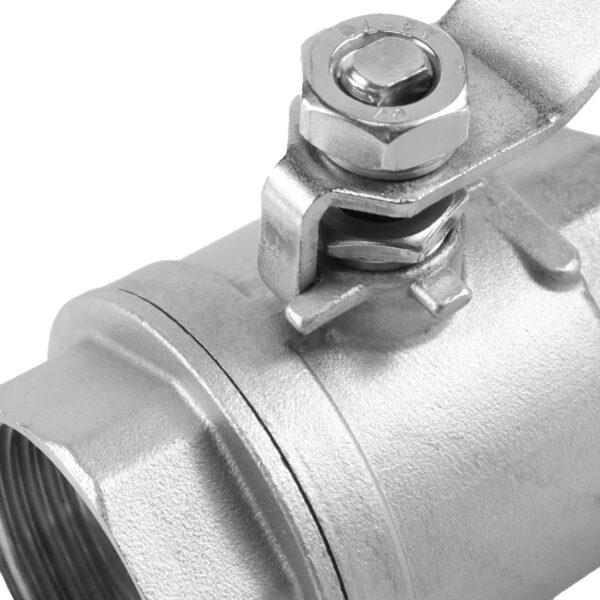

Product Details
